X940M

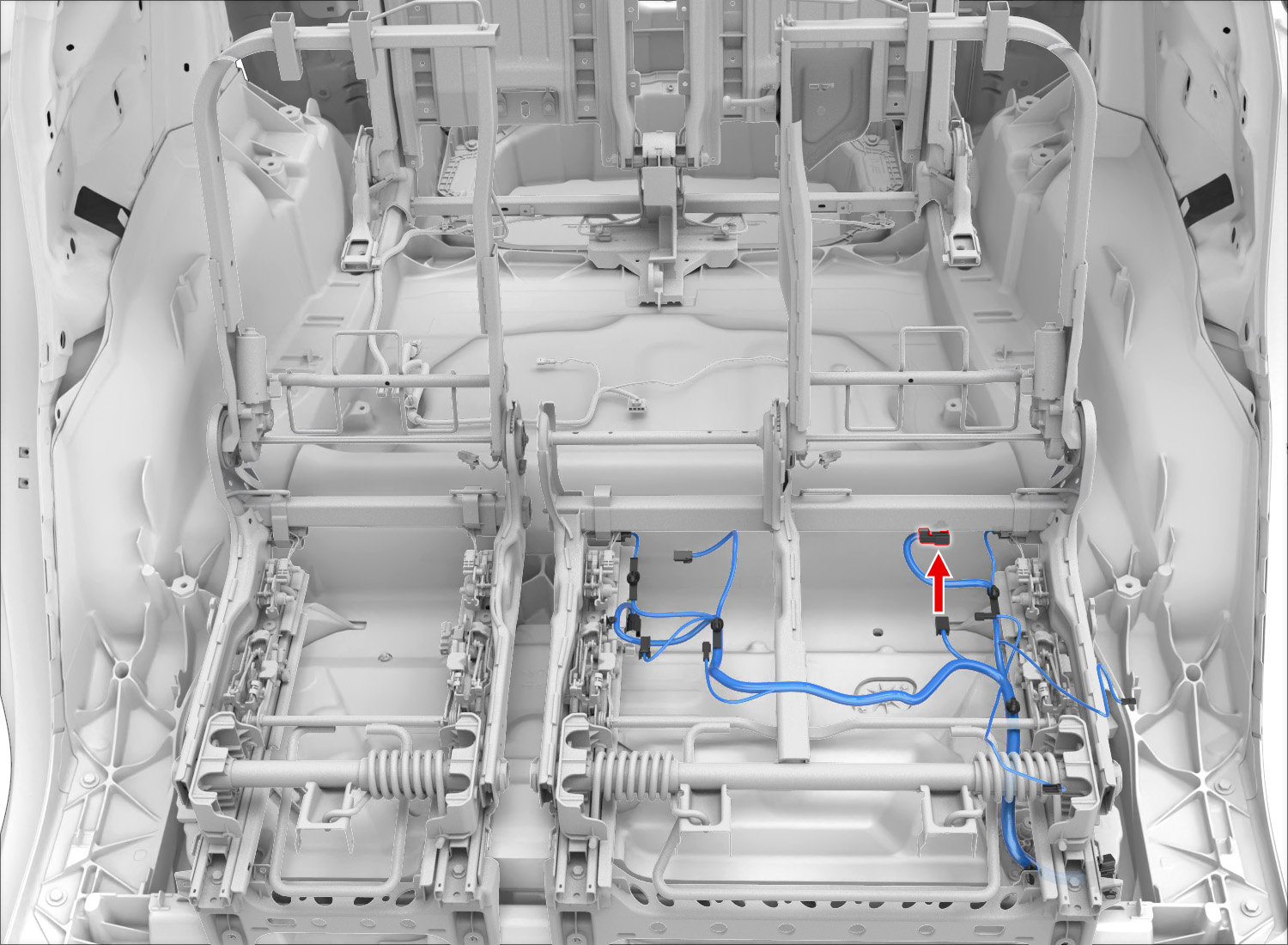

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4925 | 1.5x0.6M | VT | 0.35 | X943M | 6 | ||
| 2 | SUMITOMO | 8230-4925 | 1.5x0.6M | BN | 0.35 | ||||
| 3 | SUMITOMO | 8230-4925 | 1.5x0.6M | GY | 0.35 | X943M | 24 | ||
| 4 | SUMITOMO | 8230-4925 | 1.5x0.6M | BK | 0.50 | ||||
| 5 | SUMITOMO | 8230-4925 | 1.5x0.6M | BU | 0.35 | X943M | 8 | ||
| 6 | SUMITOMO | 8230-4923 | 1.5x0.6M | GY | 2.00 | X943M | 15 | ||
| 7 | SUMITOMO | 8230-4925 | 1.5x0.6M | RD | 0.50 | X943M | 11 | ||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | SUMITOMO | 8230-4923 | 1.5x0.6M | YE | 2.00 | X943M | 1 |
