X120

Tesla Part Number

1815599-01-A

Connector

SUMITOMO 6099-0401

Color

GY

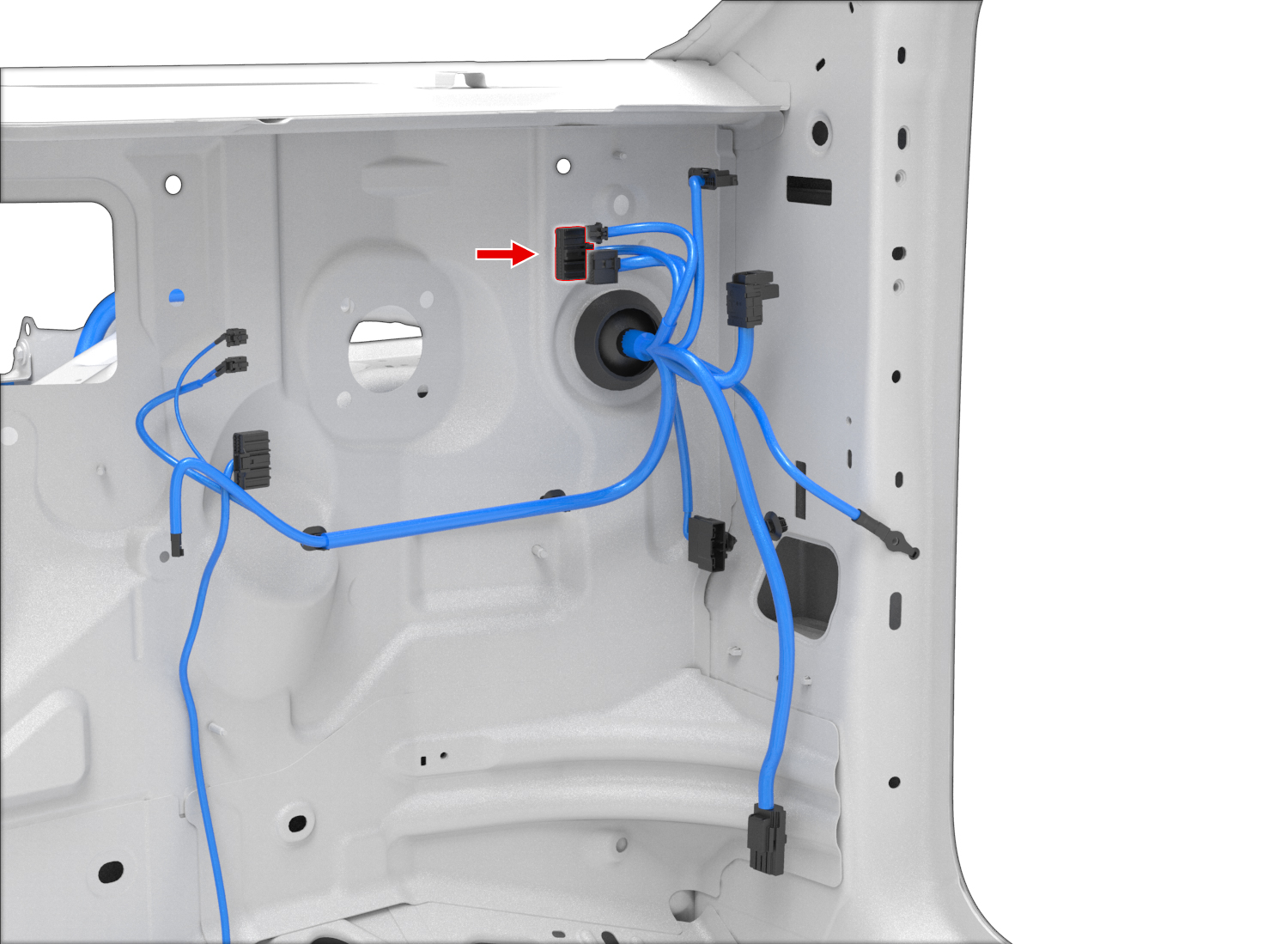

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-4932	4.8x0.8F	WH	4.00			X012	2
2
3	SUMITOMO	8100-3636	1.0x0.64F	YE/LTBU	0.35			X057	13
4	SUMITOMO	8100-3636	1.0x0.64F	YE	0.35			X057	12
5
6
7
8
9	SUMITOMO	8100-3636	1.0x0.64F	YE/LTBU	0.35			X150B	25
10	SUMITOMO	8100-3636	1.0x0.64F	YE	0.35			X150B	16
11	SUMITOMO	8100-3636	1.0x0.64F	GY	0.35			X603	2
12	SUMITOMO	8100-3636	1.0x0.64F	BN/WH	0.35			X057	23
13	SUMITOMO	8100-3636	1.0x0.64F	BN	0.35			X057	22
14
15
16	SUMITOMO	8100-3636	1.0x0.64F	YE/LTBU	0.35			X192	2
17	SUMITOMO	8100-3636	1.0x0.64F	YE	0.35			X192	3
18
19
20	SUMITOMO	8100-3636	1.0x0.64F	RD	0.35			X603	1
