X941F

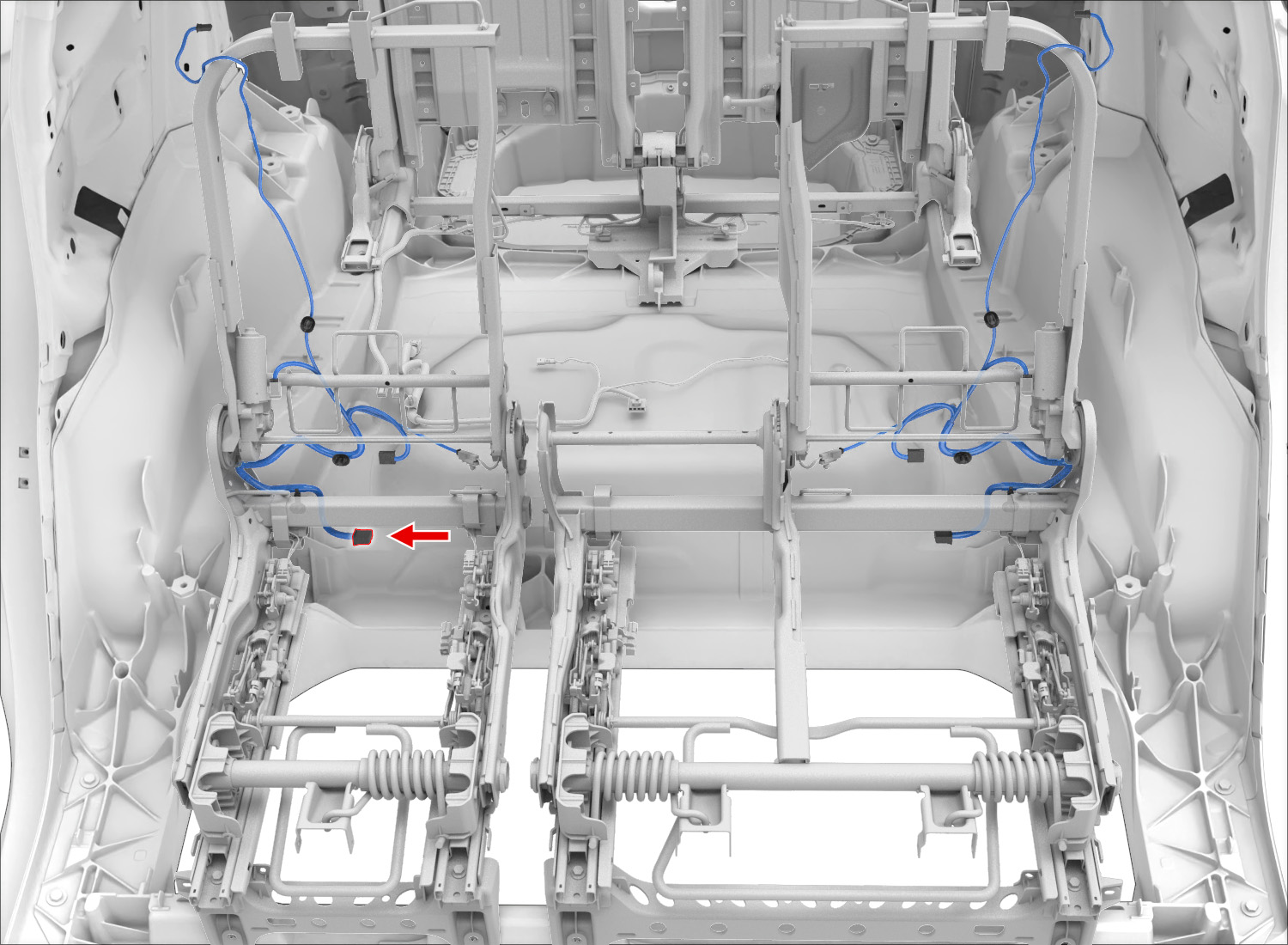

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | WH | 0.35 | X663 | 1 | ||
| 2 | SUMITOMO | 8240-0215 | 1.5x0.64F | BN | 0.35 | ||||
| 3 | SUMITOMO | 8240-0215 | 1.5x0.64F | GY | 0.35 | X643 | 1 | ||
| 4 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X677 | 1 | ||
| 5 | SUMITOMO | 8240-0215 | 1.5x0.64F | BU | 0.35 | X667 | 2 | ||
| 6 | SUMITOMO | 8240-0214 | 1.5x0.64F | GY | 2.00 | X667 | 3 | ||
| 7 | SUMITOMO | 8240-0215 | 1.5x0.64F | YE | 0.50 | X677 | 2 | ||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | SUMITOMO | 8240-0214 | 1.5x0.64F | YE | 2.00 | X667 | 1 |
