G031

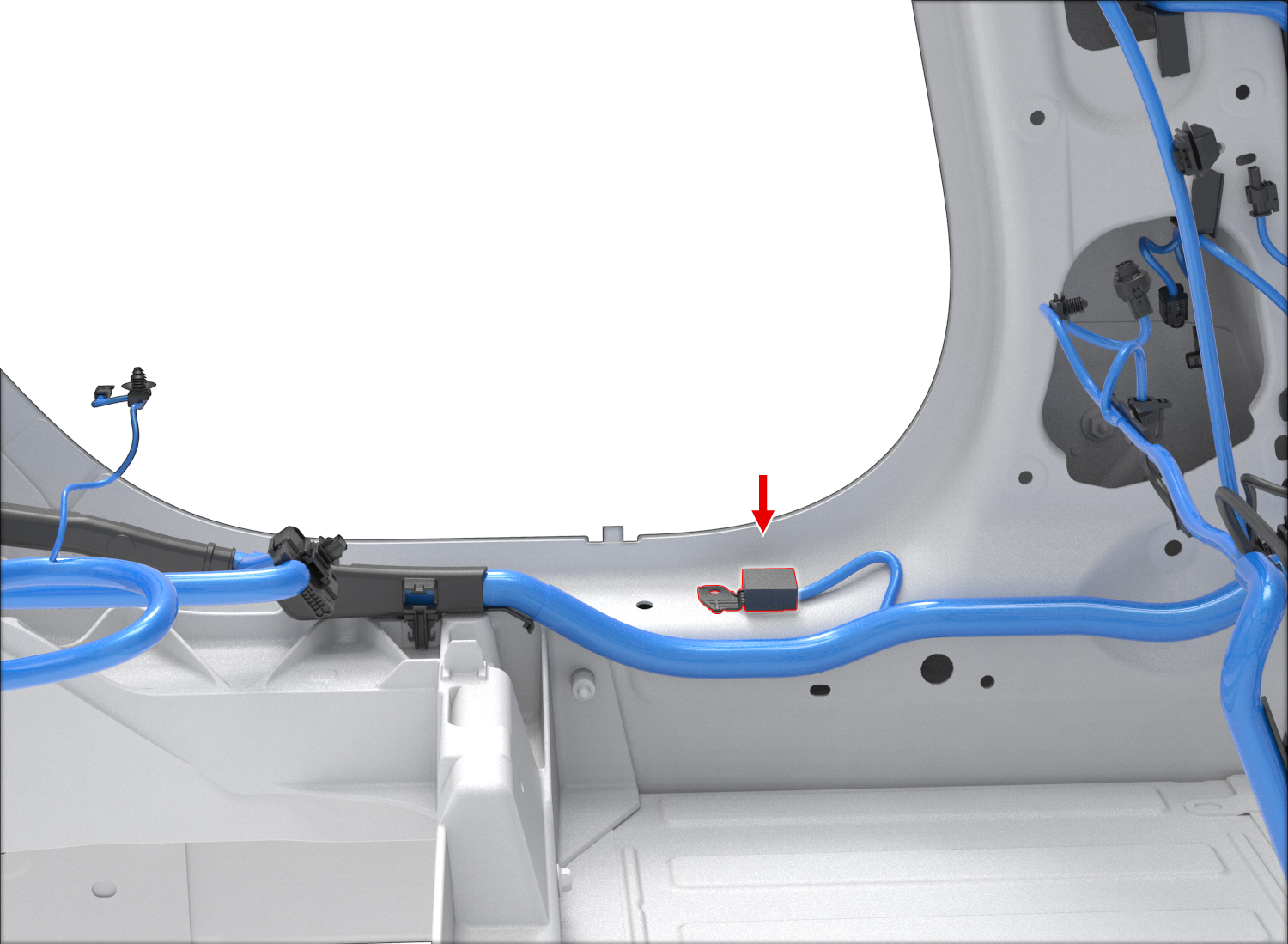

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-0782 | 4.8x0.8F | BK | 4.00 | G041 | 1 | ||
| 2 | |||||||||
| 3 | SUMITOMO | 8100-0782 | 4.8x0.8F | BK | 2.00 | X165 | 2 | ||
| 4 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X177 | 20 | ||
| 5 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X201 | 62 | ||
| 6 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X493 | 5 | ||
| 7 | |||||||||
| 8 | |||||||||
| 9 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 1.50 | X943F | 26 | ||
| 10 | |||||||||
| 11 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | X930F | 18 | ||
| 12 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X201 | 55 | ||
| 13 | |||||||||
| 14 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 1.50 | X930F | 2 | ||
| 15 |
