X981F

Tesla Part Number

1849224-00-C

Connector

KSE K20F01121

Color

NA

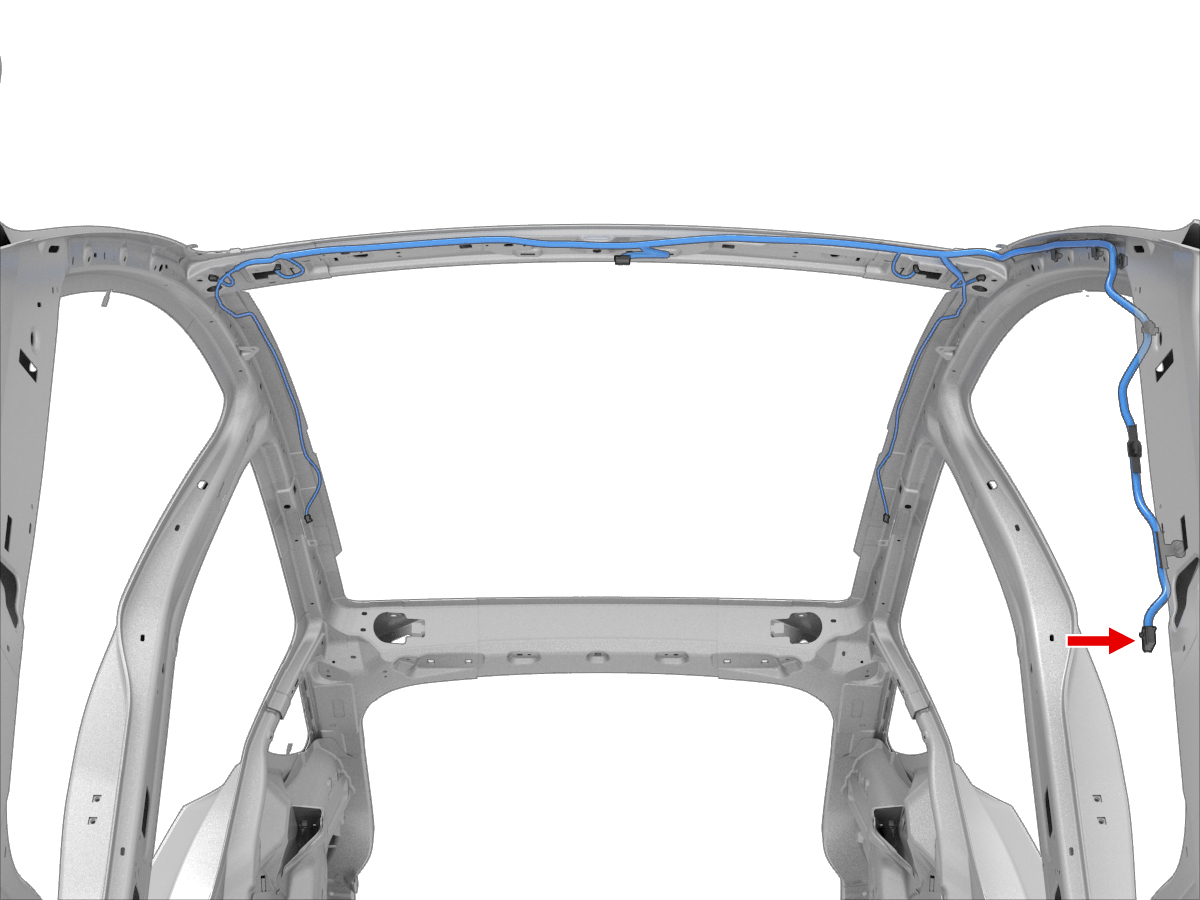

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X569	1
3	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X569	2
4
5	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X608	2
6	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X608	1
7
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X299	1
9	SUMITOMO	8100-3625	0.64x0.64F	YE/GN	0.35			X299	7
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X299	13
11
12
13	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X579	1
14	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X579	2
15	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X609	5
16	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X609	4
17
18
19
20
