X946M

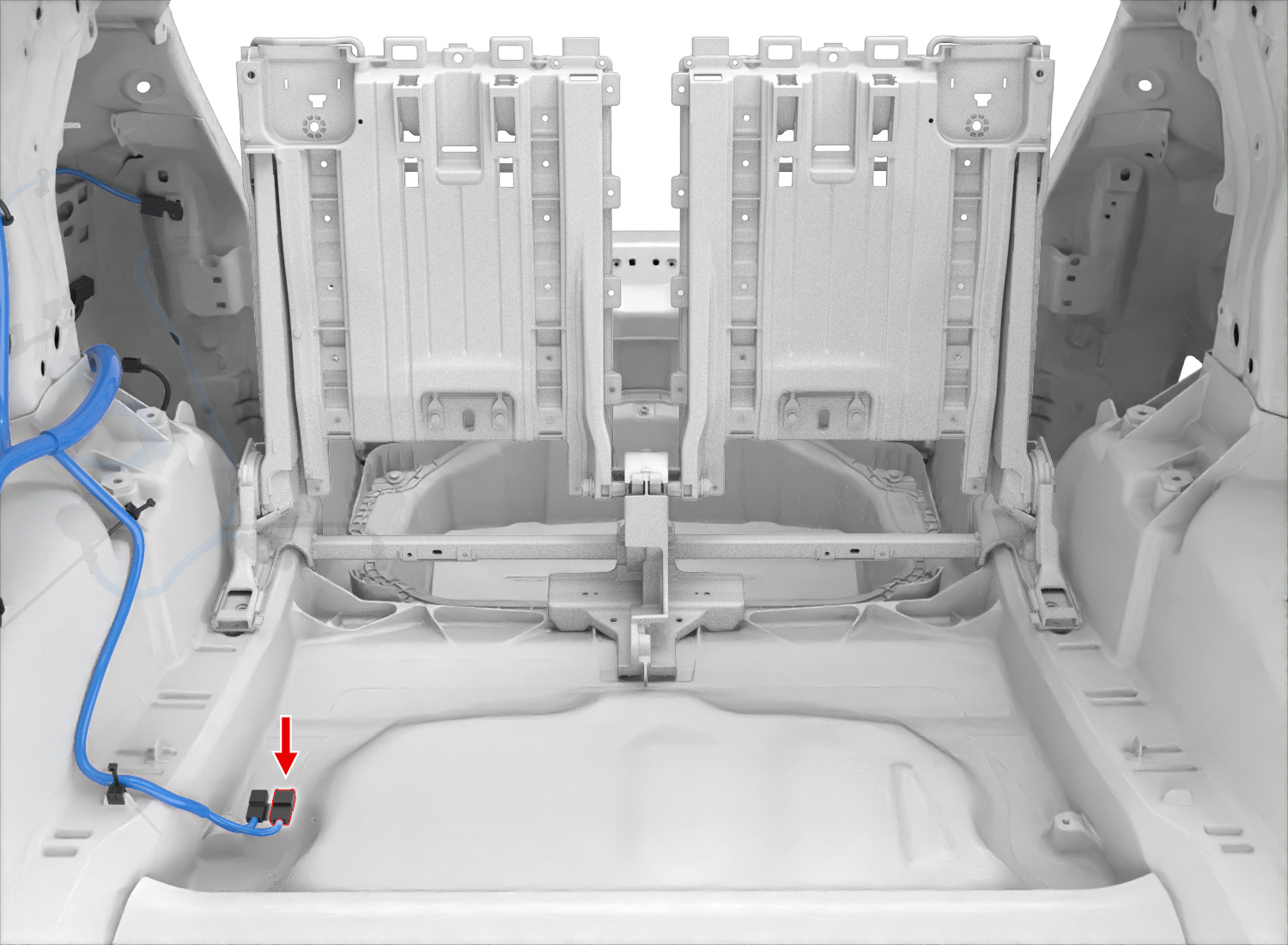

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4923 | 1.5x0.6M | VT | 2.00 | X051 | 18 | ||
| 2 | SUMITOMO | 8230-4925 | 1.5x0.6M | YE | 0.35 | X050 | 43 | ||
| 3 | SUMITOMO | 8230-4925 | 1.5x0.6M | BN | 0.35 | ||||
| 4 | SUMITOMO | 8230-4925 | 1.5x0.6M | WH | 0.35 | X050 | 22 | ||
| 5 | SUMITOMO | 8230-4925 | 1.5x0.6M | BN | 0.35 | ||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | SUMITOMO | 8230-4923 | 1.5x0.6M | BK | 2.00 | G042 | 2 |
