X943M

Tesla Part Number

1849227-00-B

Connector

KSE K30M31111

Color

NA

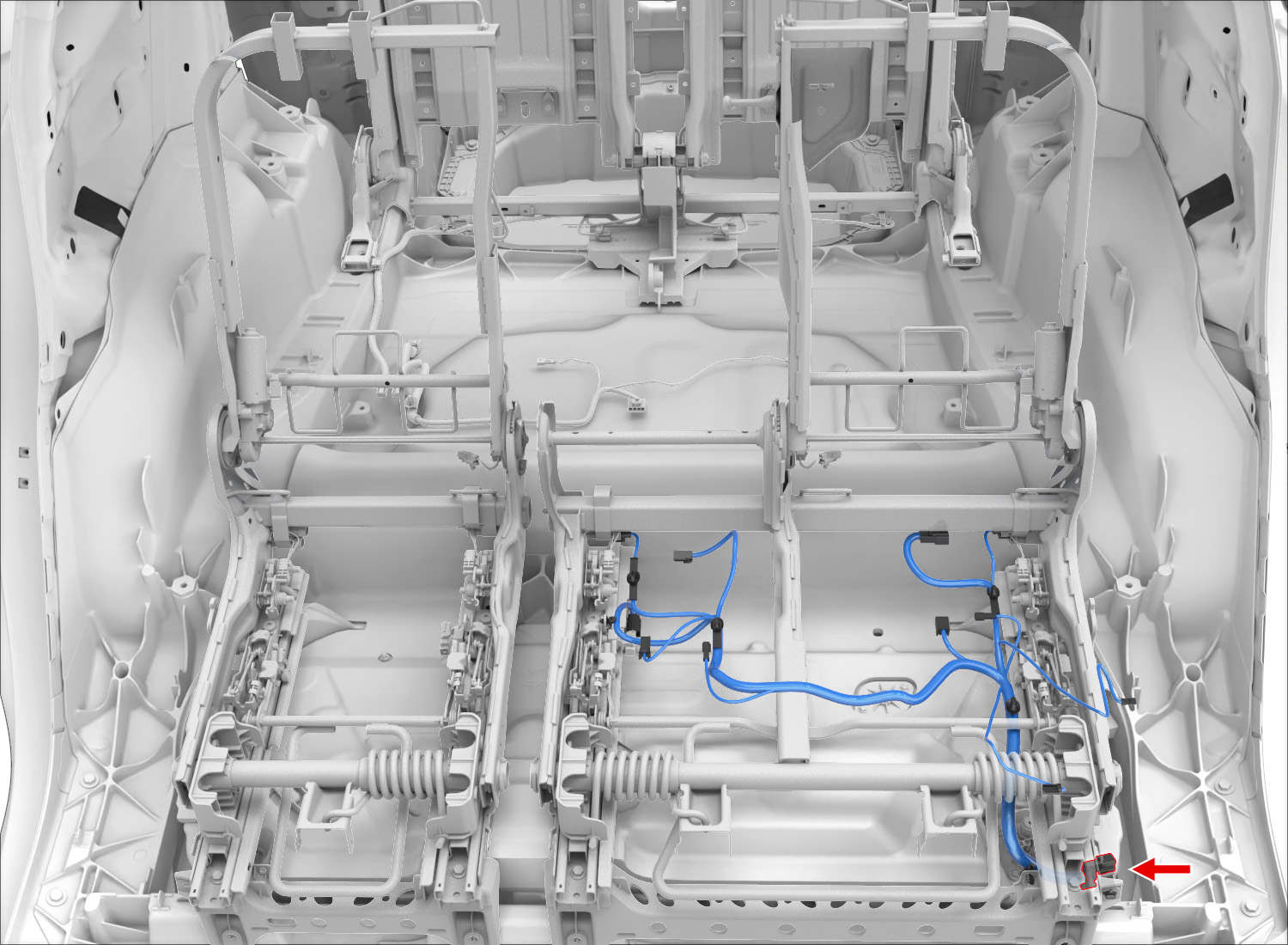

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	YE	2.00			X940M	12
2	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50			X659	1
3	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X659	2
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X666A	1
5	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X647A	1
6	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X940M	1
7	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X670A	4
8	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X940M	5
9	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X633	2
10
11	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X940M	7
12	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X632	2
13	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X673A	1
14
15	SUMITOMO	8230-4923	1.5x0.6M	GY	2.00			X940M	6
16	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X670A	5
17
18	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X675A	1
19	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X646A	1
20	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X644	2
21	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50
22
23
24	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X940M	3
25
26	SUMITOMO	8230-4924	1.5x0.6M	BK	1.00
