G012

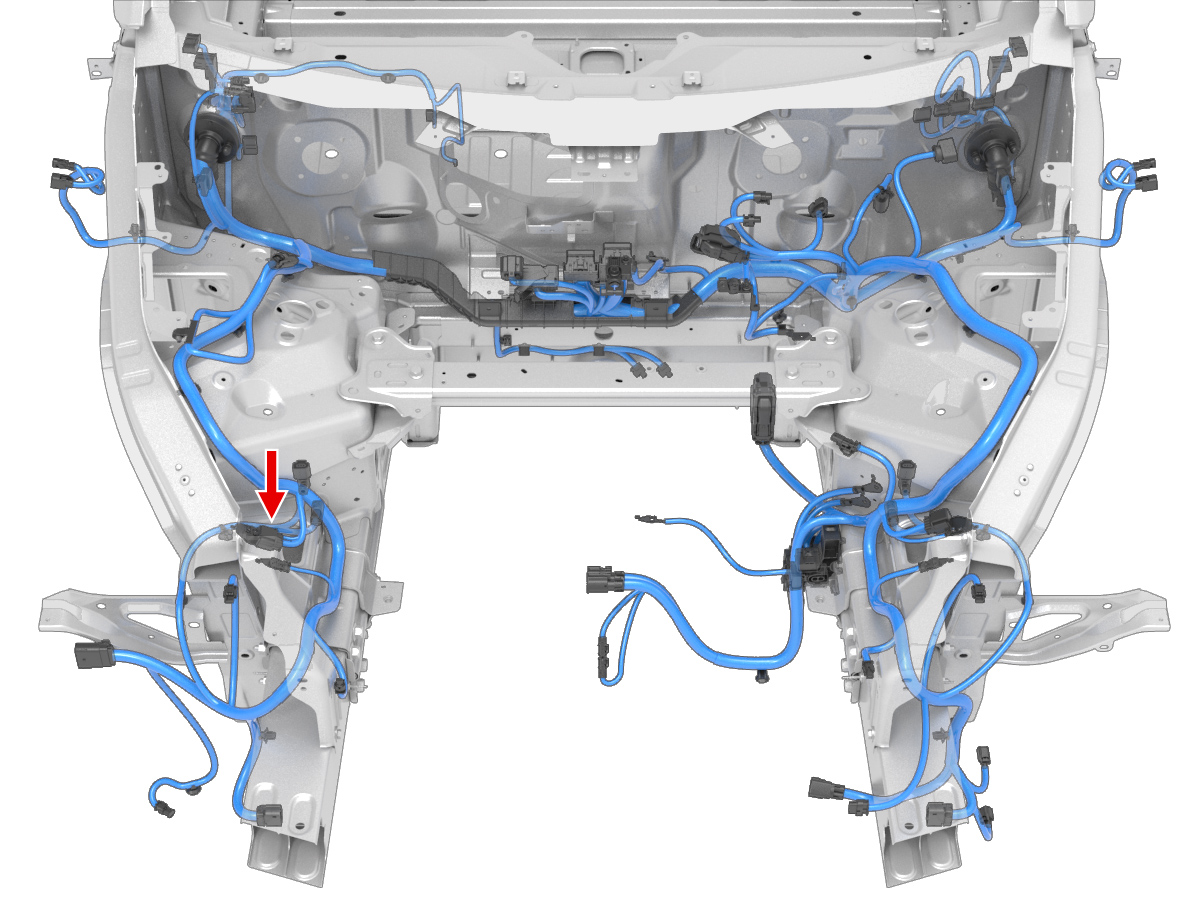

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 10780234 | 9.5FS | BK | 10.00 | DELPHI | 10889241 | G024 | 1 |
| 2 | DELPHI | 35138800 | 1.5 | BK | 0.35 | DELPHI | 13582731 | X269 | 2 |
| 3 | DELPHI | 35138800 | 1.5 | BK | 0.35 | DELPHI | 13582731 | X159B | 1 |
| 4 | |||||||||
| 5 | |||||||||
| 6 | DELPHI | 13976118 | 6.3FS | BK | 6.00 | DELPHI | 15363605 | X150B | 1 |
| 7 | |||||||||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | DELPHI | 15446674 | 2.8FS | BK | 1.00 | DELPHI | 15339967 | X261A | 2 |
| 12 | DELPHI | 15446675 | 2.8FS | BK | 2.50 | DELPHI | 15339838 | X153 | 46 |
| 13 | DELPHI | 15446675 | 2.8FS | BK | 1.50 | DELPHI | 15339838 | X304 | 2 |
| 14 | |||||||||
| 15 |
