X170A

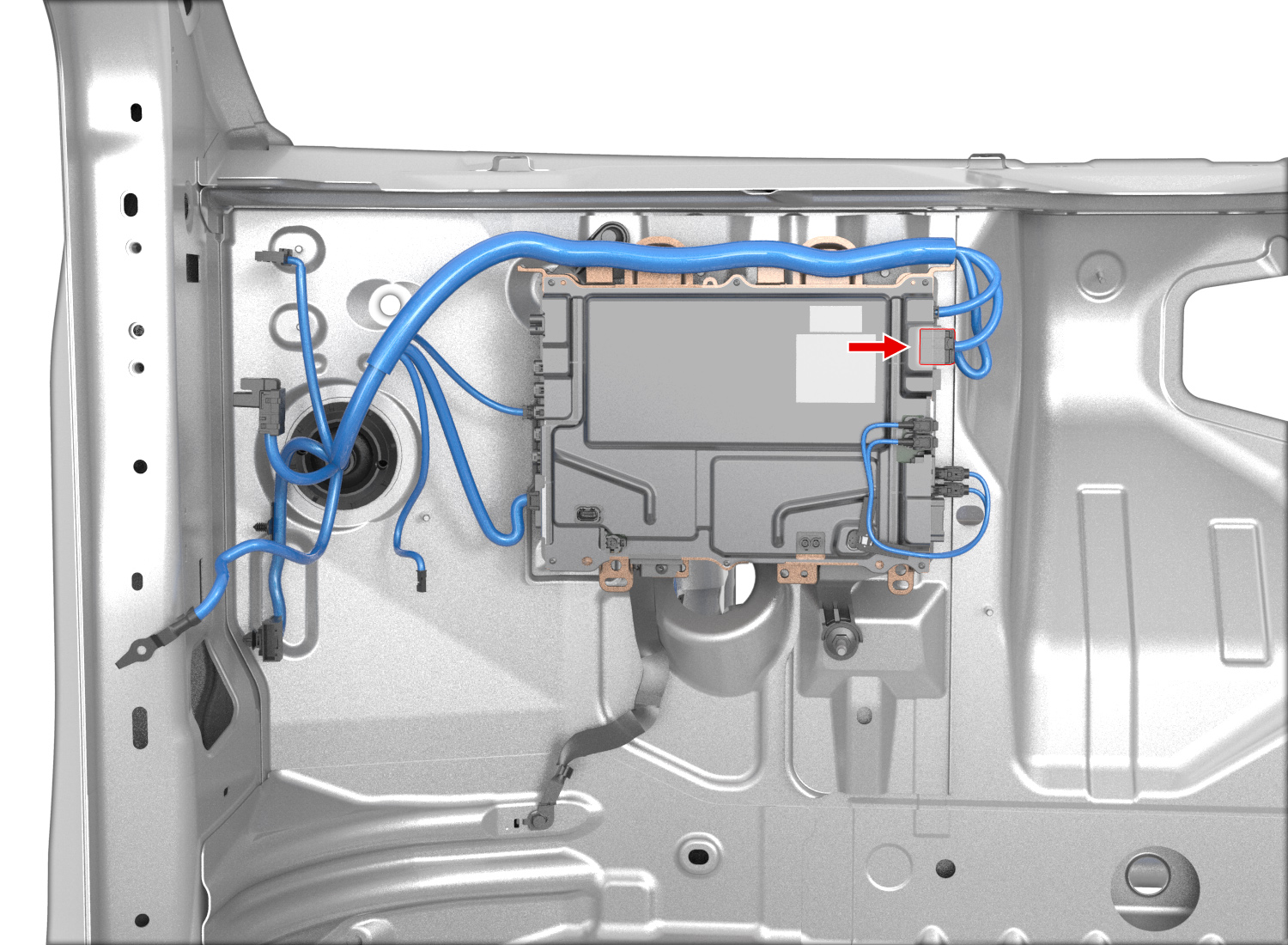

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35578191 | 0.64x0.64F | BN/WH | 0.35 | X057 | 11 | ||
| 2 | DELPHI | 35578191 | 0.64x0.64F | BN | 0.35 | X057 | 10 | ||
| 3 | |||||||||
| 4 | |||||||||
| 5 | DELPHI | 35578191 | 0.64x0.64F | VT | 0.35 | X010 | 41 | ||
| 6 | DELPHI | 35578191 | 0.64x0.64F | VT/WH | 0.35 | X010 | 40 | ||
| 7 | |||||||||
| 8 | |||||||||
| 9 | YAZAKI | 7116-4272-02 | 2.8x0.8F | WH | 2.00 | X010 | 93 | ||
| 10 | YAZAKI | 7116-4272-02 | 2.8x0.8F | RD | 2.00 | X010 | 92 |
