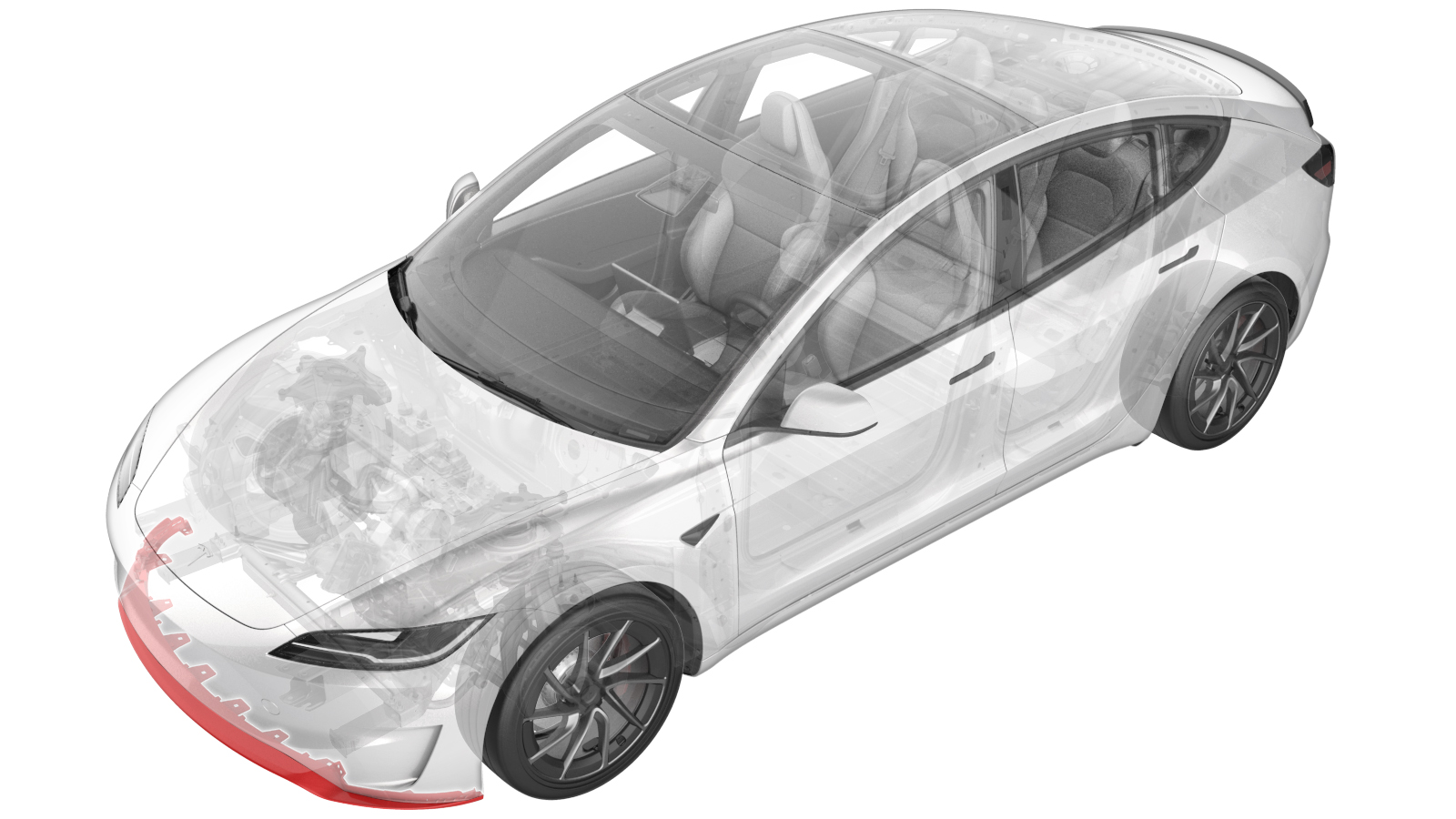

Fascia - Front - Lower (Remove and Replace)
Correction code
1001020112
FRT
0.72
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the front fascia assembly. See Fascia - Front (Remove and Replace).
-
Remove the front fascia valance assembly. See Valance - Front Fascia (Remove and Replace).
NoteIt is not necessary to remove the pedestrian warning speaker from the valance.
- Remove the lower grille. See Grille - Fascia - Front (Remove and Replace).
-

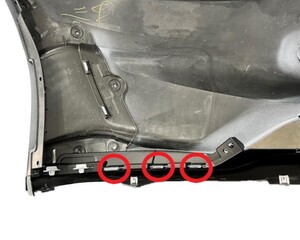

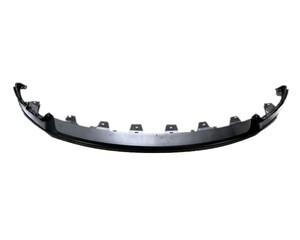

Remove the clips (x10) that attach the
front lower fascia to the front fascia, and then remove it from the vehicle.
Figure 1. LH shown, RH similar
Install
-

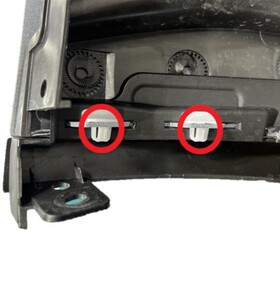

Install the clips (x10) that attach the front lower fascia to the front fascia.
NoteMake sure that all clips are fully secured.
Figure 2. LH shown, RH similar - Install the lower grille. See Grille - Fascia - Front (Remove and Replace).
- Install the front fascia valance assembly. See Valance - Front Fascia (Remove and Replace).
- Install the front fascia assembly. See Fascia - Front (Remove and Replace).
