Cover - Hood Hinge - LH (Remove and Replace)
Correction code
1133030012
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the above correction code and
FRT reflect all of the work required to perform this procedure, including
the linked procedures. Do
not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are
created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make
sure wearing proper PPE when performing the below procedure.NOTE:
See Ergonomic Precautionsfor safe
and healthy working practices.
Remove
- Open the hood.
-

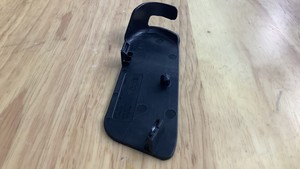

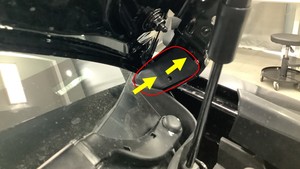

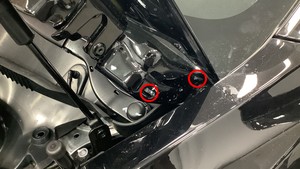

Release the clips that
attach the LH hood hinge cover to the hood hinge, and then remove the LH
hood hinge cover.
Install
-
Install the lower portion of
the cover onto the hinge, then press it up to fully seat the cover.
- Close the hood.
