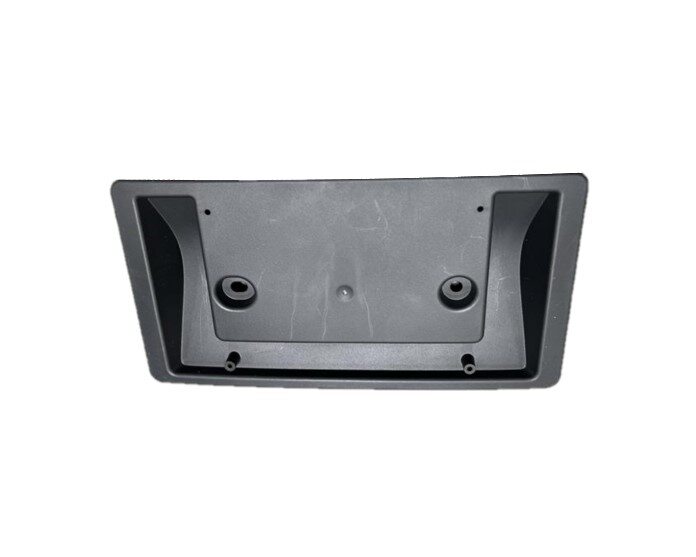

Bracket - License Plate - Front (NA) (Remove and Replace)

Correction code 1207010012 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

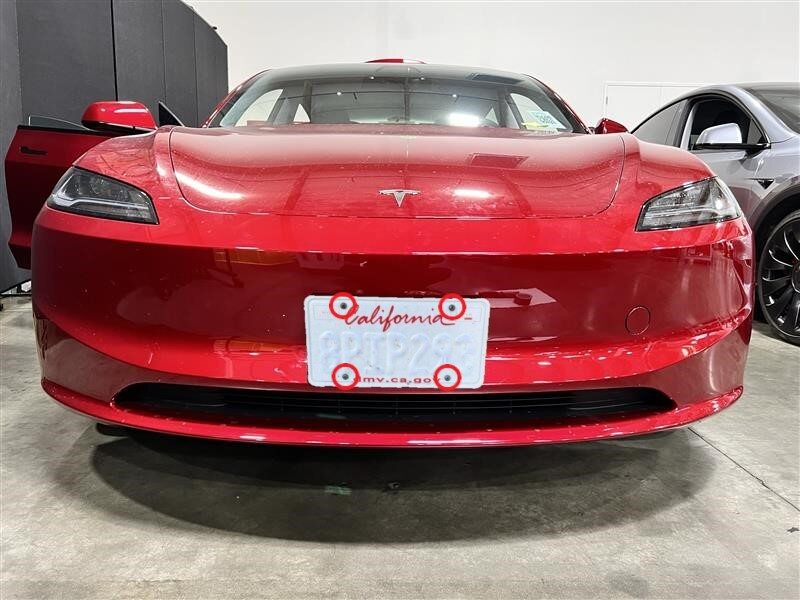

  1. Remove front license plate from license plate bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    4x screws, PH2, 3 Nm

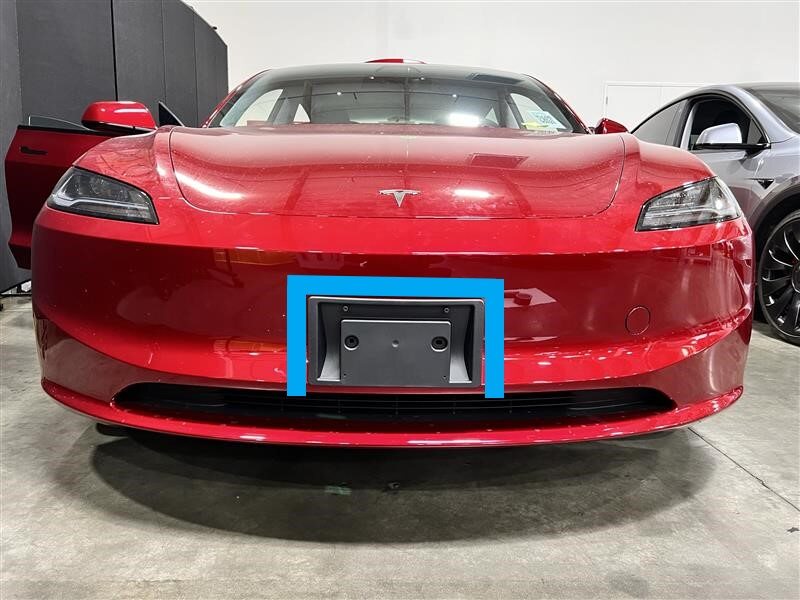

  2. Apply masking tape around front license plate bracket.

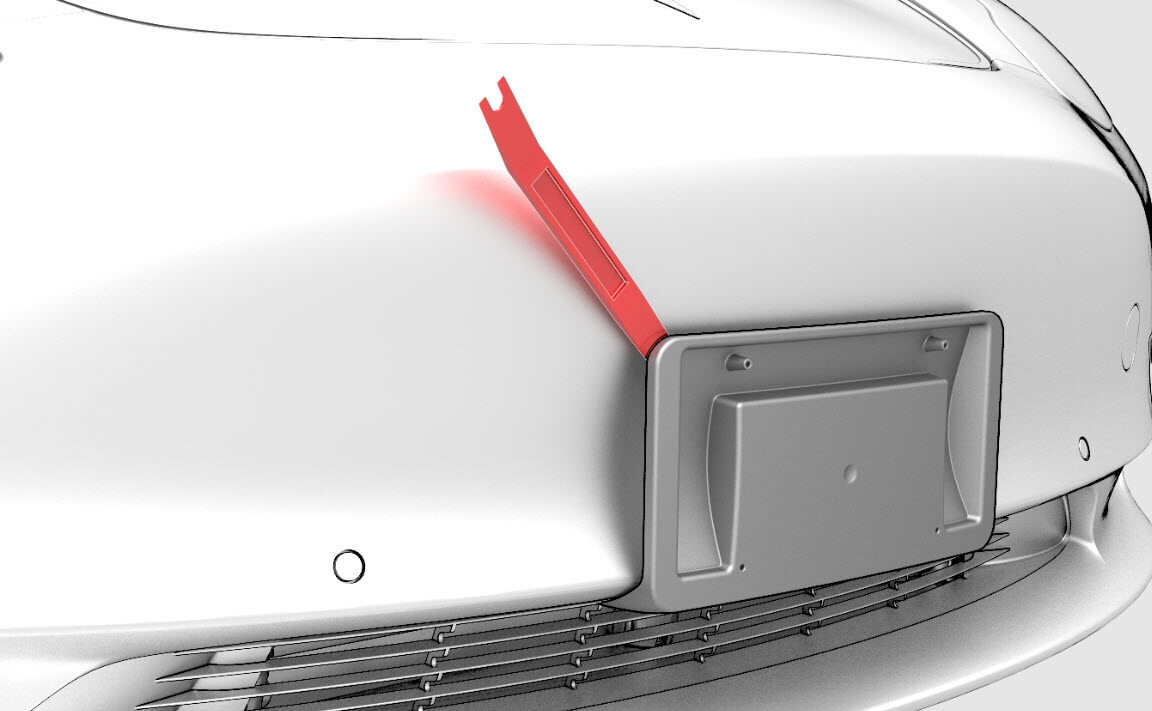

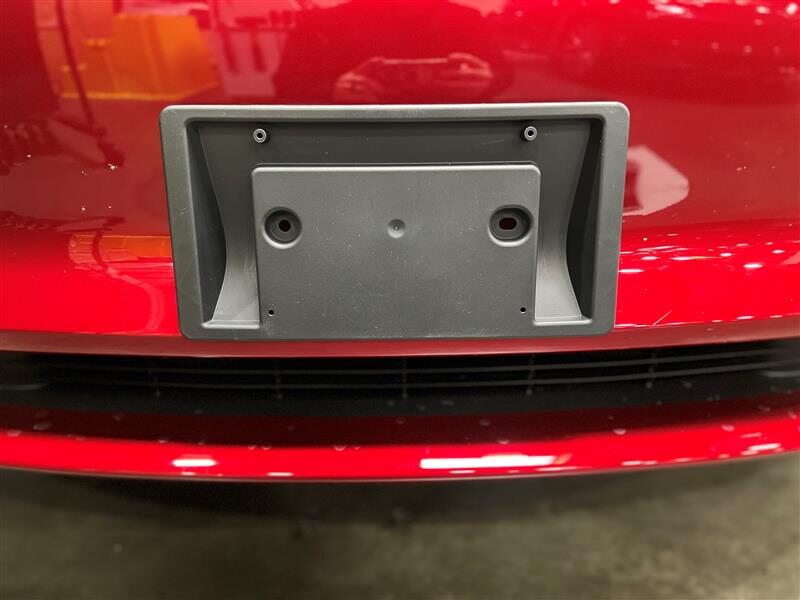

  3. Remove front license plate bracket.

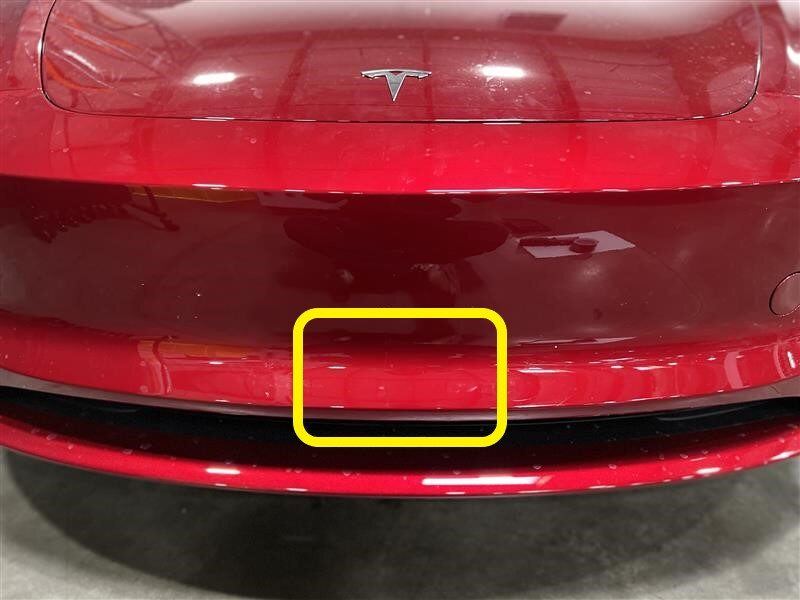

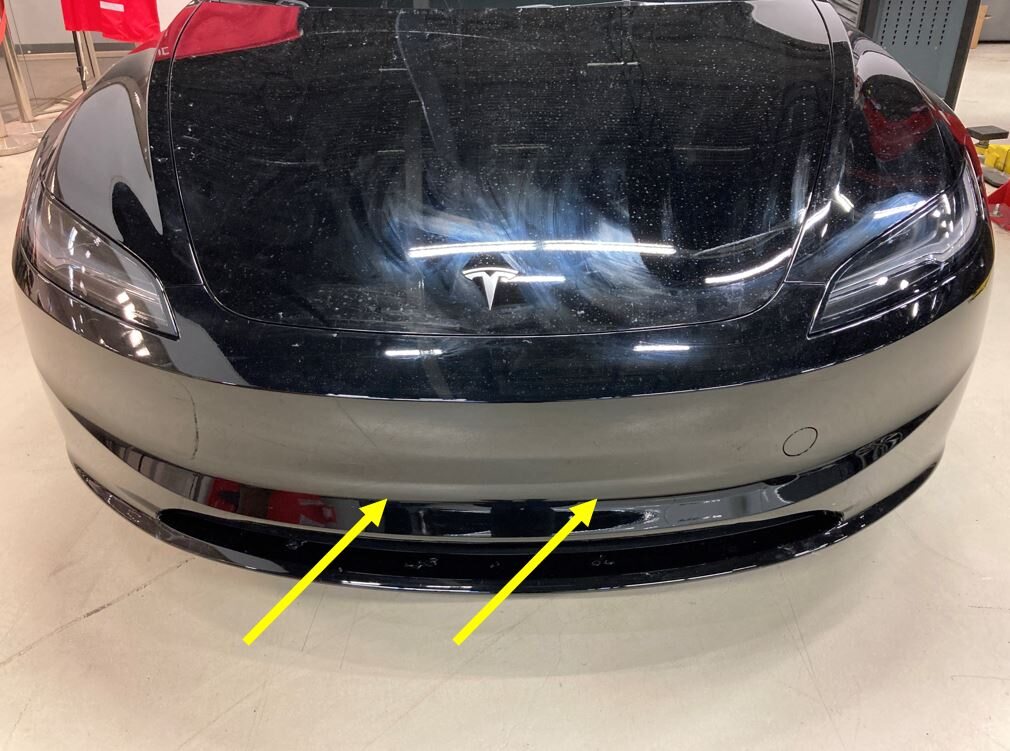

  4. Clean surface area of front license plate bracket on front fascia.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow one minute dry time.

Install

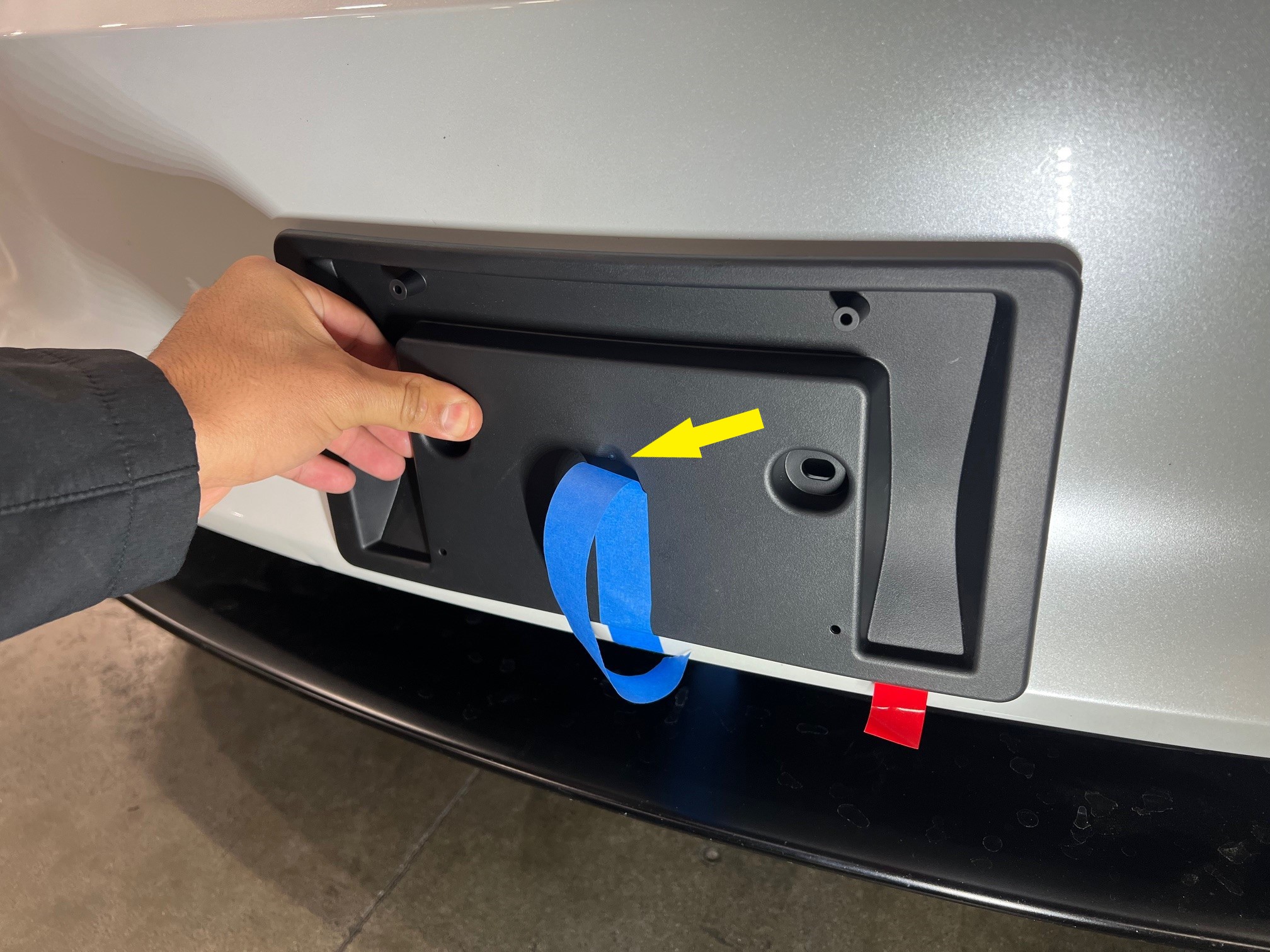

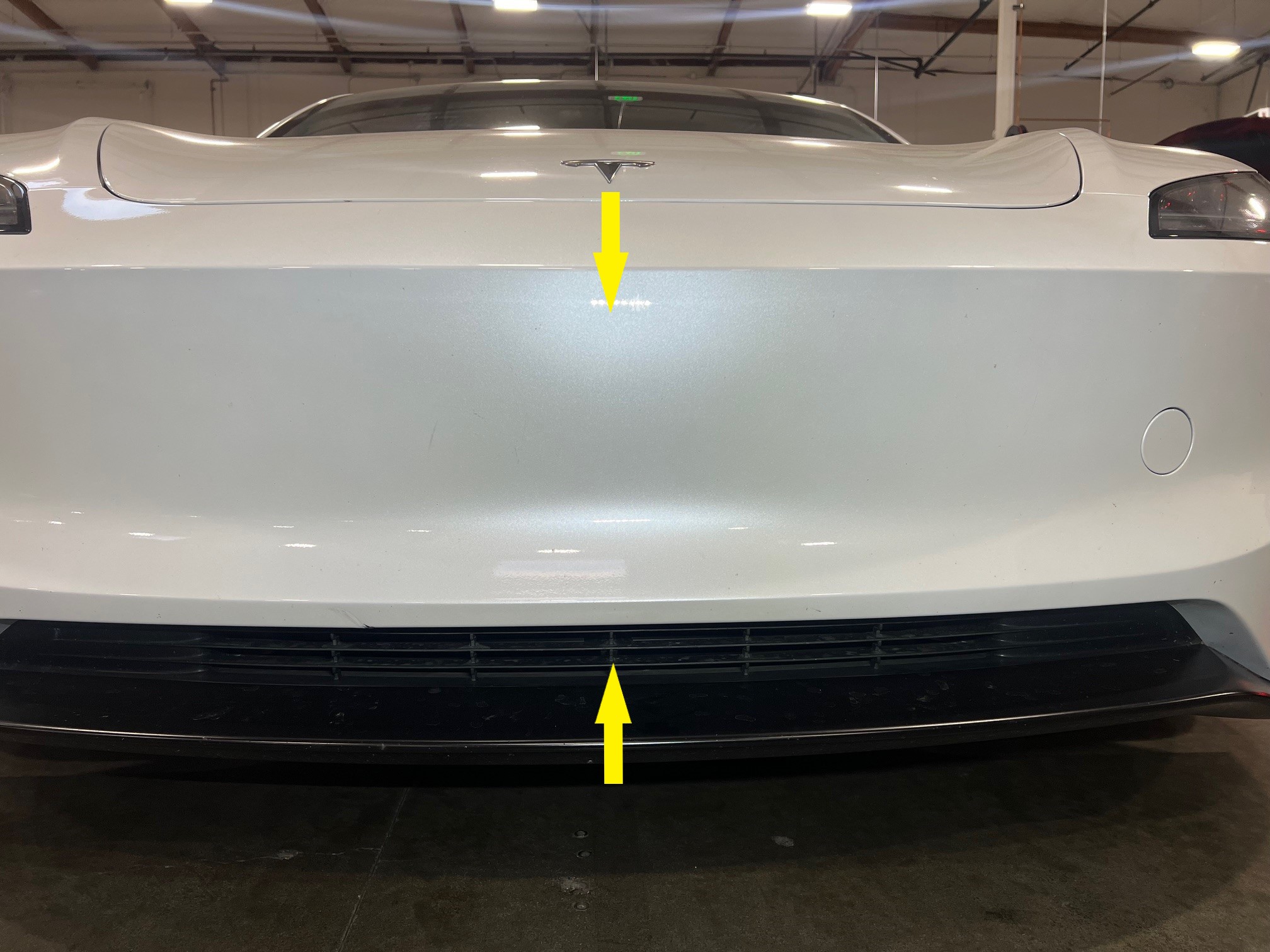

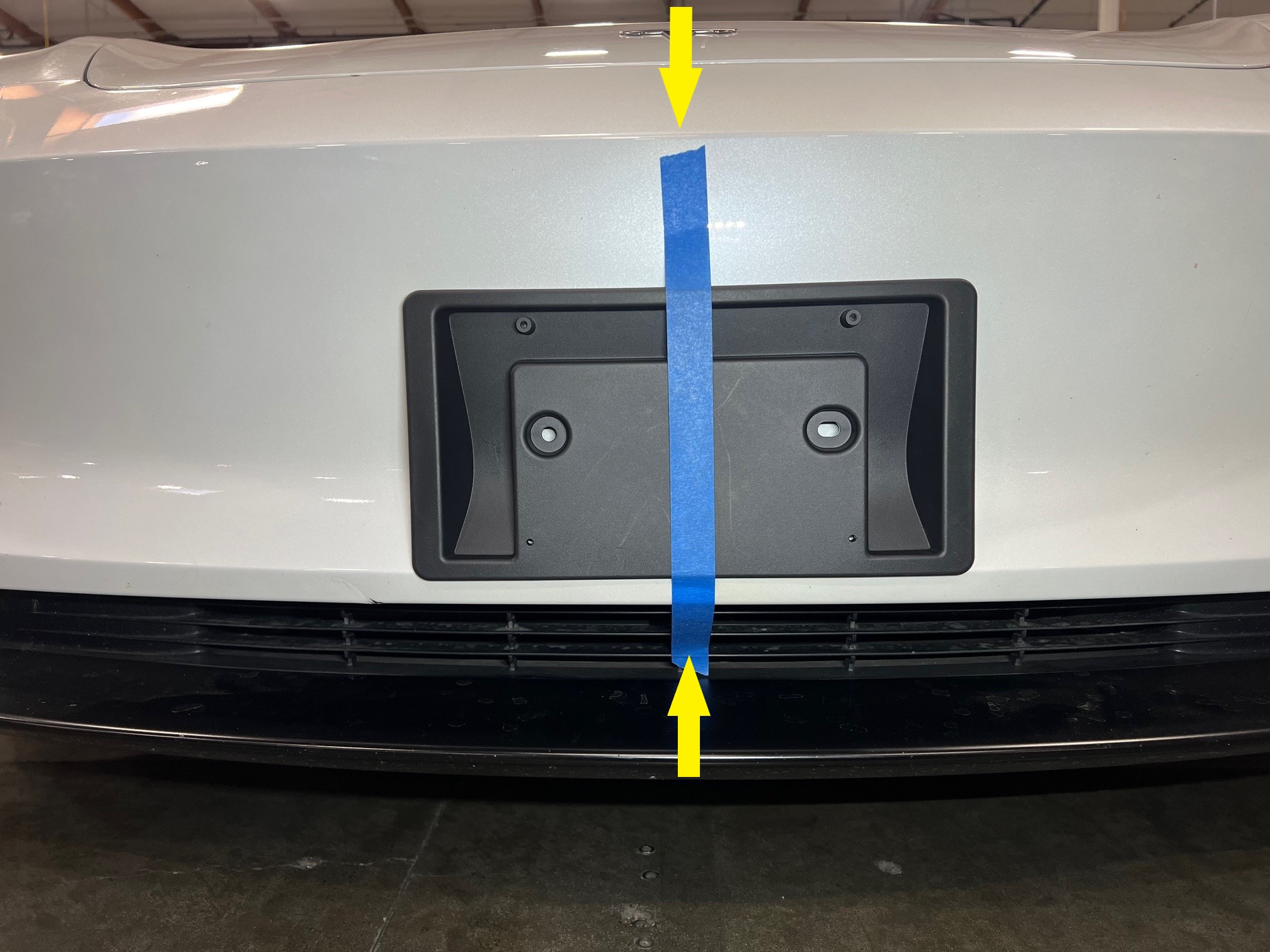

  1. Use the center grille rib as a reference point, then align tape centrally onto center mold injection onto bracket up to T badge.

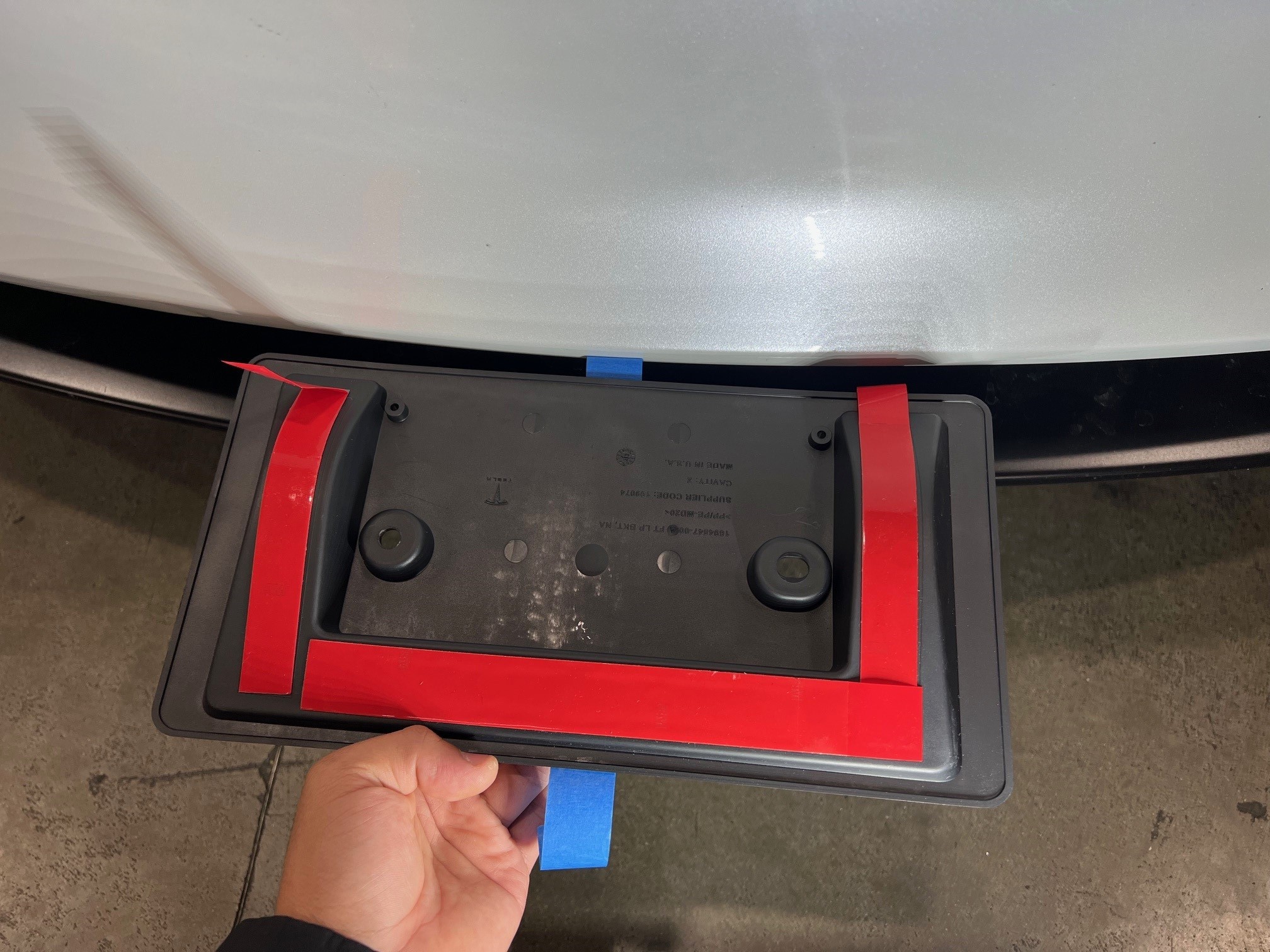

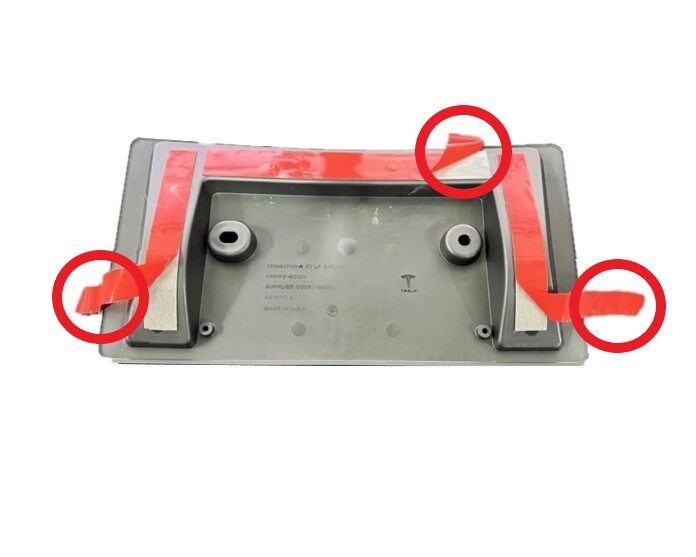

  2. Remove backing from horizontal double-sided tape and top portion of vertical double-sided tapes, bending it outboard of the bracket.
  3. Install front license plate bracket onto fascia.
    Informational PurposesAn informational icon, calling your attention
    Note

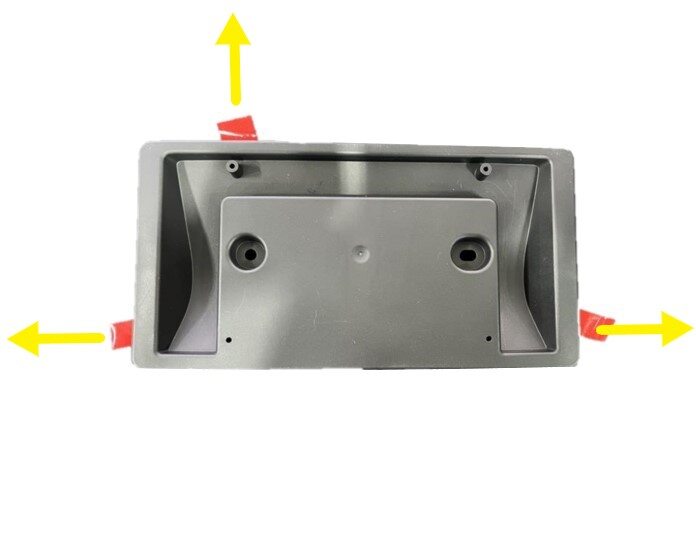

    Position front license plate bracket onto fascia, Remove remaining backing from double-sided tape

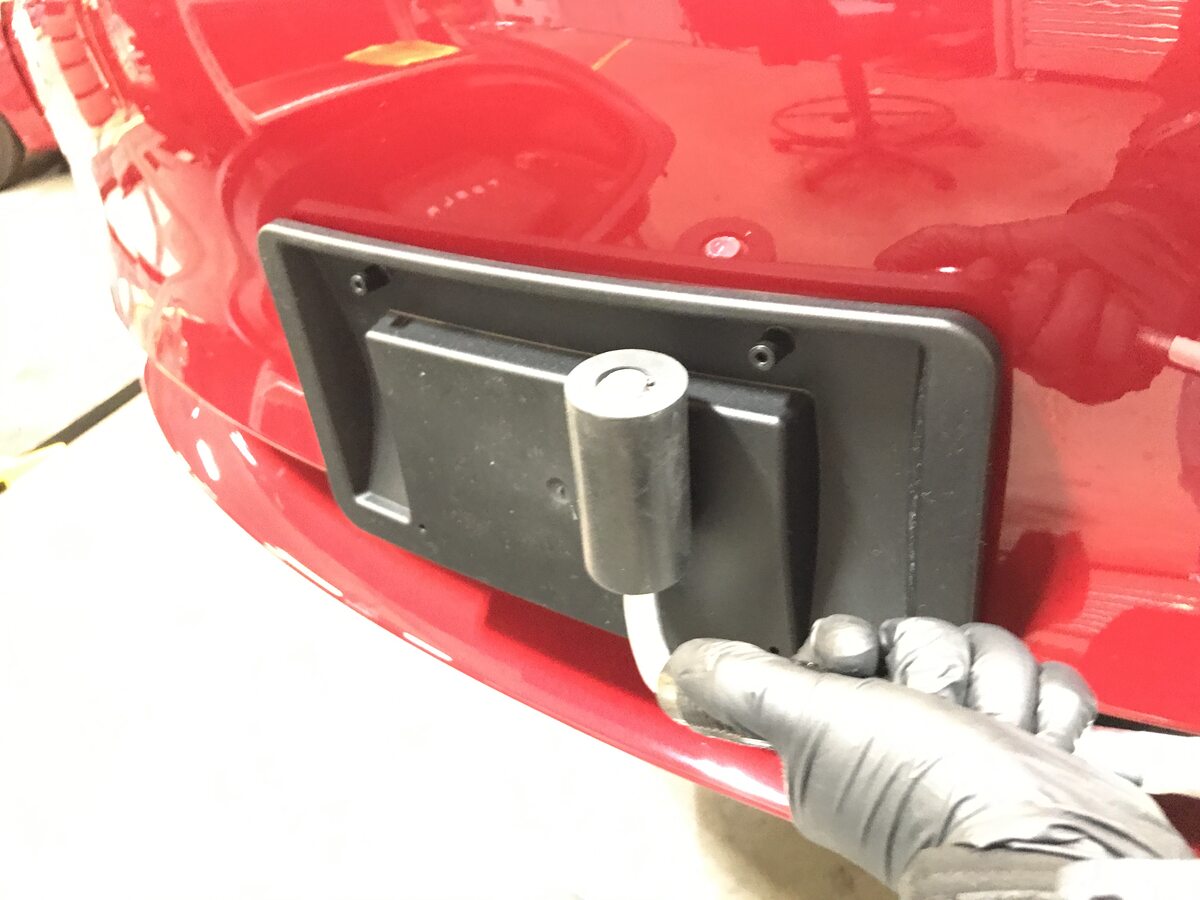

  4. Press license plate bracket onto fascia to wet-out double-sided tape.

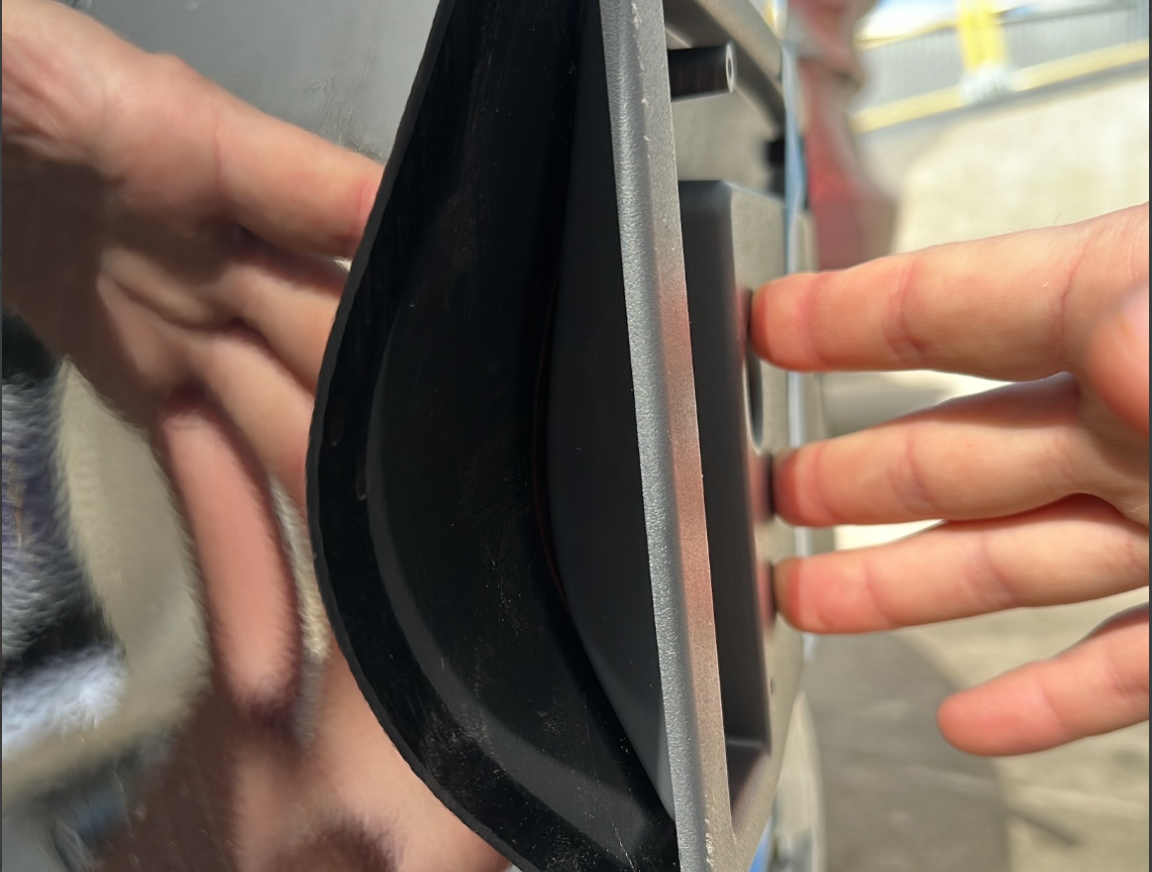

  5. Verify curvature is flush onto fascia.
