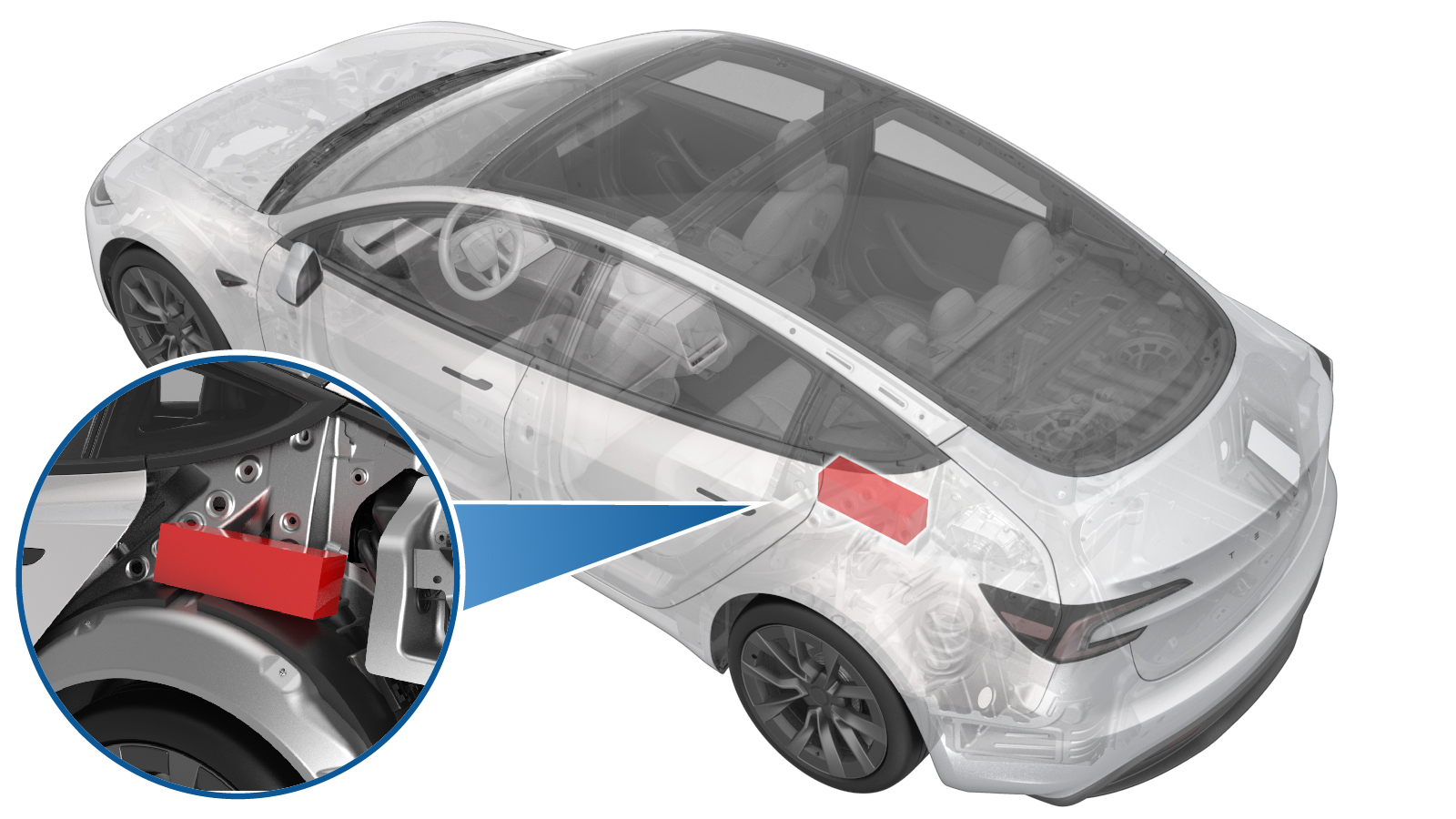

Insulator - Stuffer - Wheelhouse (Remove and Replace)
Correction code
1530010022
FRT
0.18
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the trunk load floor. See Load Floor - Trunk (Remove and Replace).
- Remove the trunk garnish. See Garnish - Trunk (Remove and Replace).
- Remove the trunk sill trim. See Trim - Trunk Sill (Remove and Replace).
- Remove the LH load floor bracket. See Bracket - Trunk Load Floor - LH (Remove and Replace).
-

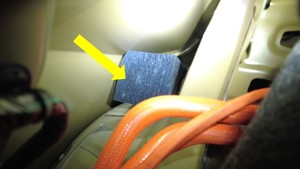

Use a pry tool to remove the
LH clip that attaches the trunk side trim to the vehicle, then move the
trunk side trim aside.
-

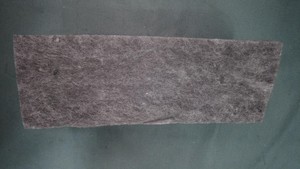

Remove the LH trunk tub
stuffer.
Install
-
Install the LH trunk tub
stuffer.
-
Install the LH clip that
attaches the trunk side trim to the vehicle.
- Install the LH load floor bracket. See Bracket - Trunk Load Floor - LH (Remove and Replace).
- Install the trunk sill trim. See Trim - Trunk Sill (Remove and Replace).
- Install the trunk garnish. See Garnish - Trunk (Remove and Replace).
- Install the trunk load floor. See Load Floor - Trunk (Remove and Replace).
