Sliding Door Assembly - Center Console (Remove and Replace)

Correction code 1519010612 FRT 0.42 Correction code 1519010622 FRT 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-10-22: Added code for the sliding door with screw-secured phone dock, and added the method of distinguishing between sliding doors with clip-secured and screw-secured phone docks based on the vehicle build time.
  • 2024-09-05: Added link for removing Phone Dock (Screw) procedure.
Informational PurposesAn informational icon, calling your attention
Note

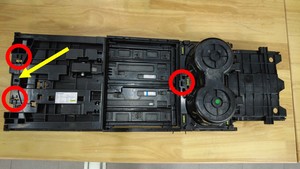

Verify the vehicle build date first.
  • If the vehicle is built after March 3rd, 2024, the sliding door assembly should be with a screw-secured phone dock. Use correction code 1519010622.
  • If the vehicle is built before March 3rd, 2024, the sliding door assembly should be with a clip-secured phone dock. Use correction code 1519010612.

Torque Specifications

Table 1. Torque Specifications: Sliding Door Assembly - Center Console (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x10) that attach both sides of the sliding bin lid to the center console
1 Nm (.7 lbs-ft)
  • Torx T20 socket
 Reuse

Remove

Informational PurposesAn informational icon, calling your attention
Note
This procedure is performed with the center console installed in the vehicle. Some images may show the center console outside of the vehicle, but that is only to provide more clarity on the fasteners and components.

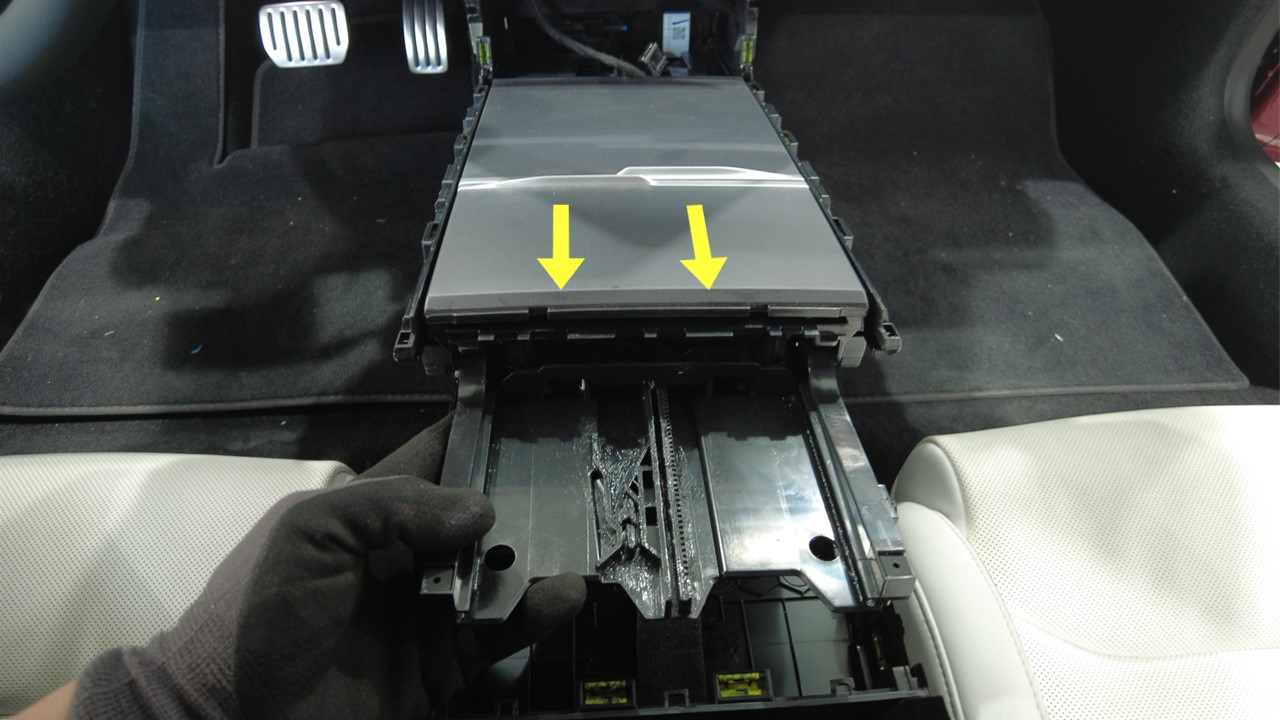

  1. Remove the top face panel assembly from center console. See Top Face Panel - Center Console (Remove and Replace).

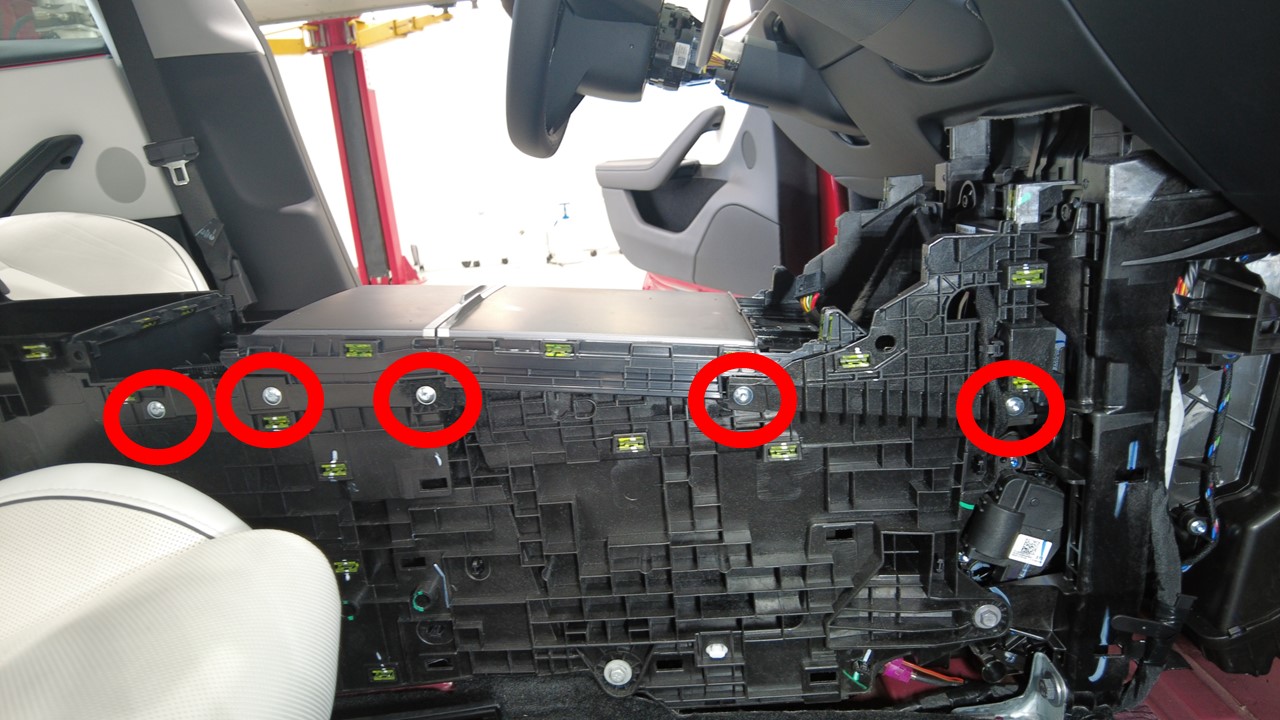

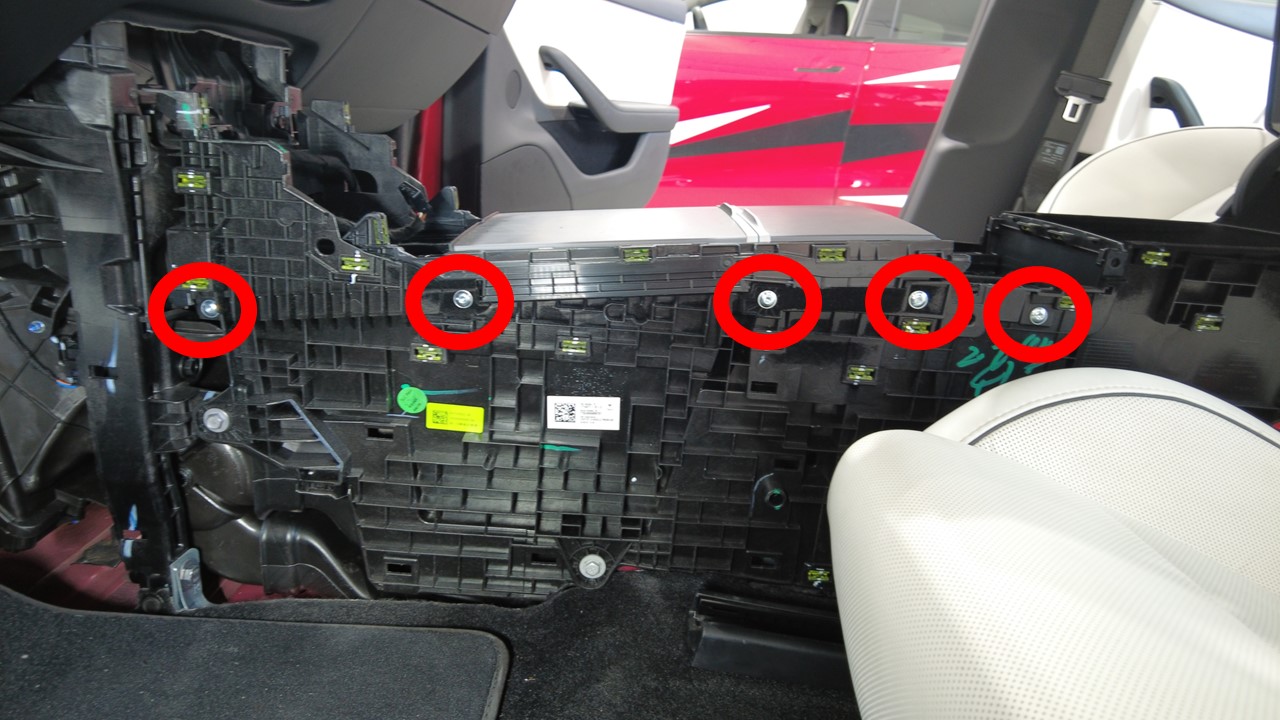

  2. Remove the screws (x10) that attach both sides of the sliding bin lid to the center console.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

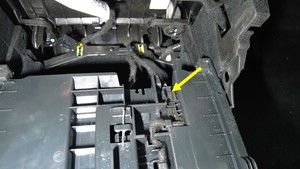

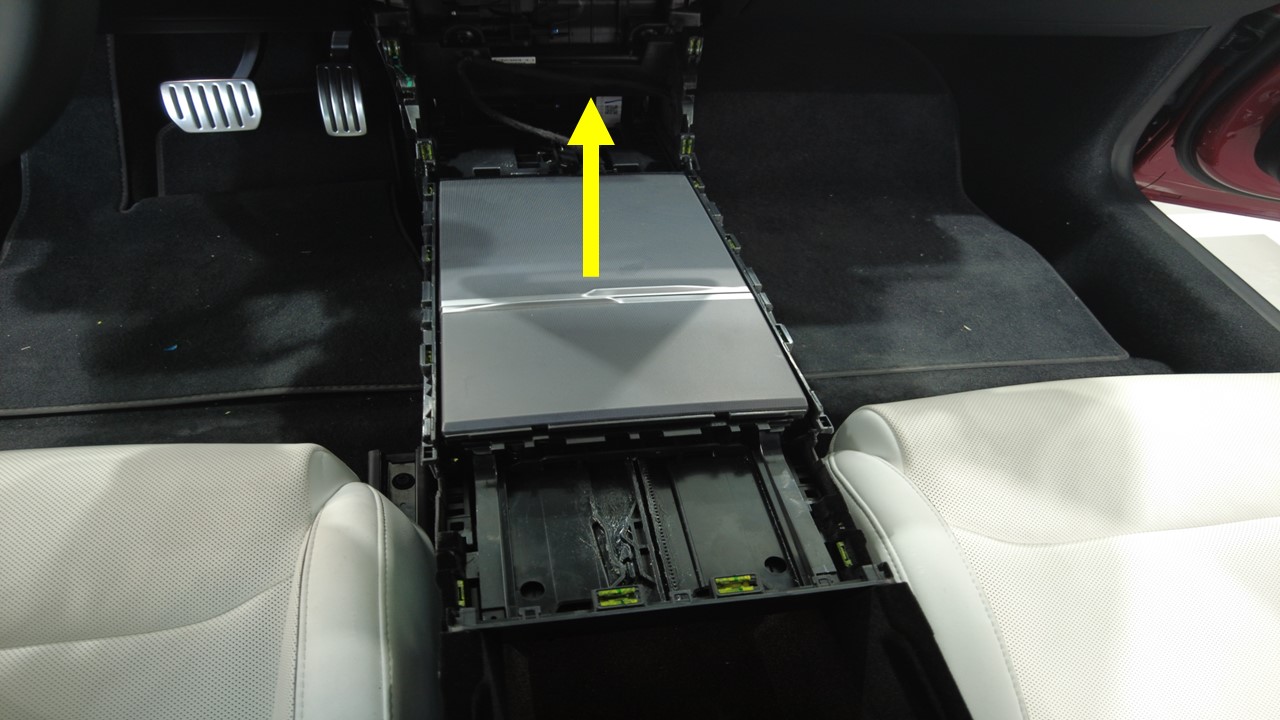

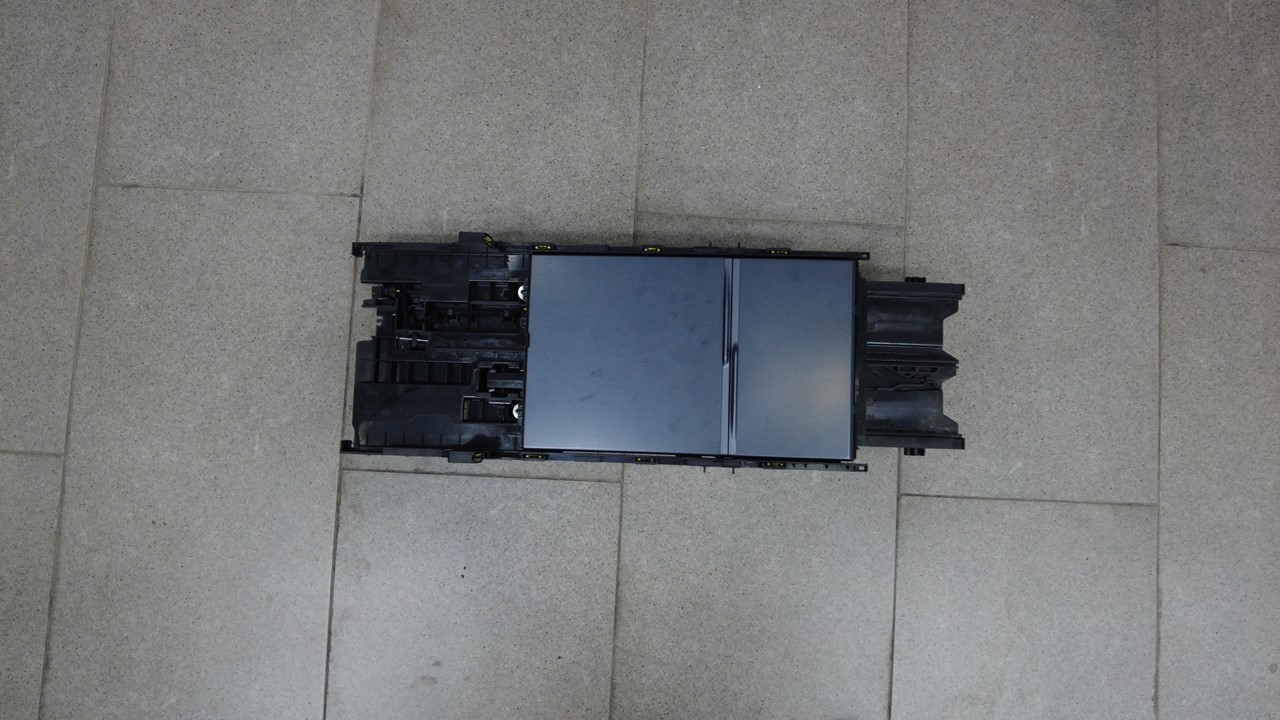

  3. Lift the sliding bin lid assembly up and move it back slightly to release the connector and clips, and then remove the sliding bin lid assembly from the center console.

Install

  1. Position the sliding lid onto the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure that all connectors and clips are installed in place.
  2. Install the screws (x10) that attach both sides of the sliding bin lid assembly onto the center console.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  3. Install the top face panel assembly. See Top Face Panel - Center Console (Remove and Replace).
