Cover - Latch - Trunk (Remove and Replace)
Correction code
1511010062
FRT
0.12
NOTE: Unless
otherwise explicitly stated in the procedure, the above correction code and
FRT reflect all of the work required to perform this procedure, including
the linked procedures. Do
not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how
they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection
to make sure wearing proper PPE when performing the below procedure.
NOTE: See Ergonomic Precautions for safe and
healthy working practices.
- 2025-12-22: Removed the trunk lid trim steps.
Remove
- Open the trunk.
-

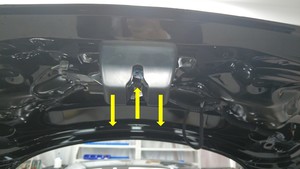

Insert a small flat head
screwdriver between the latch and latch cover, and then gently pry the latch
cover away from the latch.
Install
-

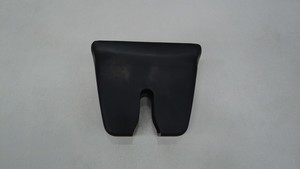

Install the latch cover to the latch and make sure the tab engaged.
- Close the trunk.
