X981M

Tesla Part Number

1042613-00-A

Connector

SUMITOMO 6098-5594

Color

WH

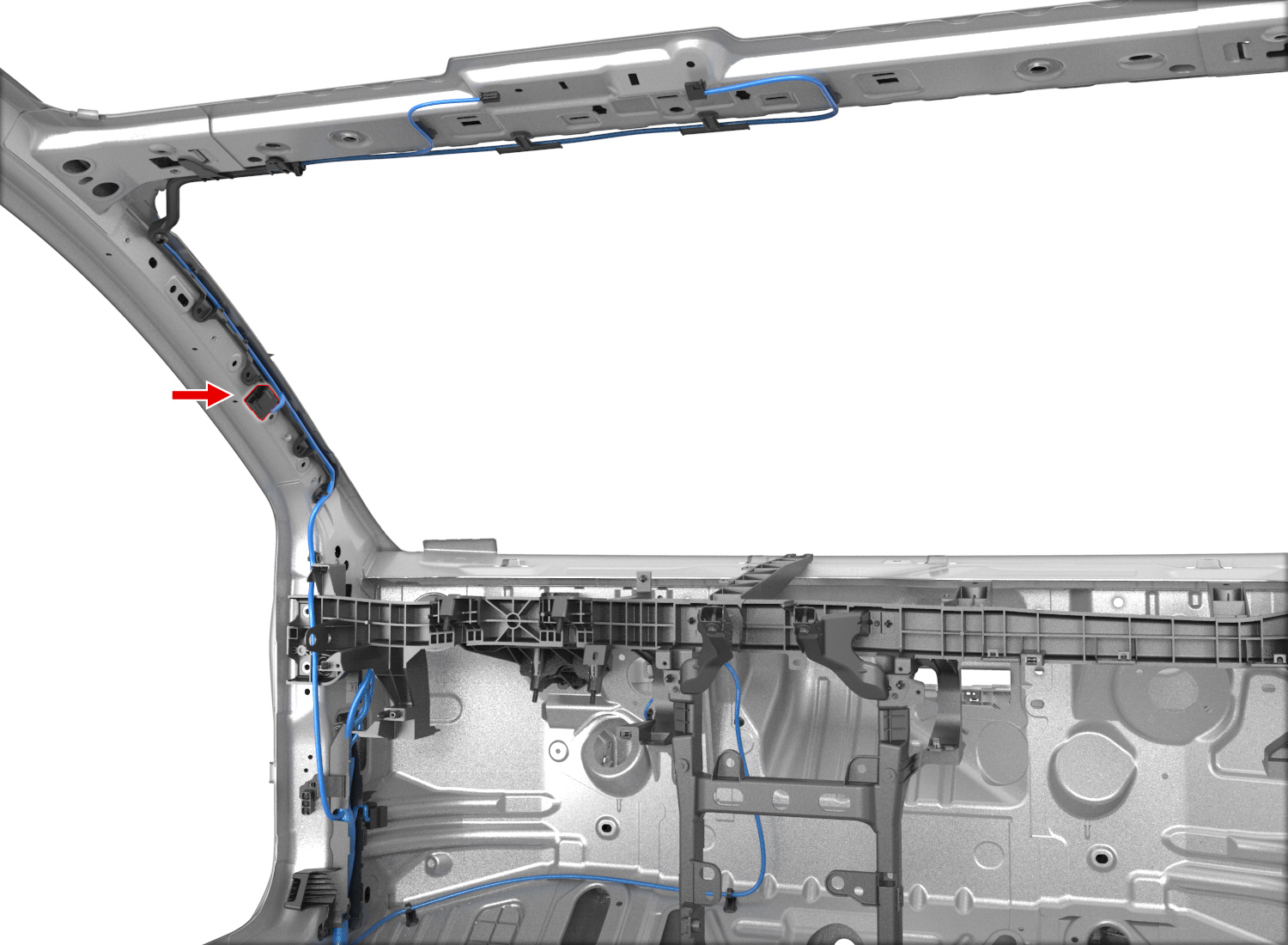

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X936F	11
2
3
4
5	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X936F	7
6	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X936F	8
7
8	SUMITOMO	8100-3623	0.64x0.64M	YE/GN	0.35			X030A	6
9
10	SUMITOMO	8230-4925	1.5x0.6M	WH	0.50			X936F	18
11	SUMITOMO	8230-4925	1.5x0.6M	GY	0.50			X936F	23
12
13	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X030A	26
14	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X936F	21
15	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X936F	20
16	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X039	9
17
18	SUMITOMO	8230-4925	1.5x0.6M	BN	0.50			X936F	4
