X935F

Tesla Part Number

1484695-00-B

Connector

AMP 2321525-1

Color

NA

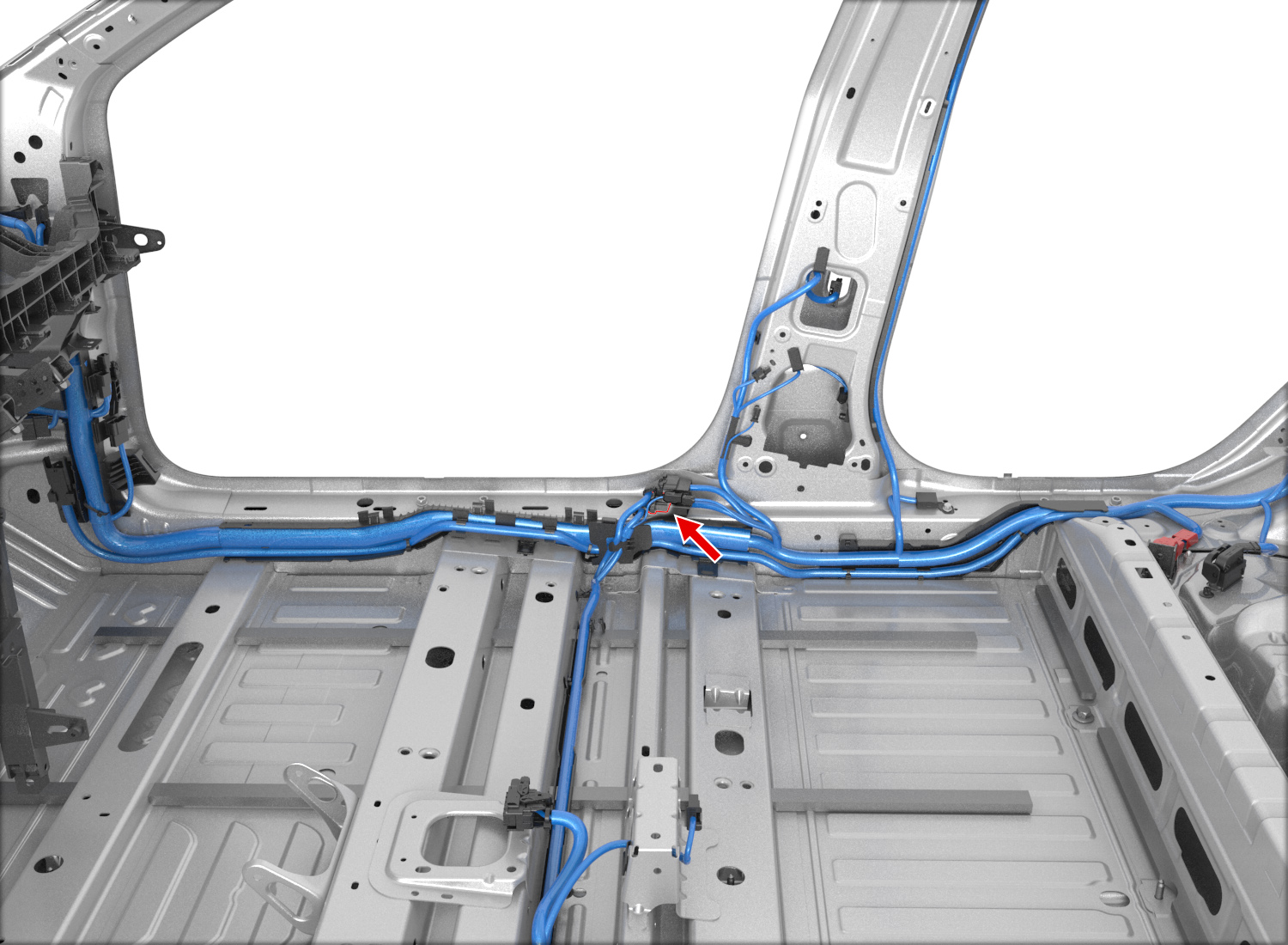

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1				BU	0.35			X162A	1
2				BN	0.35			X162A	2
3				TN	0.35			X096	5
4				YE	0.35			X096	6
5				GN	0.50			X031	36
6				VT	0.50			X031	35
7
8
9				BU	0.35			X030A	19
10				RD	0.35			X486	3
11				VT	0.35			X201	37
12				BN	0.35			X201	38
13				RD	0.35			X030A	27
14				BU	0.35			X031	12
15				YE	0.35			X031	11
16				VT	0.50			X039	15
17				WH	0.35			X201	20
18				GY	0.35			X201	19
19				GN	0.35			X096	8
20				BK	0.35			X096	7
21				BU	0.35			X039	20
22				GN	0.35			X039	21
23
24
25				BN	0.35			X039	11
26				YE/LTBU	0.35			X031	43
27				YE	0.35			X031	42
28				WH	0.35			X201	56
29
30
31				RD	0.35			X031	10
32				BU	0.50			X039	14
