X927F

Tesla Part Number

1849224-01-C

Connector

KSE K20F01122

Color

BK

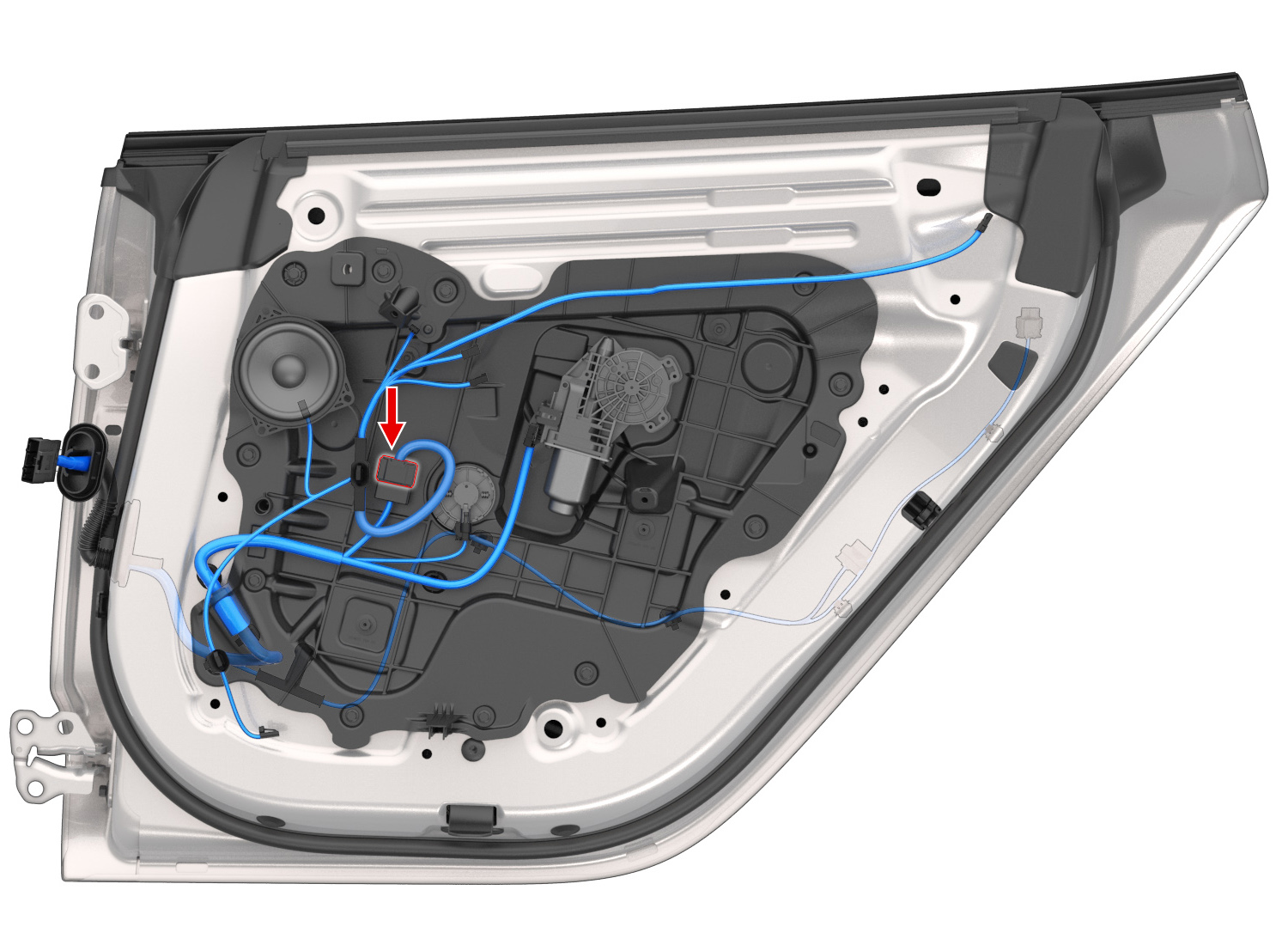

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X591	1
2
3
4
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X466	1
6
7
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X462	1
9	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X456	3
10	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X456	2
11
12	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X591	2
13	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50
14	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X465	1
15
16	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X462	2
17
18	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X464	3
19	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X464	1
20
