X909M

Tesla Part Number

1097117-00-A

Connector

DELPHI 33245685

Color

WH

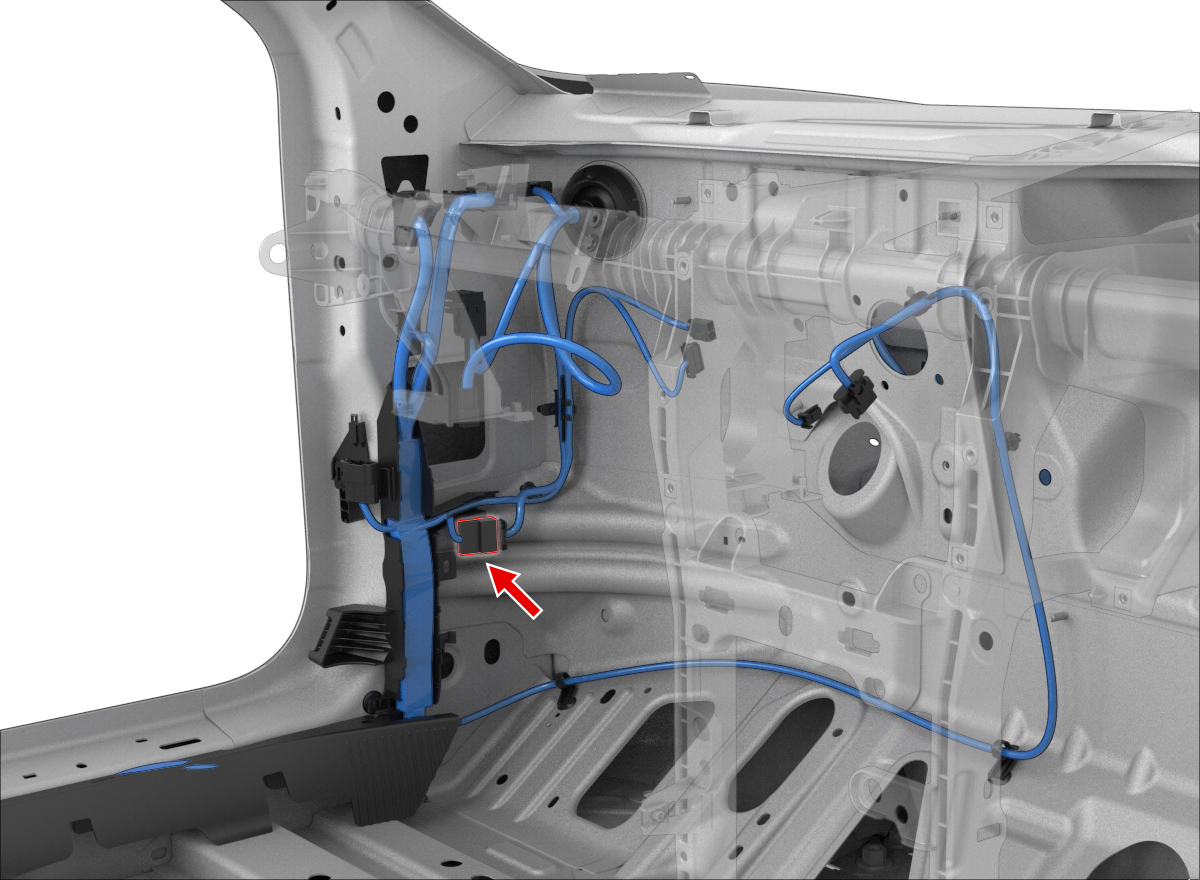

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2
3
4
5	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X486	6
6	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X486	5
7	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X201	46
8	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	45
9
10	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X201	8
11	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X201	7
12
13
14
15
16	SUMITOMO	8100-3623	0.64x0.64M	YE/LTBU	0.35			X031	29
17	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X031	30
18
19
20
21	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X201	5
22	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	6
