X909F

Tesla Part Number

1097116-00-A

Connector

DELPHI 33245684

Color

WH

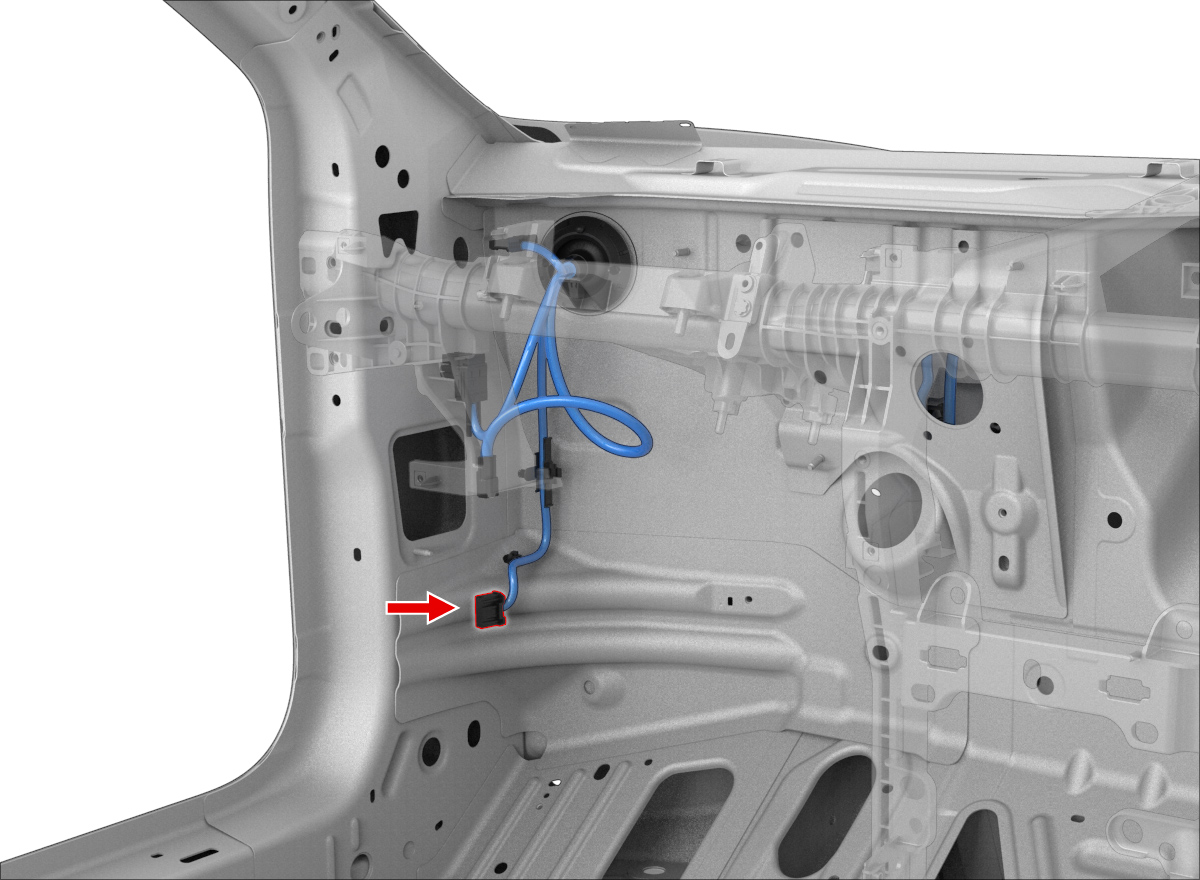

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2
3
4
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X121A	17
6	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X121A	18
7	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X905F	5
8	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X905F	6
9
10	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X250	1
11	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X250	2
12
13
14
15
16	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X010	15
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X010	30
18
19
20
21	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X251	1
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X251	2
