X188

Tesla Part Number
1679742-00-A
Connector
DELPHI 35328464
Color
BK

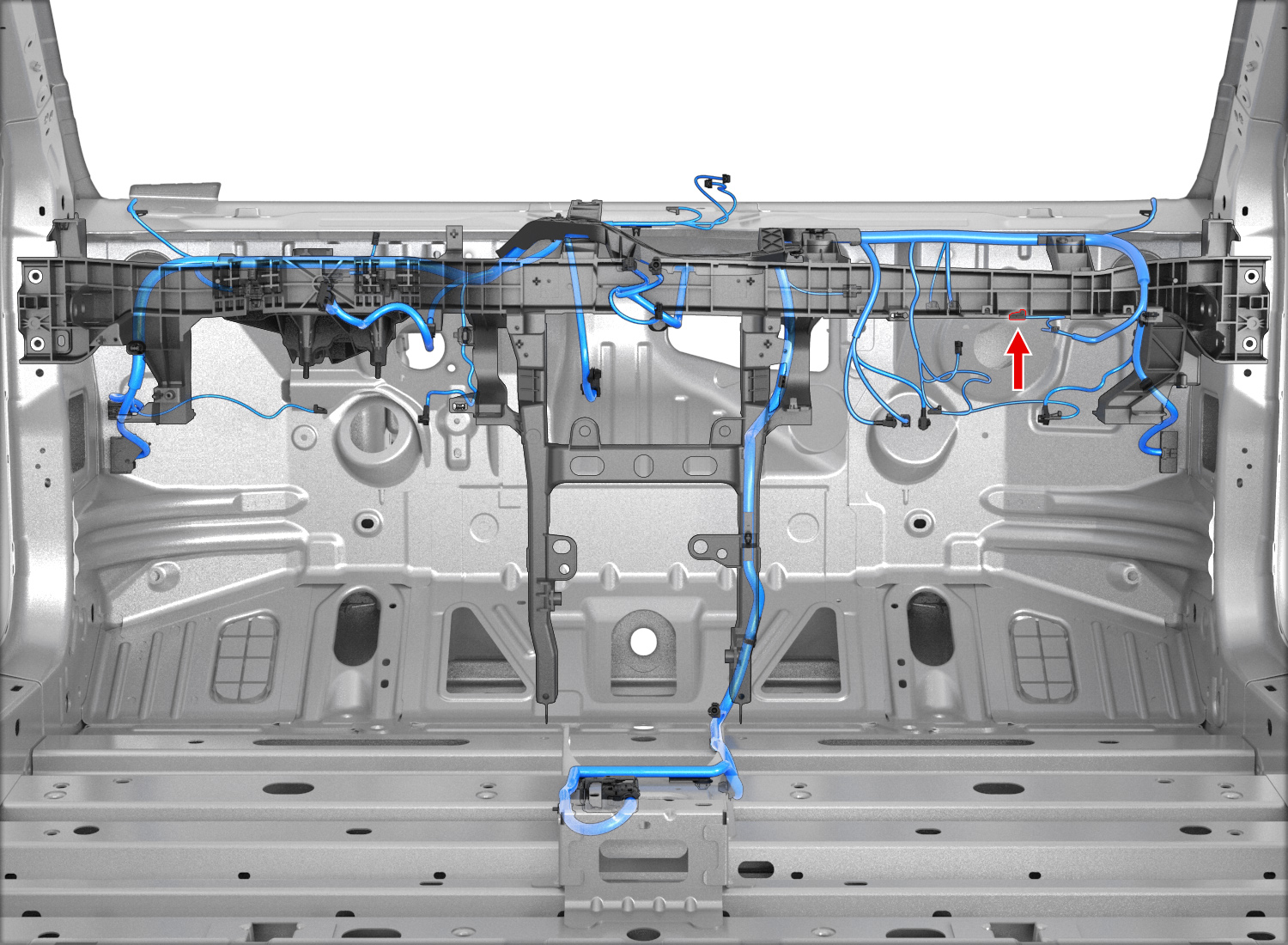

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI135806330.64x0.64FWH0.35X05515
1AMP5-928999-10.63x0.63FWH0.35X05515
2AMP5-928999-10.63x0.63FBN0.35
2DELPHI135806330.64x0.64FBN0.35
