G041

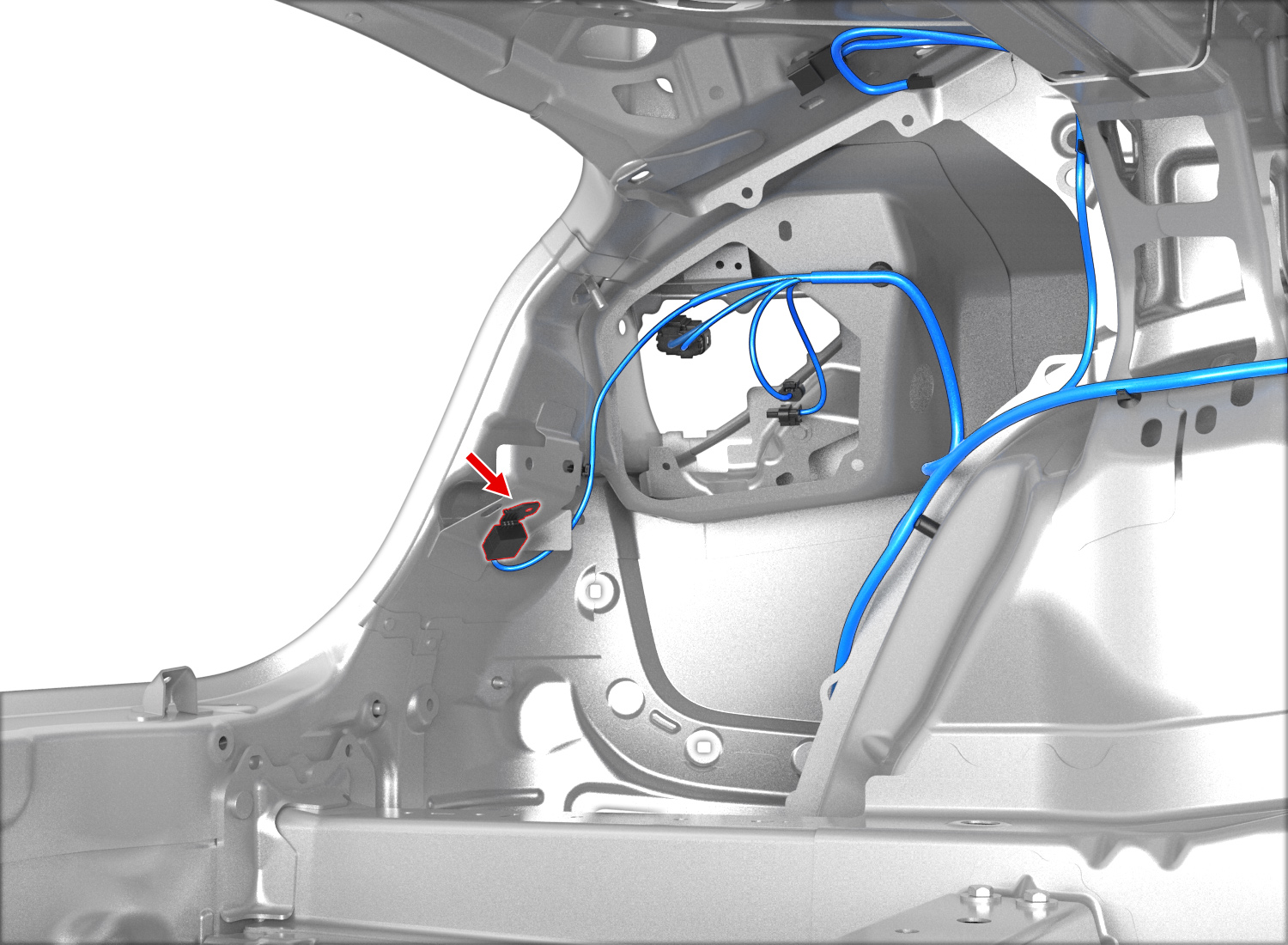

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-0782 | 4.8x0.8F | BK | 3.00 | G031 | 1 | ||
| 2 | SUMITOMO | 8100-0782 | 4.8x0.8F | BK | 3.00 | X041 | 1 | ||
| 3 | |||||||||
| 4 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X096 | 9 | ||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X296 | 2 | ||
| 9 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X497 | 3 | ||
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X495 | 3 | ||
| 15 |
