X151

Tesla Part Number

1712127-00-A

Connector

BOSCH 1928405782

Color

BK

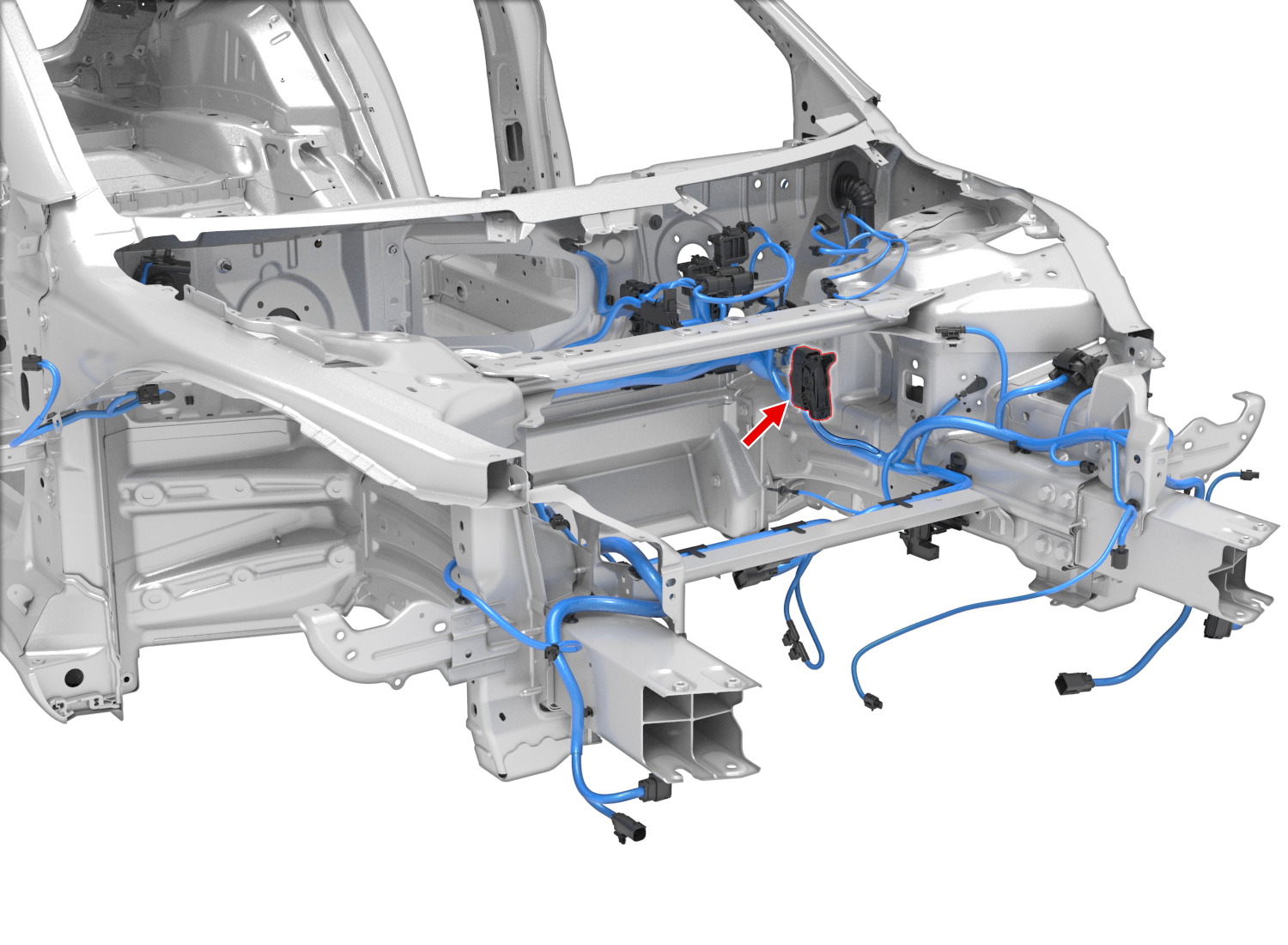

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499399	4.8x0.8FS	YE	5	BOSCH	1928301695	X011	7
2
3
4
5	BOSCH	1928499259	1.2	YE/LTBU	0.35	BOSCH	1928300934	X010	14
6
7	BOSCH	1928499259	1.2	WH	0.35	BOSCH	1928300934	X154A	8
8
9
10
11	BOSCH	1928499259	1.2	DKGN/WH	0.35	BOSCH	1928300934	X037	13
12
13
14	BOSCH	1928499399	4.8x0.8FS	BK	5	BOSCH	1928301695	G011	15
15
16
17
18
19	BOSCH	1928499259	1.2	YE	0.35	BOSCH	1928300934	X010	29
20
21	BOSCH	1928499259	1.2	BU	0.35	BOSCH	1928300934	X155A	7
22	BOSCH	1928499259	1.2	WH	0.35	BOSCH	1928300934	X908F	3
23	BOSCH	1928499259	1.2	GN	0.35	BOSCH	1928300934	X908F	17
24	BOSCH	1928499259	1.2	YE	0.35	BOSCH	1928300934	X154A	7
25	BOSCH	1928499259	1.2	GN	0.35	BOSCH	1928300934	X037	12
26	BOSCH	1928499259	1.2	GY	0.35	BOSCH	1928300934	X155A	8
27
28
29
30	BOSCH	1928492890	4.8x0.8FS	WH	2.00	BOSCH	1928301946	X010	91
31
32
33
34
35
36	BOSCH	1928499259	1.2	WH	0.35	BOSCH	1928300934	X010	71
37	BOSCH	1928499259	1.2	VT	0.35	BOSCH	1928300934	X908F	4
38
39	BOSCH	1928499259	1.2	TN	0.35	BOSCH	1928300934	X908F	16
40
41
42
43
44
45
46	BOSCH	1928492890	4.8x0.8FS	BK	2.00	BOSCH	1928301946	G011	13
