X120A

Tesla Part Number

1815599-01-A

Connector

SUMITOMO 6099-0401

Color

GY

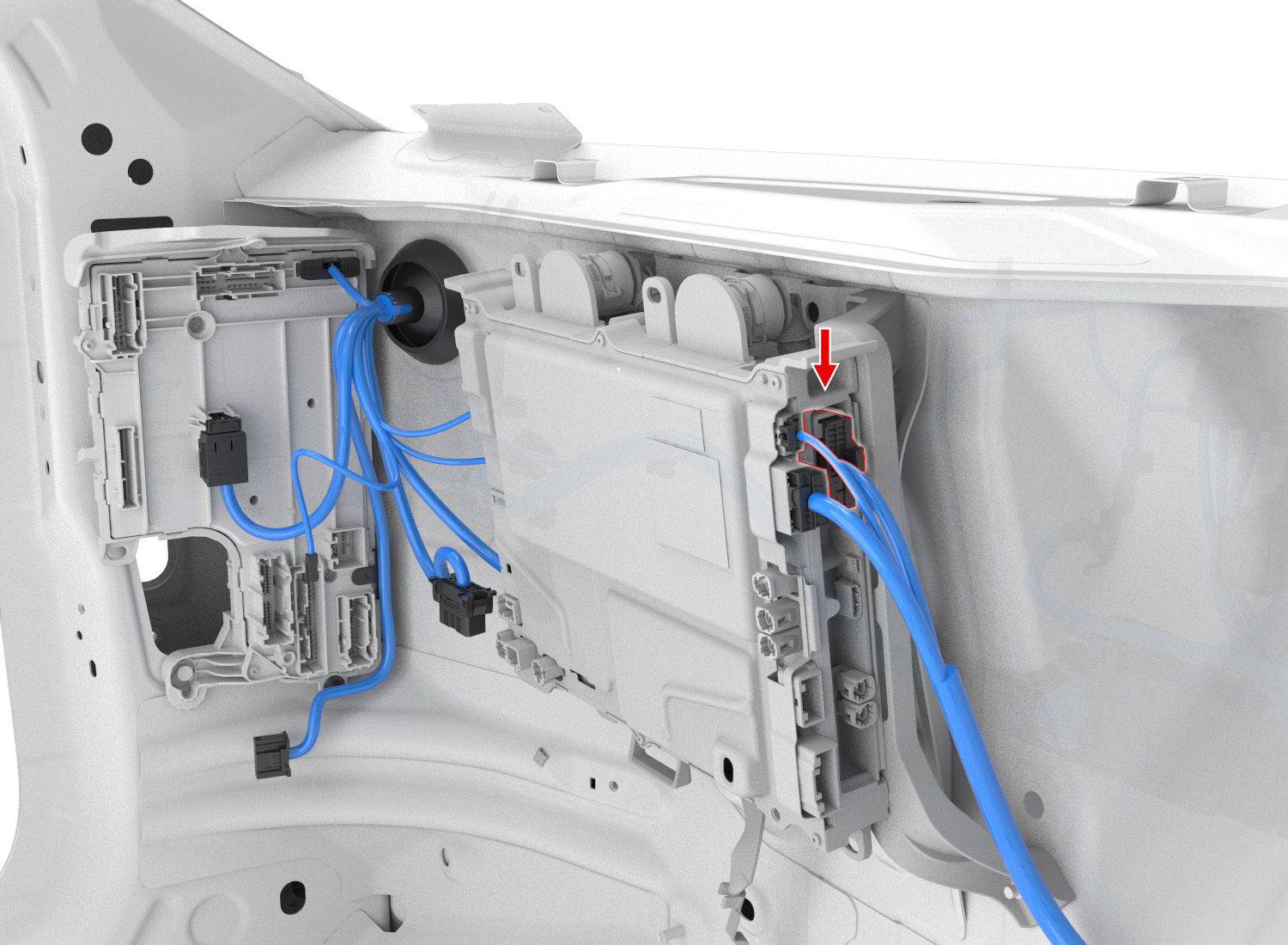

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-4932	4.8x0.8F	WH	4.00			X011	6
2
3	SUMITOMO	8100-3636	1.0x0.64F	DKGN/WH	0.35
4	SUMITOMO	8100-3636	1.0x0.64F	GN	0.35
5	SUMITOMO	8100-3636	1.0x0.64F	VT	0.35			X905F	11
6	SUMITOMO	8100-3636	1.0x0.64F	GY	0.35			X905F	12
7
8
9
10
11	SUMITOMO	8100-3636	1.0x0.64F	GY	0.35			X603A	2
12	SUMITOMO	8100-3636	1.0x0.64F	BN/WH	0.35			X057	23
13	SUMITOMO	8100-3636	1.0x0.64F	BN	0.35			X057	22
14
15
16
17
18
19
20	SUMITOMO	8100-3636	1.0x0.64F	RD	0.35			X603A	1
