X595

Tesla Part Number

1015001-00-A

Connector

AMP 1-1534113-1

Color

BK

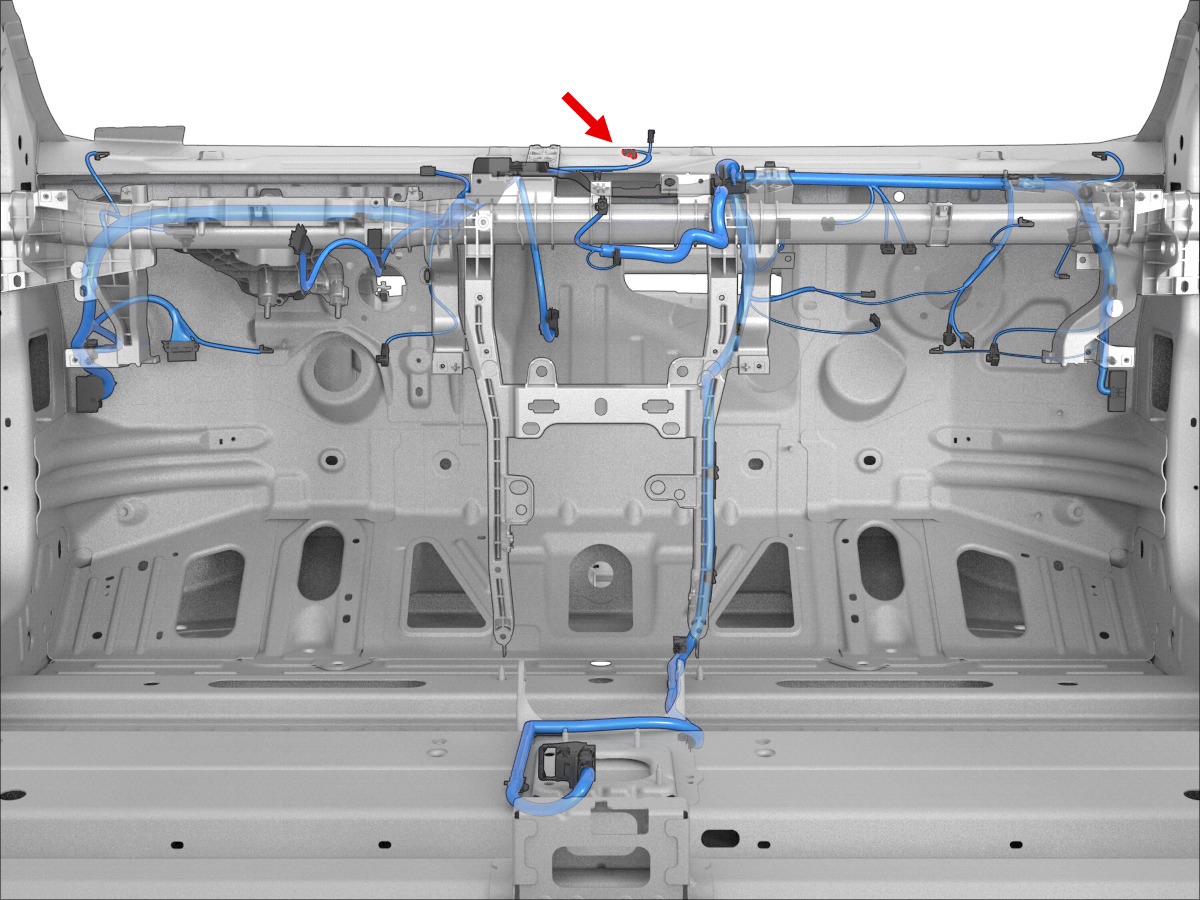

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	5-963715-1	0.63x0.63F	GY	0.50			X055	39
1	DELPHI	13580635	0.64x0.64F	GY	0.50			X055	39
2	AMP	5-963715-1	0.63x0.63F	BU	0.50			X055	40
2	DELPHI	13580635	0.64x0.64F	BU	0.50			X055	40
