X201

Tesla Part Number

1475379-00-A

Connector

BOSCH 1928406051

Color

BK

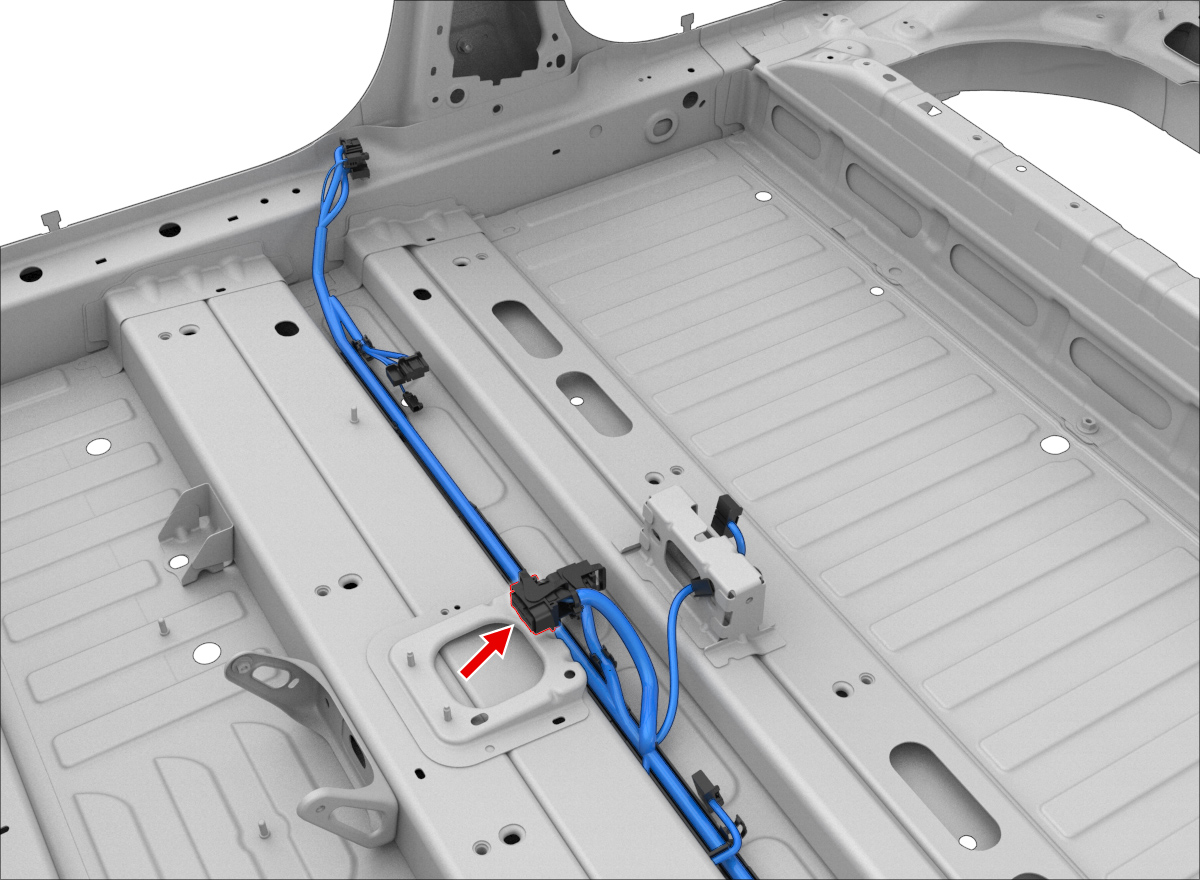

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X936F	25
2	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X936F	24
3	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X217	2
4	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X217	1
5	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X909M	21
6	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X909M	22
7	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X909M	11
8	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X909M	10
9	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X936F	2
10	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X936F	3
11	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X225	2
12	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X225	1
13
14
15	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X936F	13
16	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X936F	12
17	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X221	1
18	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X221	2
19	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X935F	18
20	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935F	17
21	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X219	2
22	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X219	1
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X935F	11
38	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X935F	12
39	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X206	1
40	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X206	2
41	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X936F	17
42	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X936F	16
43	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X924F	21
44	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X924F	20
45	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X909M	8
46	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X909M	7
47
48
49
50
51
52
53	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X030A	3
54	BOSCH	1928499468	0.50x0.40F	DKGN/WH	0.35	TESLA	MAT-110-130	X030A	4
55	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G031	13
56	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935F	28
57
58
59
60
61
62	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G031	5
63
64
65
66
67
68
69
70
71	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X031	45
72	BOSCH	1928499468	0.50x0.40F	YE/DKBU	0.35	TESLA	MAT-110-130	X031	44
