X566

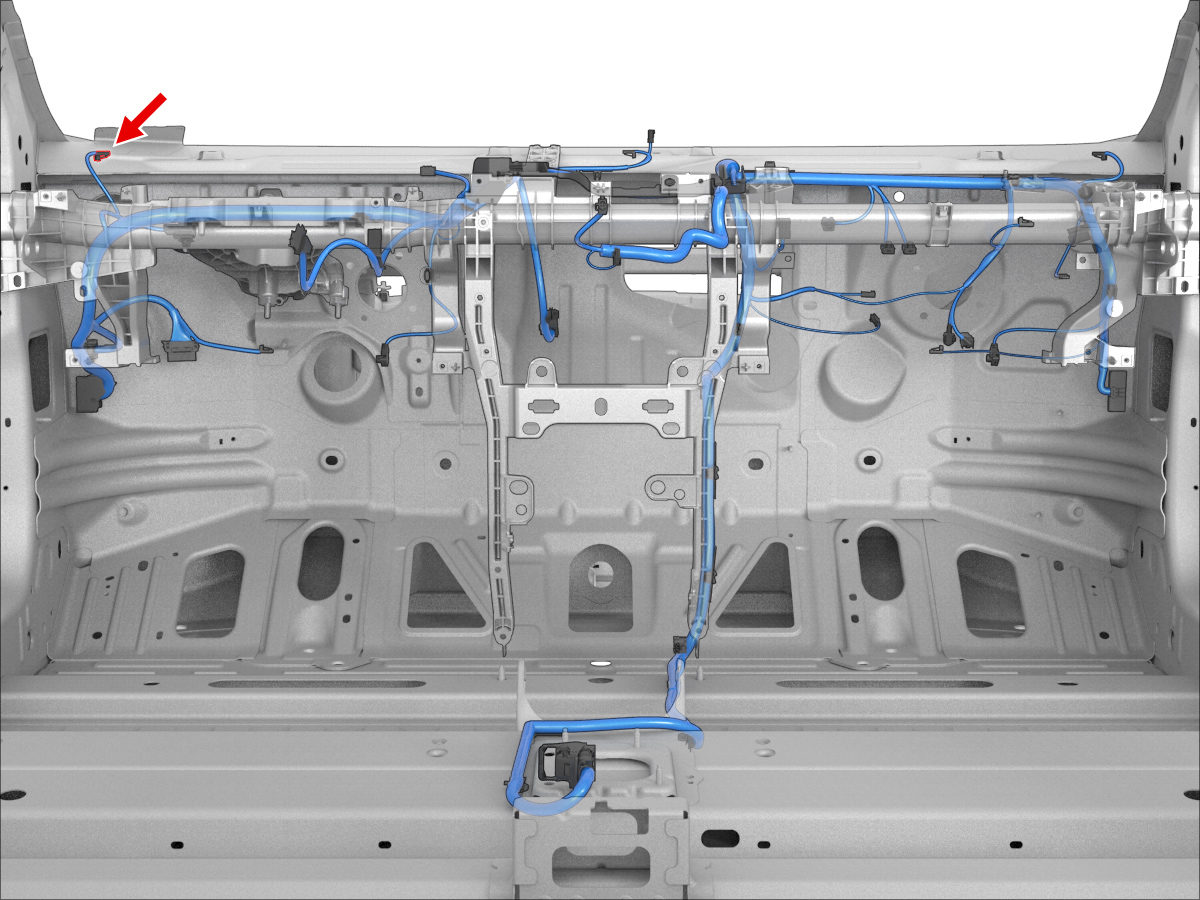

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13580635 | 0.64x0.64F | YE | 0.50 | X055 | 37 | ||
| 1 | AMP | 5-963715-1 | 0.63x0.63F | YE | 0.50 | X055 | 37 | ||
| 2 | DELPHI | 13580635 | 0.64x0.64F | VT | 0.50 | X055 | 38 | ||
| 2 | AMP | 5-963715-1 | 0.63x0.63F | VT | 0.50 | X055 | 38 |
