轮罩内件（前部）
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

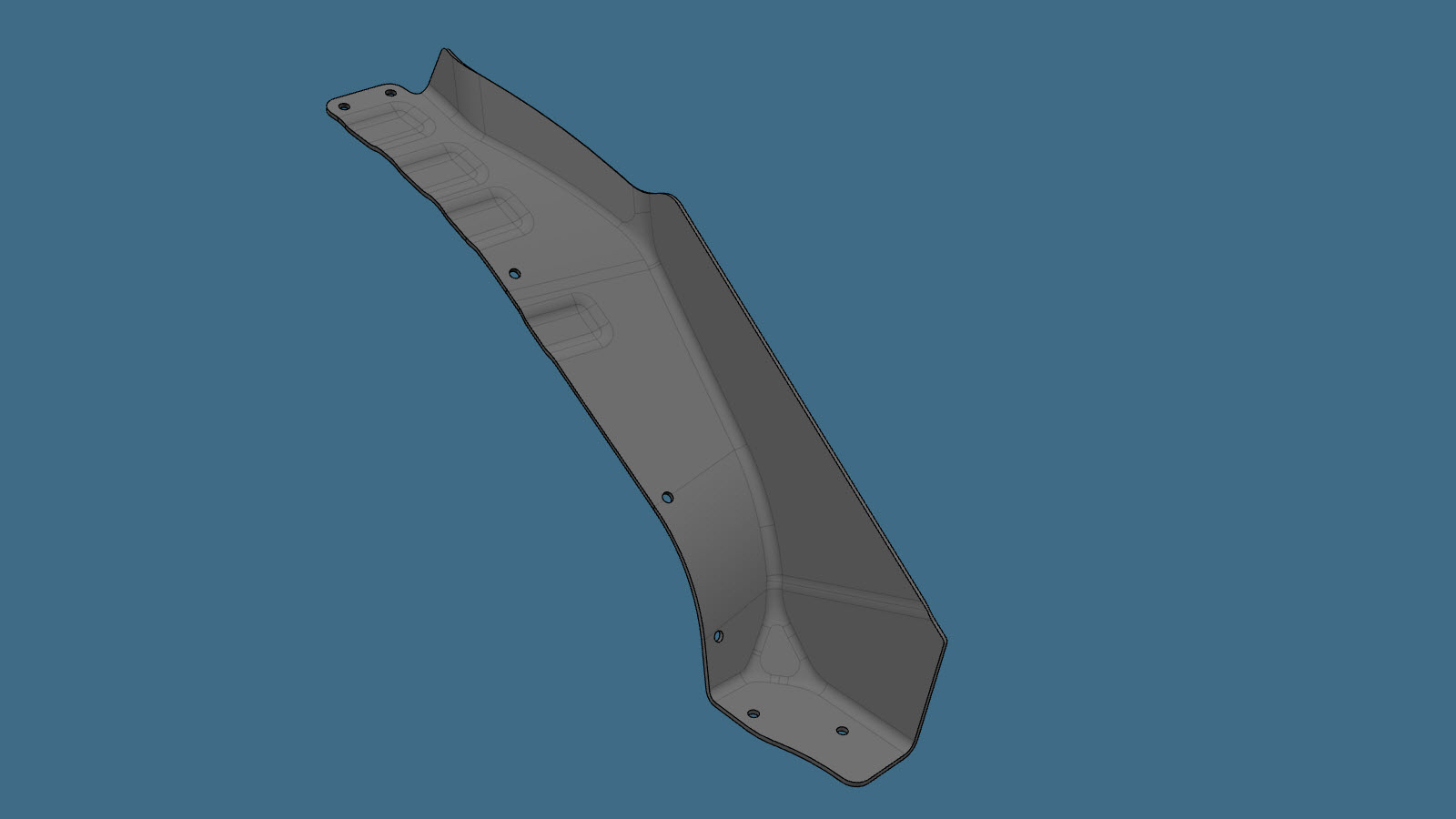

| 1 | MY RUB FRONT WHEELHOUSE SERVICE PANEL（轮罩前部） |
|
| 7 |
High Strength Structural Rivet, 6.5 mm
|
|
| 1 |
Flow Form Rivet S38
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-

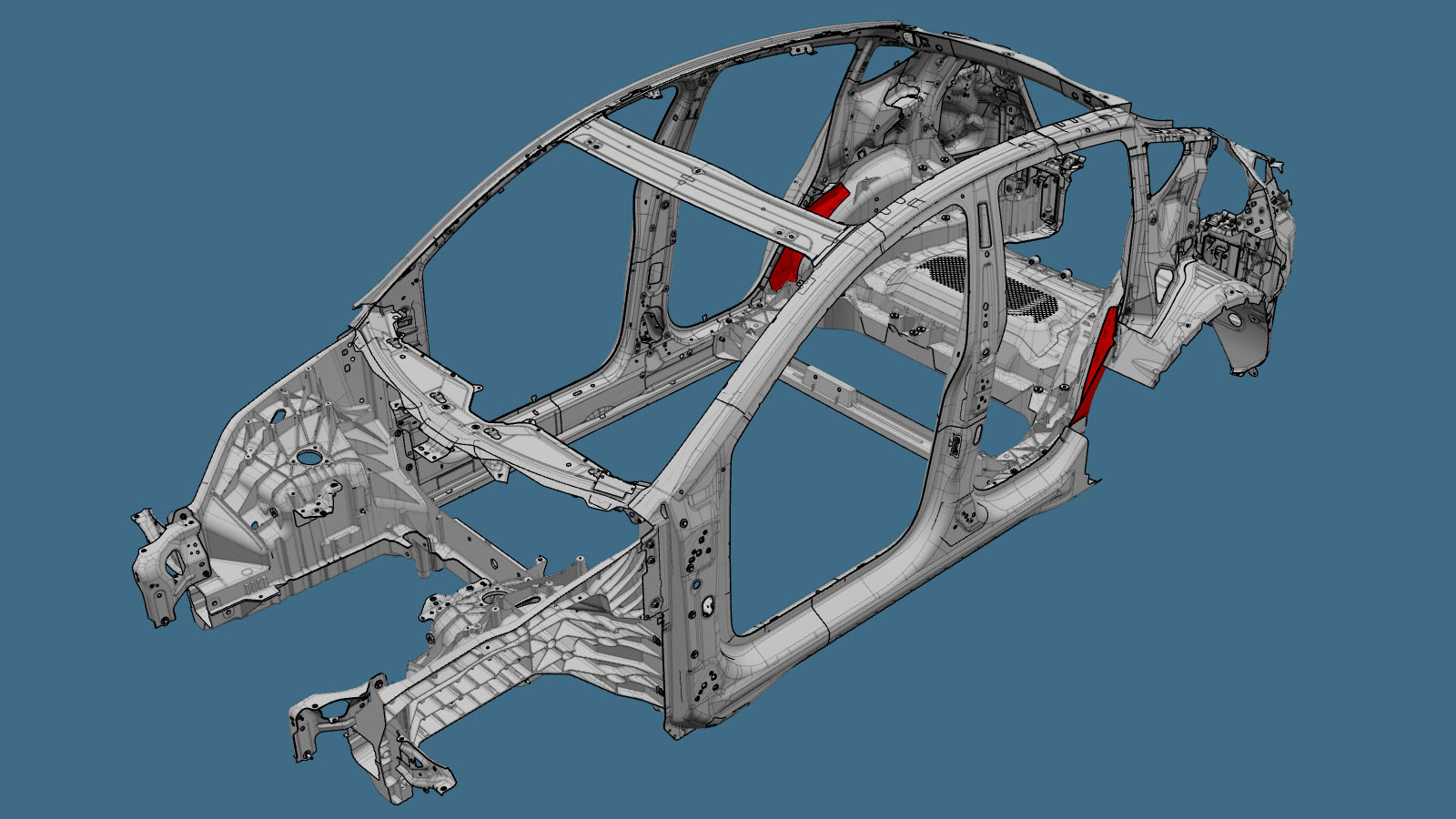

拆下轮罩加长板（前部）。
-
Remove the original component.
Reference
Line/Point

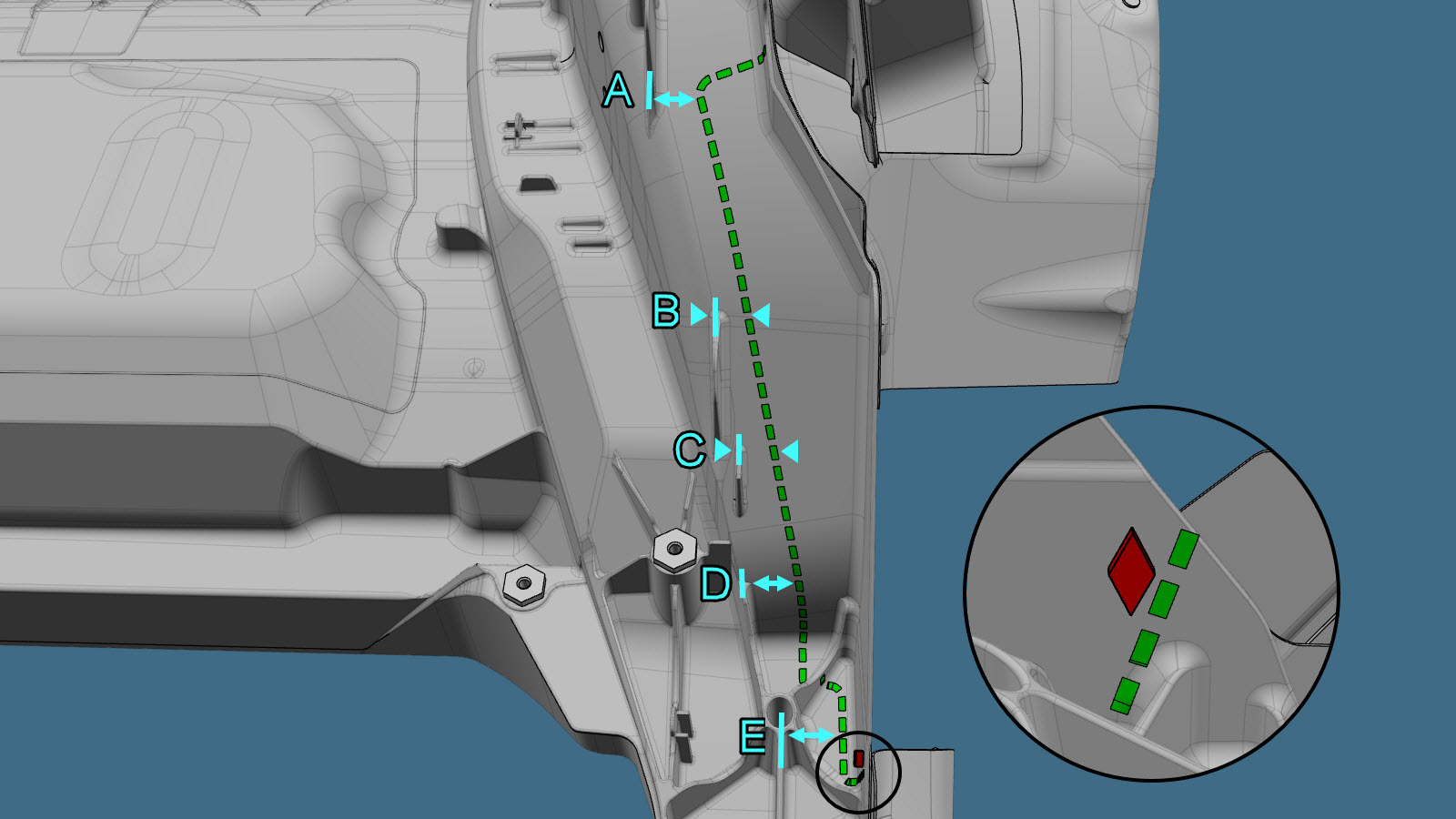

Cut Line
- A = 30 毫米
- B = 19 毫米
- C = 22 毫米
- D = 39 毫米
- E = 42 毫米
注所示测量值表示维修区域的外边界（即最大尺寸），也可根据实际情况切割出较小的维修区域。如果损坏程度超出该区域，请联系 Tesla 碰撞维修中心寻求帮助。注从后车底铸件去除材料时，应参照维修零件。根据需要进行粗略切割，直至维修零件与维修区域吻合。警告轮罩的剩余部分必须在内侧区域与维修零件重叠至少 25 毫米。
or
Factory SPRs
-
Prepare for installation.
注从轮罩底部安装维修零件。注A red X indicates a location where a factory-installed fastener is not being replaced. Reference
Line/Point
警告轮罩的剩余部分必须在内侧区域与维修零件重叠至少 25 毫米。

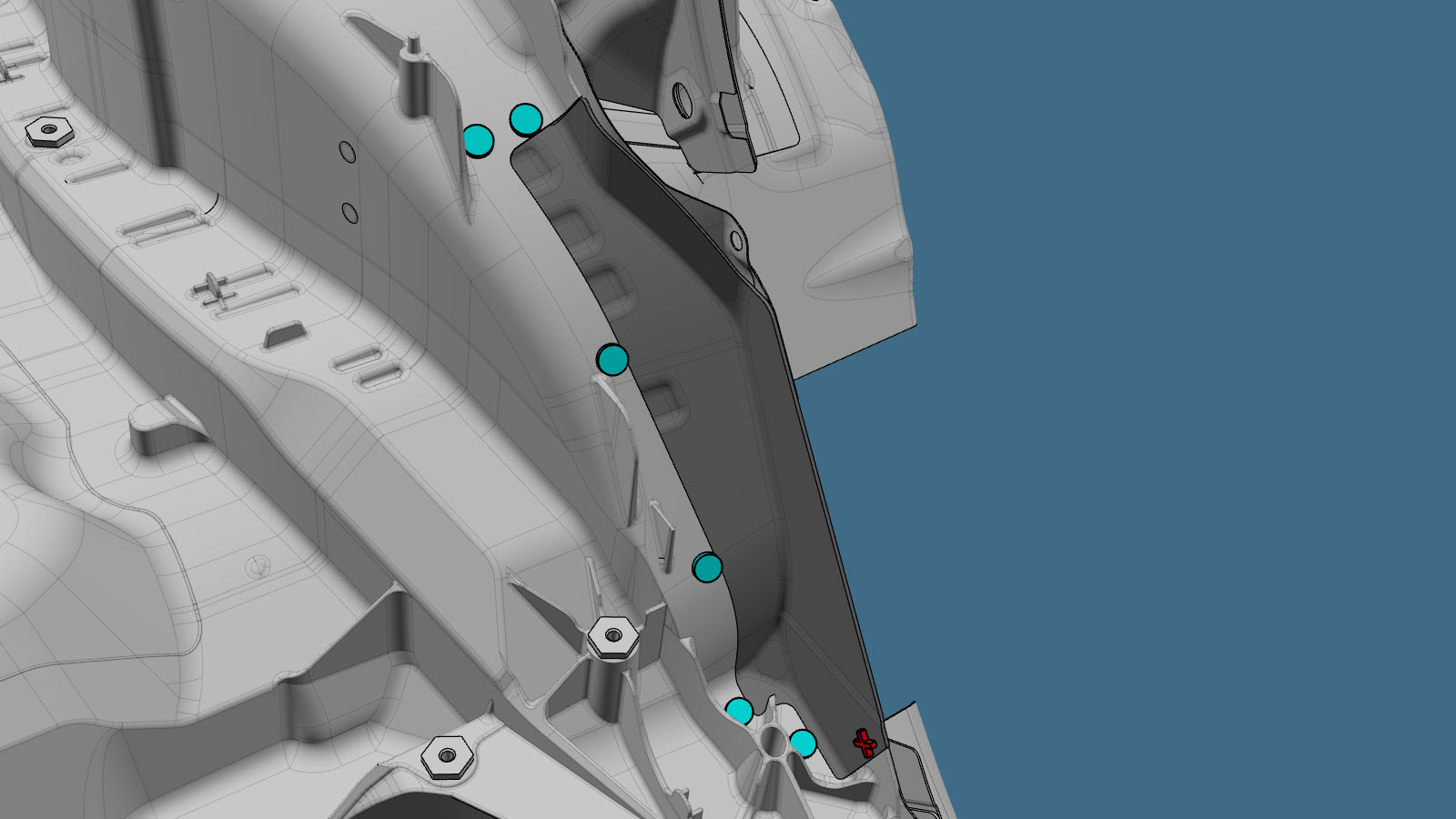

or High Strength Structural Rivets, 6.5 mm
or Flow Form Rivets, S38

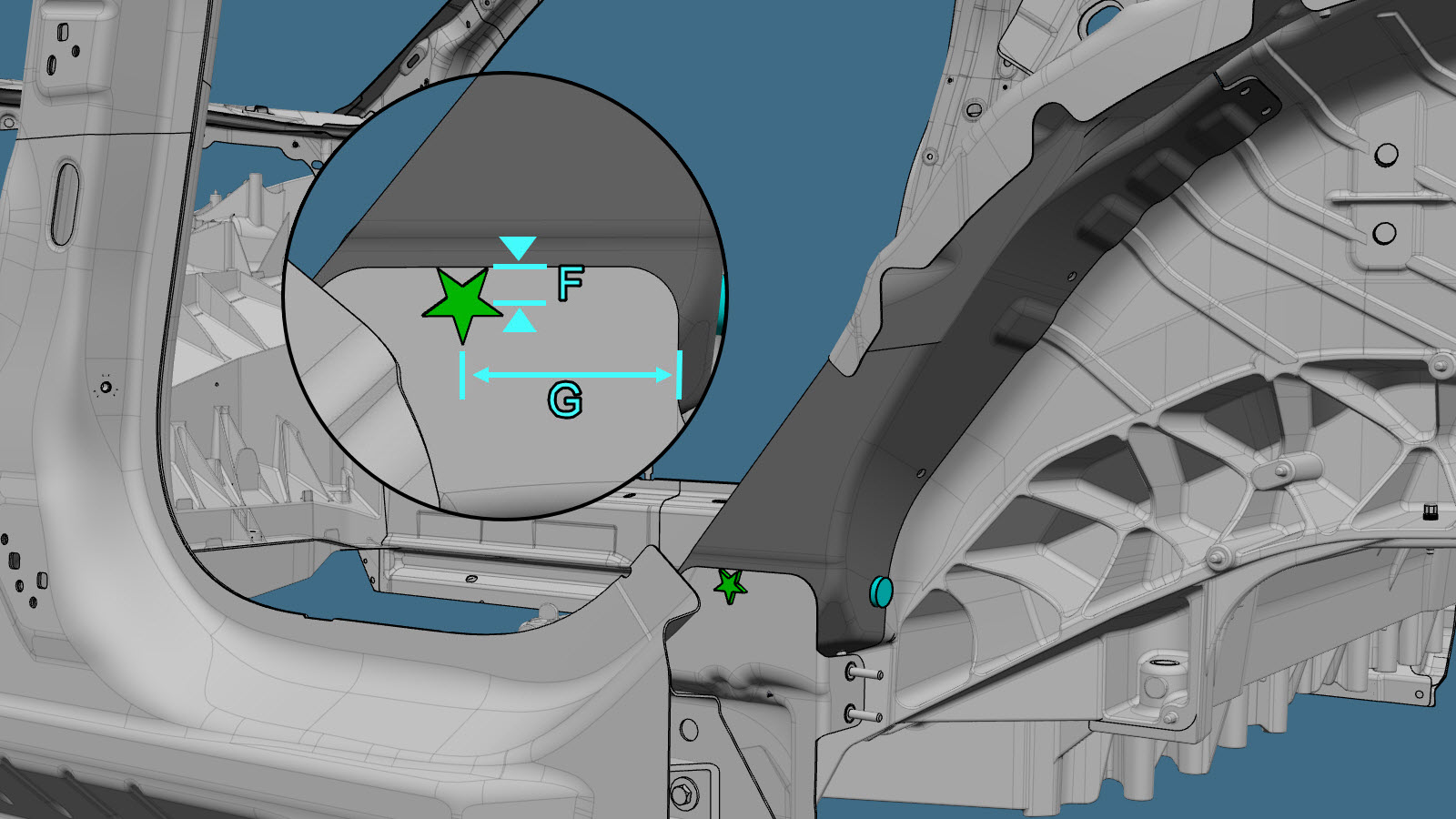

- F = 10 毫米
- G = 65 毫米
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
-
安装轮罩加长板（前部）。
- Perform any necessary post-repair operations.
