Rear Rail (Cast)

校正代码： 10102100702 10102100602 10102101602 10102101702 注意：除非本程序中有明确规定，否则上述校正代码涵盖执行本程序（包括关联碰撞维修程序）所需的所有碰撞维修工作。除非明确要求，否则请勿堆叠碰撞维修校正代码。添加执行此程序所需的任何关联机械程序。 校正代码： 10102100702 10102100602 注意：除非本程序中有明确规定，否则上述校正代码涵盖执行本程序（包括关联碰撞维修程序）所需的所有碰撞维修工作。除非明确要求，否则请勿堆叠碰撞维修校正代码。添加执行此程序所需的任何关联机械程序。 校正代码： 10102101602 10102101702 注意：除非本程序中有明确规定，否则上述校正代码涵盖执行本程序（包括关联碰撞维修程序）所需的所有碰撞维修工作。除非明确要求，否则请勿堆叠碰撞维修校正代码。添加执行此程序所需的任何关联机械程序。

零件清单

数量 描述 图片/备注
1 CASTING REAR RAIL SERVICE ASSEMBLY (Rear Rail - Cast)

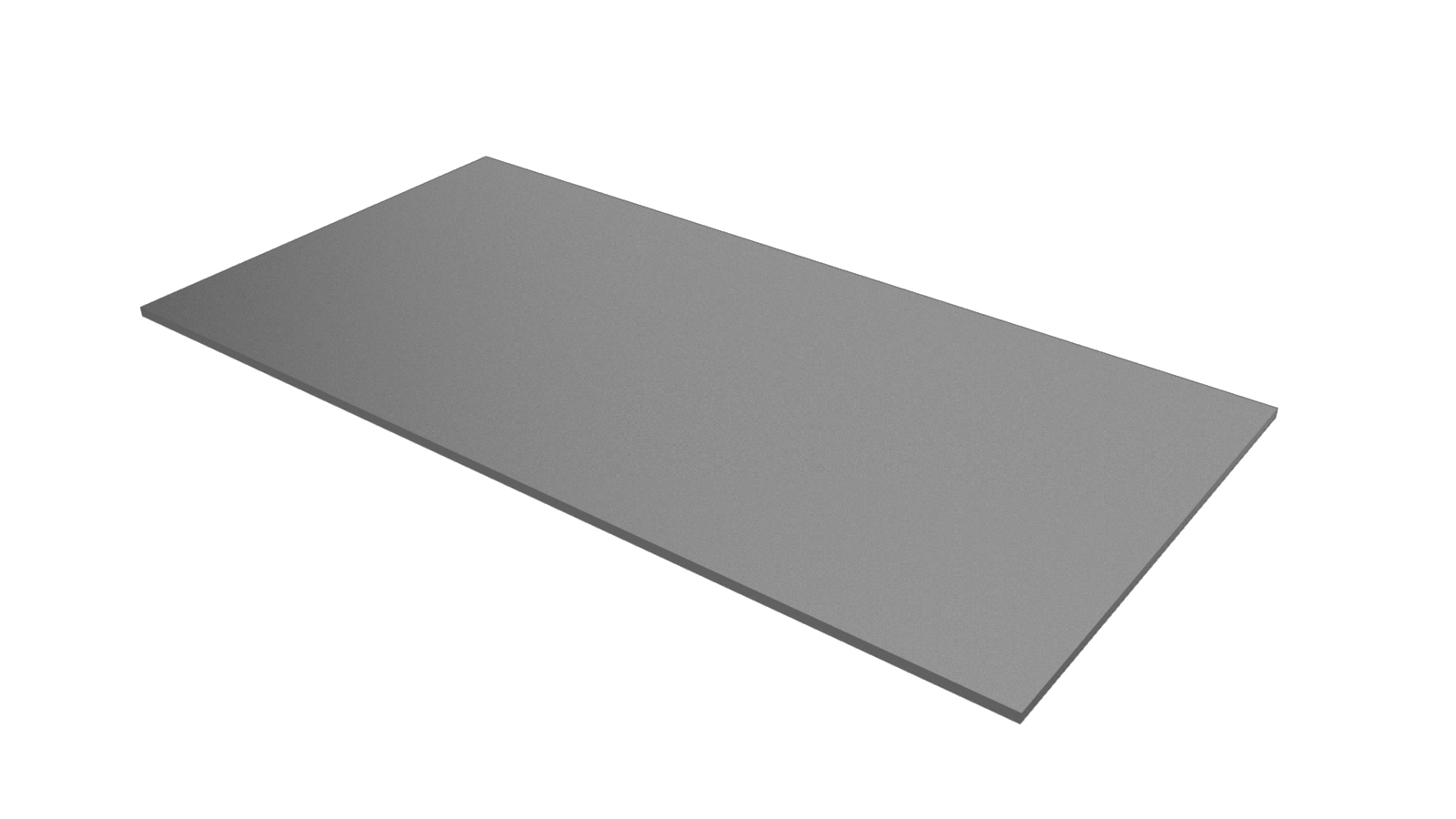

1 BUTYL FOIL PATCH 300X150x2MM (Butyl foil patch)

Tesla part number 1004969-00-A.
5 高强度结构型铆钉，6.5 毫米
4 螺栓，内六角梅花头 , M8X22,STL[10.9],PC Tesla part number 1056534-00-C.
4 螺母 , HEX,FLGS,M8-1.25X18.2[8]-TBD Tesla part number 1014348-00-A.

如需订购零件，请参阅零件目录，输入需维修车辆 VIN，查找车辆正确零件（以及零件号）。或者，也可以在零件目录中搜索，查找车辆专用零件。

维修程序

  1. Remove the 后面板侧方总成（适用于 1 件式车底铸件）.
  2. Remove the 侧翼支架（下部）.
  3. 拆卸原装部件。
    • 切割线
    Informational PurposesAn informational icon, calling your attention
    Note
    Cut just to the rear of the cast cut line on the original component, then trim the original component as necessary to fit. Keep any gaps as small as possible.

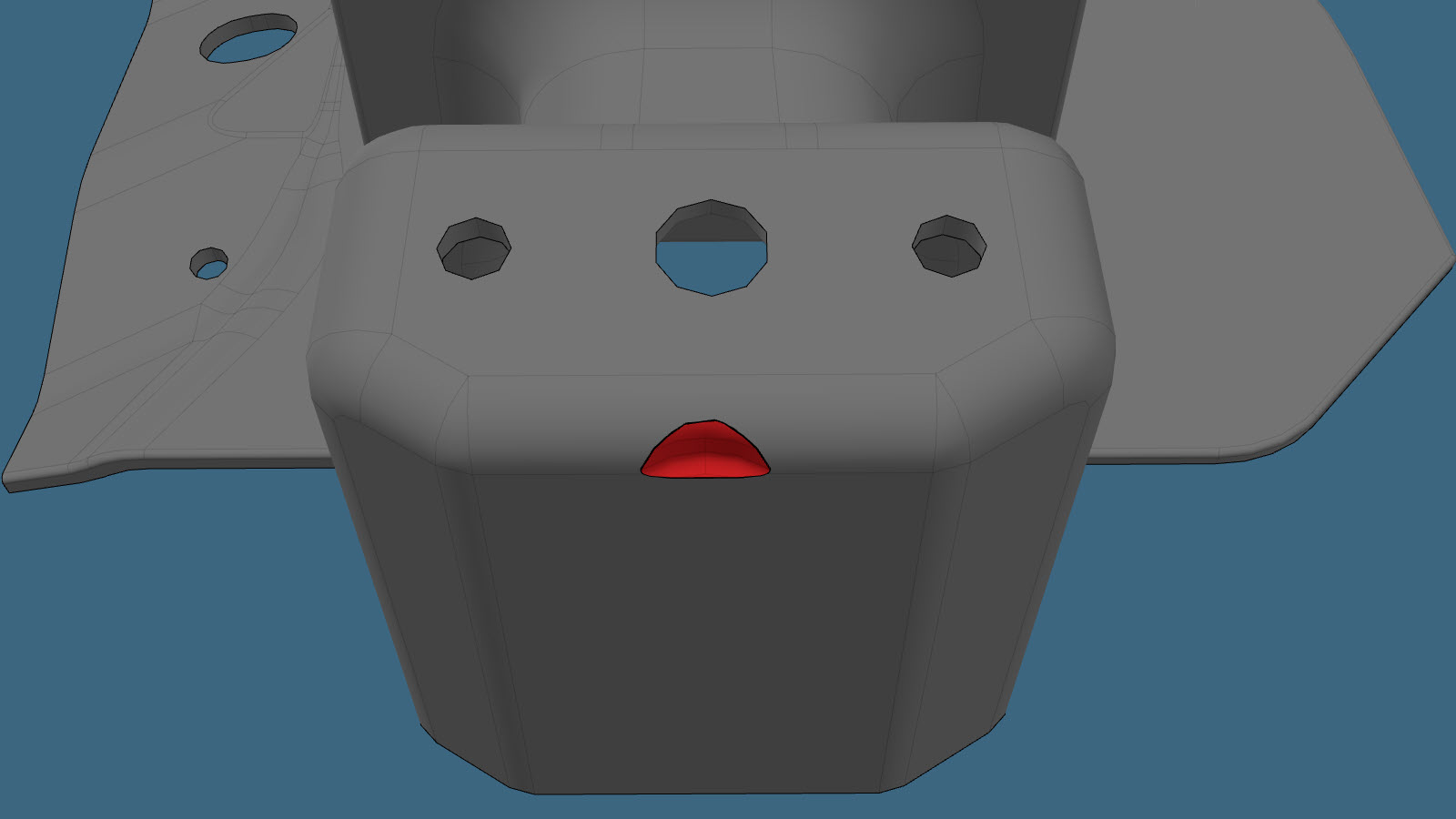

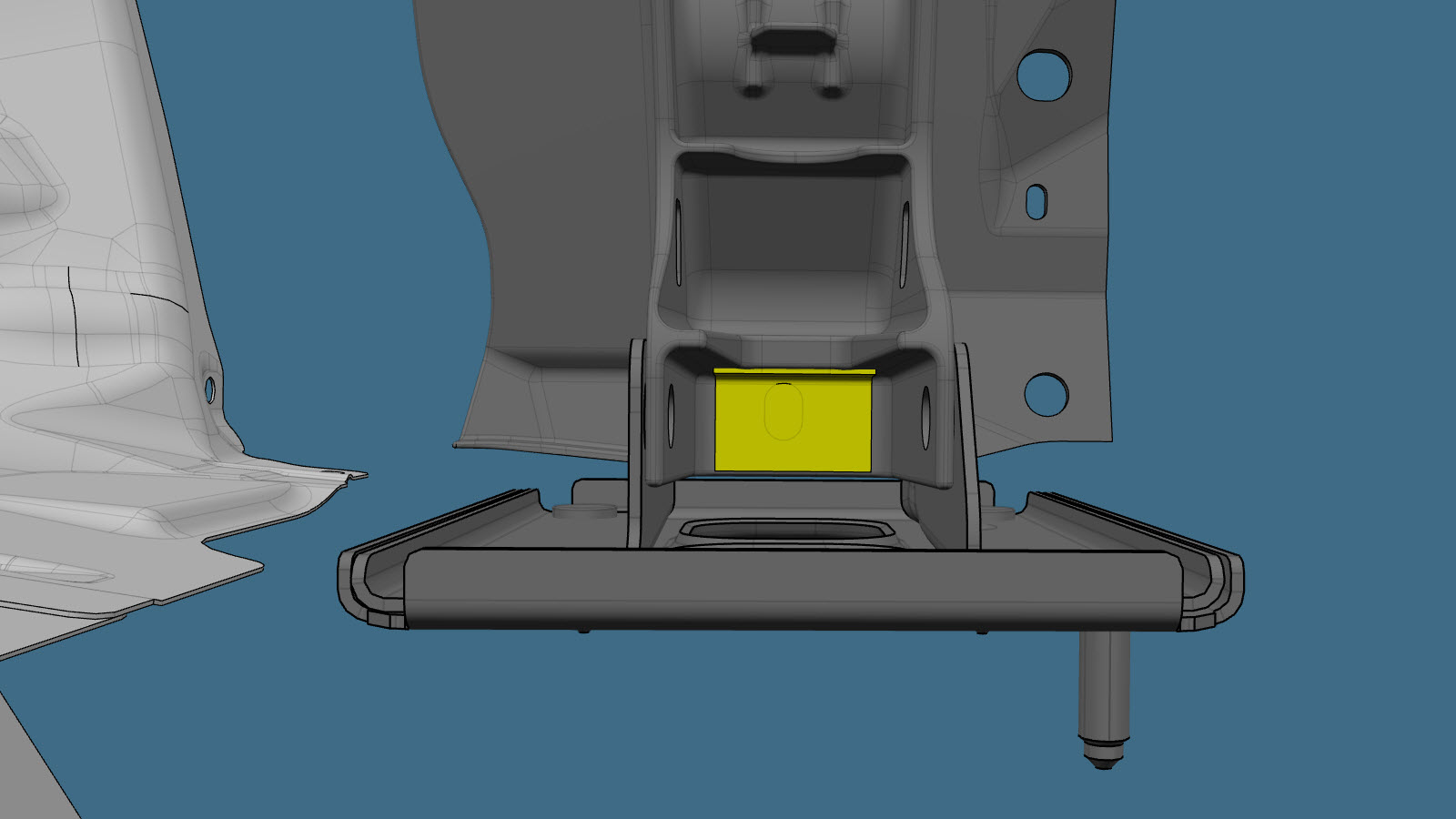

  4. Trim the service part in the indicated area.
    Lightly grind and smooth the edges of the service part in the area shown in red, and trim only as needed to ensure proper fitment. Do not grind more material than necessary, and do not cause a gap. Grinding may extend beyond the indicated area if necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    Keep the amount of material removed to the minimum necessary for proper fitment of the service part without introducing a gap. If a gap results from excessive grinding, contact Tesla Collision Repair for assistance.

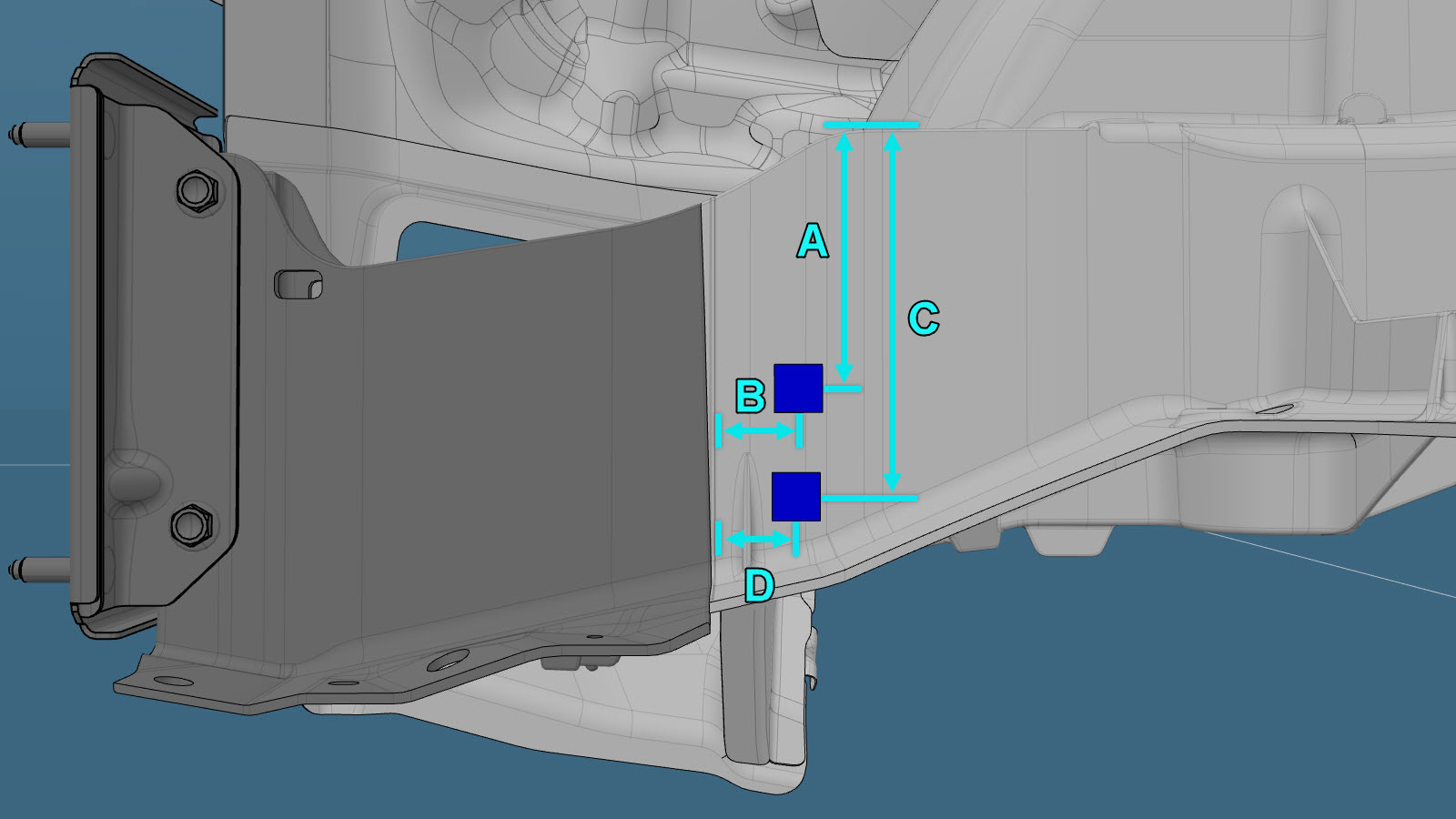

  5. 准备安装。
    或 高强度结构型铆钉，6.5 毫米

    螺栓，内六角梅花头

    • A = 108 mm.
    • B = 37 mm.
    • C = 152 mm.
    • D = 35 mm.
  6. 在车辆接合面以及新部件上涂抹结构型粘合剂。
  7. 安装新部件。
    Torque the bolts to 48 Nm.
  8. Apply seam sealer to the joint between the new component and the Cast Under Body.

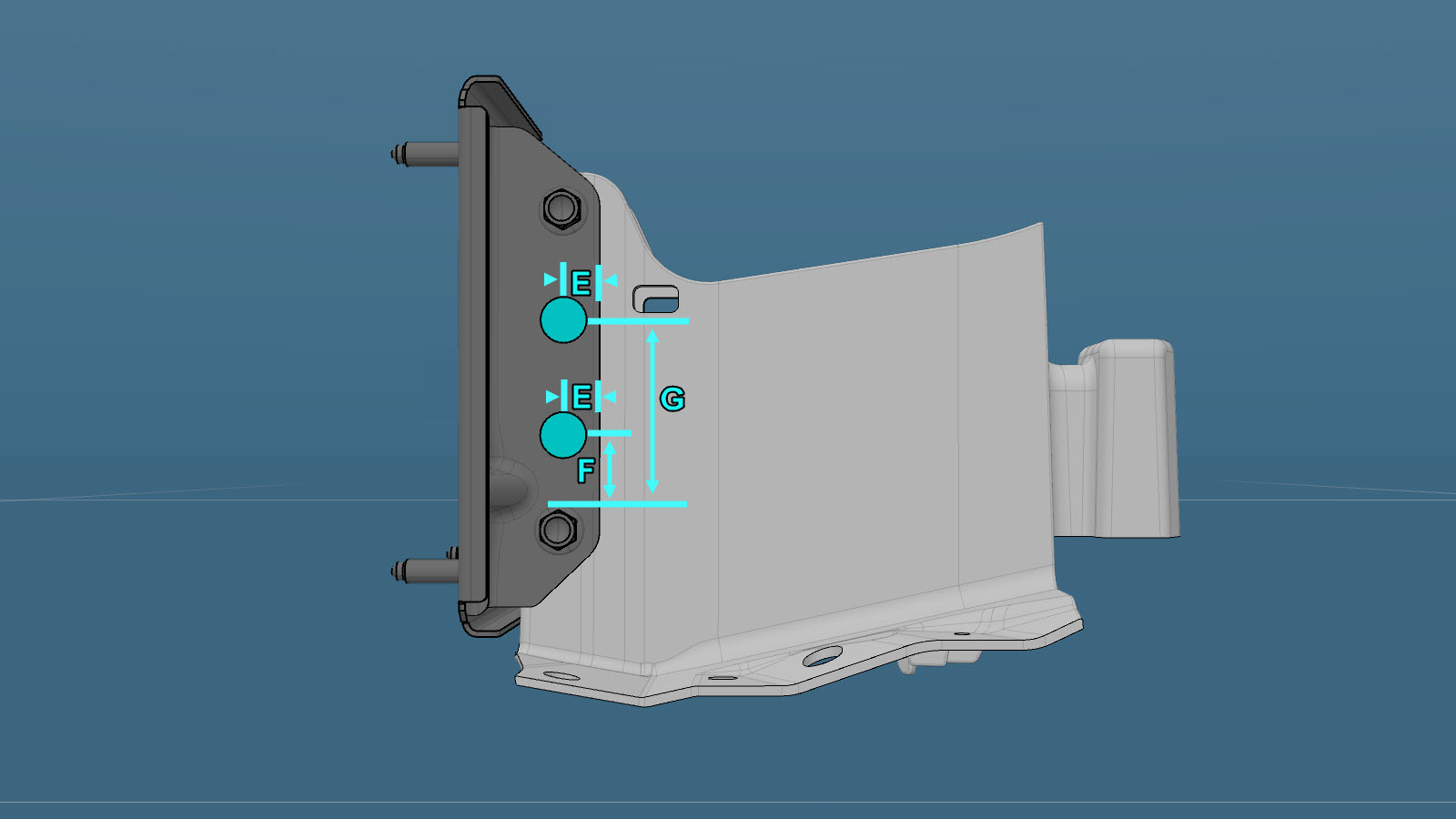

  9. Prepare to install rivets to secure the Rear Rail End Plate to the Rear Rail - Cast replacement component.
    或 高强度结构型铆钉，6.5 毫米
    Informational PurposesAn informational icon, calling your attention
    Note
    Position 1 rivet on the outboard side of the vehicle and position 2 rivets on the inboard side of the vehicle.
    • E = 15 mm.
    • F = 30 mm.
    • G = 80 mm.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not install the rivets at this time.
  10. If the new component does not have structural adhesive securing the Rear Rail End Plate and the Rear Rail, remove the Rear Rail End Plate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Retain the Rear Rail End Plate (it is installed in a later step).
  11. If the new component did not have structural adhesive securing the Rear Rail End Plate and the Rear Rail, apply structural adhesive to the mating surfaces on the Rear Rail End Plate and the Rear Rail.
  12. If the new component did not have structural adhesive securing the Rear Rail End Plate and the Rear Rail, install the Rear Rail End Plate.
  13. Install the rivets securing the new Rear Rail End Plate to the new Rear Rail.
    或 高强度结构型铆钉，6.5 毫米
  14. Install the 侧翼支架（下部）.
  15. Install the 后面板侧方总成（适用于 1 件式车底铸件）.

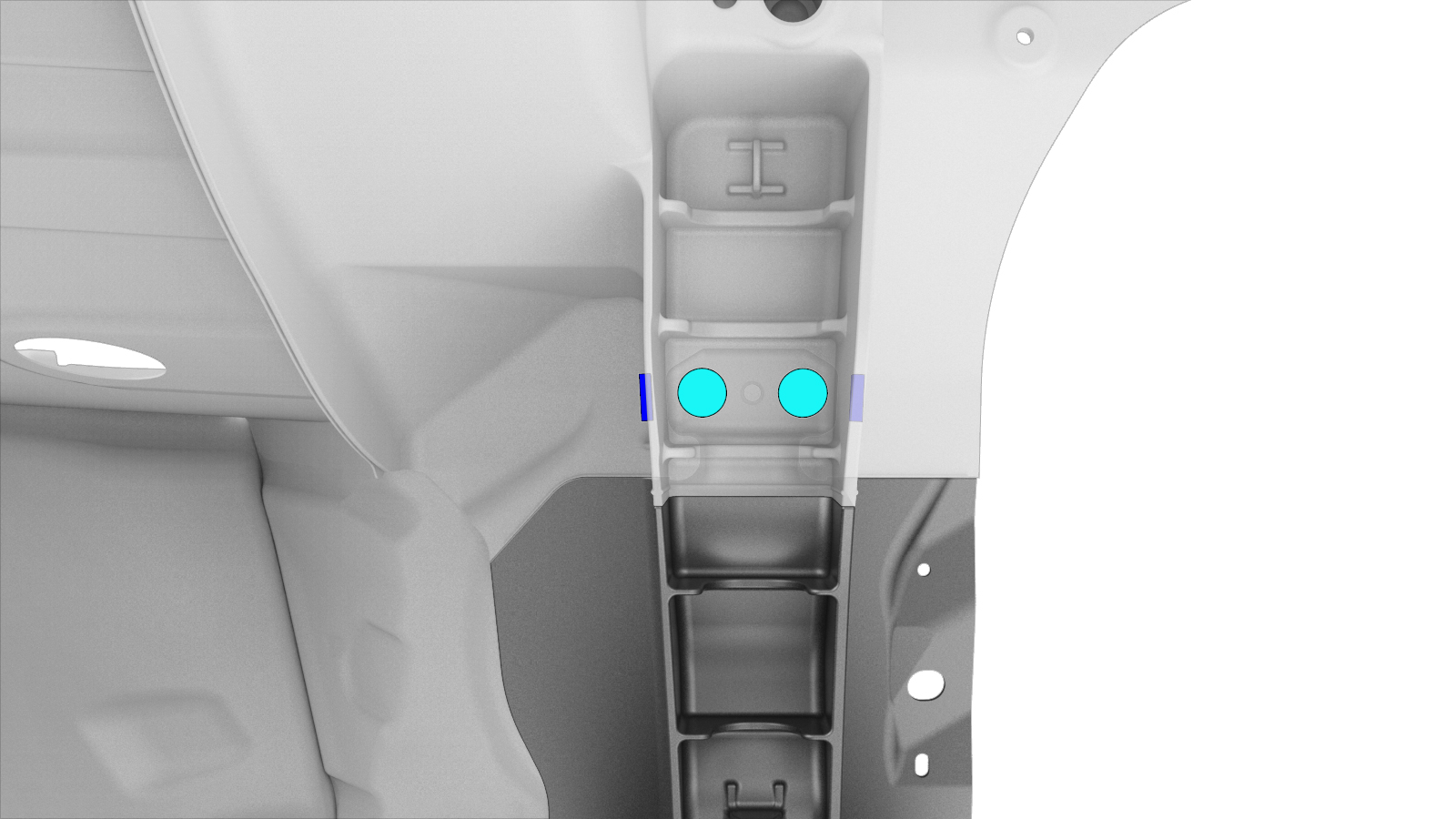

  16. Install the butyl foil patch as indicated.
  17. 执行任何必要的维修后操作。
