Sensor - Ambient Air Temperature - Compressor (Remove and Replace)

Correction Code 31102102

Removal

  1. Remove underhood storage unit for access (refer to procedure)
  2. Position hoses aside for access.

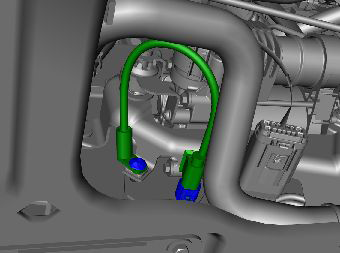

  3. Remove screw securing compressor ambient air temperature sensor (torque 2.5 Nm).
  4. Disconnect sensor harness lead.
  5. Rotate harness connector and release from bracket.
  6. Remove sensor.

Installation

  1. Installation procedure is the reverse of removal.
    Note
    Clean the affected areas before installation.
    CAUTION
    Replace all patchbolt(s).
