2020-05-12

Bracket - 12V Battery (Dual Motor) (Remove and Replace)

Correction code 17014012

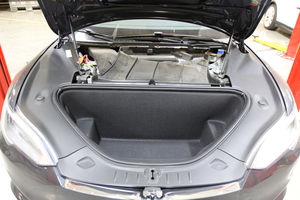

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  1. Open LH front door

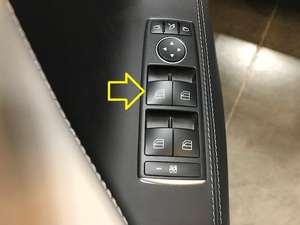

  2. Lower LH front window

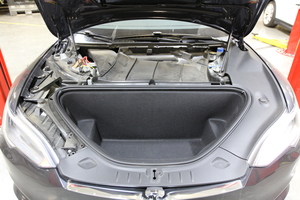

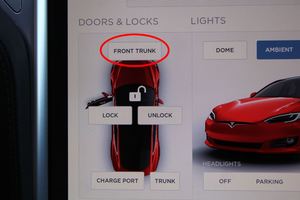

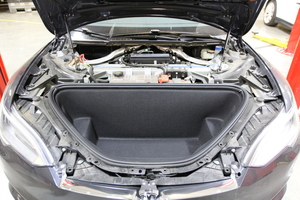

  3. Open hood

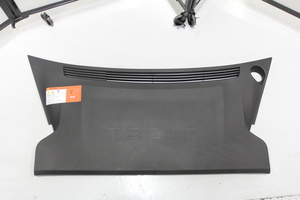

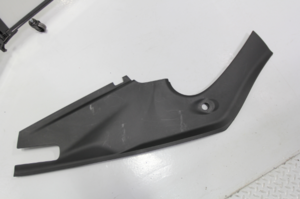

  4. Remove rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips

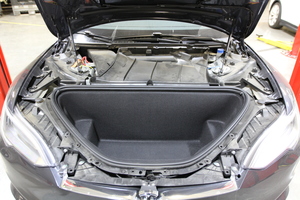

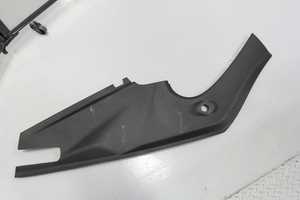

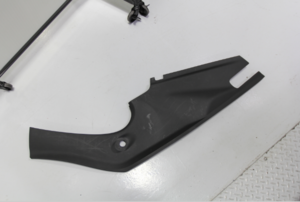

  5. Remove RH underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips

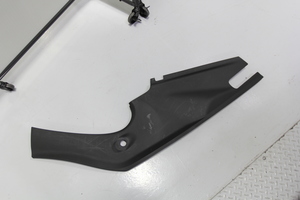

  6. Remove LH underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips

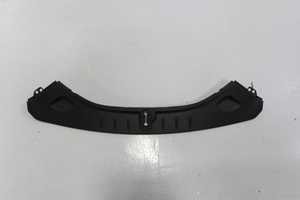

  7. Remove front underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips

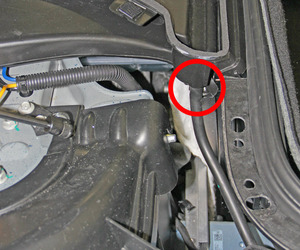

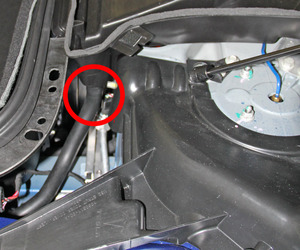

  8. Release drainage hoses from HEPA filter inlet duct
    Informational PurposesAn informational icon, calling your attention
    Note
    2x hoses

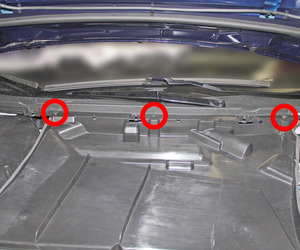

  9. Remove clips securing HEPA filter inlet duct to cowl panel
    Informational PurposesAn informational icon, calling your attention
    Note
    3x push clips
  10. Remove HEPA filter inlet duct
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips on HEPA filter

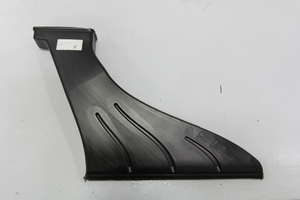

  11. Remove HEPA filter outlet duct from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Lift up, pull towards front of vehicle, then rotate clockwise

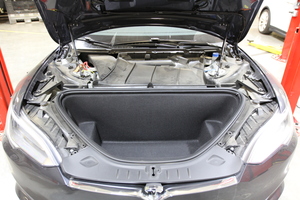

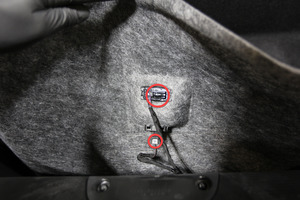

  12. Disconnect light and release switch connectors and remove underhood storage carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Release edge of carpet from underneath underhood storage unit seal

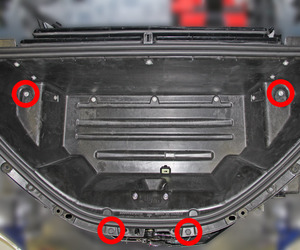

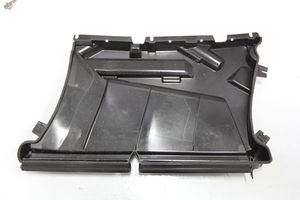

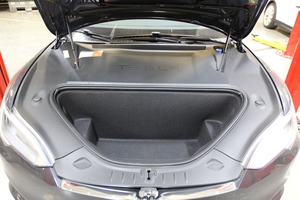

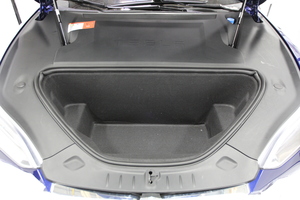

  13. Remove underhood storage unit
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm, 2x push clips

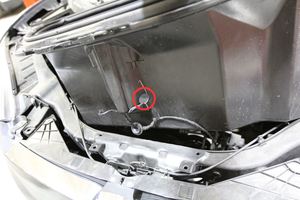

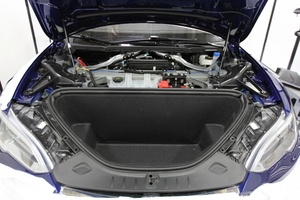

  14. Push wiring harness grommet through underhood storage unit and remove
    Informational PurposesAn informational icon, calling your attention
    Note
    1x grommet

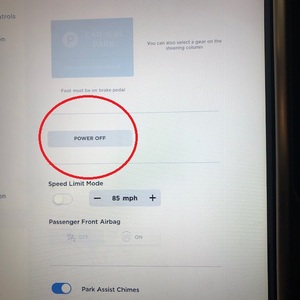

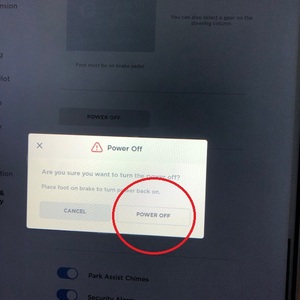

  15. Power down vehicle using MCU
    Informational PurposesAn informational icon, calling your attention
    Note
    Controls > E-brake & Power Off > Power off

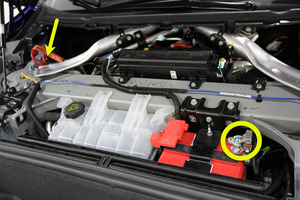

  16. Disconnect 12V negative terminal and First Responder Loop
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 10mm, 5 Nm, 1x connector, Wait at least 2 minutes before disconnecting modules or HV components

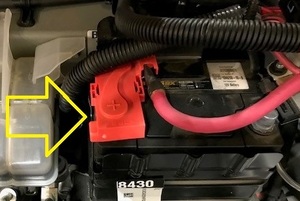

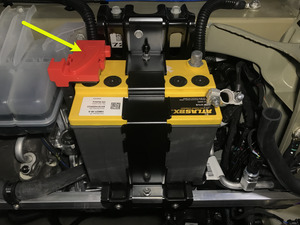

  17. Remove 12V positive terminal cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs
  18. Disconnect 12V positive terminal
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 10mm, 6 Nm

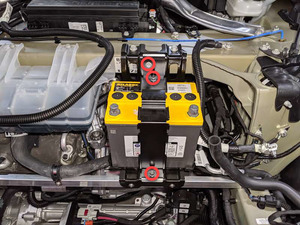

  19. Remove 12V battery strap from 12V battery bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 5 Nm, 2x nuts, 10mm, 5 Nm

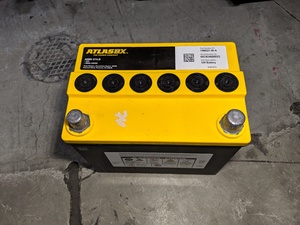

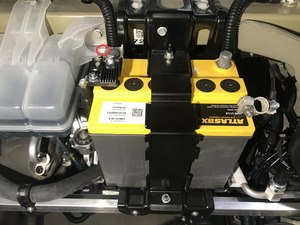

  20. Remove 12V battery from vehicle

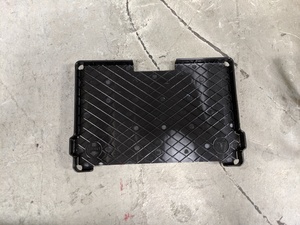

  21. Remove 12V battery tray from 12V battery bracket

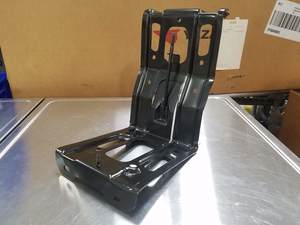

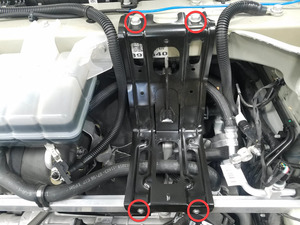

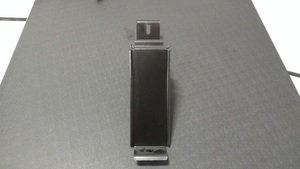

  22. Remove 12V battery bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 5 Nm, 2x bolts, 13mm, 15 Nm
  23. Install 12V battery bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 5 Nm, 2x bolts, 13mm, 15 Nm
  24. Install 12V battery tray onto 12V battery bracket
  25. Install 12V battery into tray
  26. Install 12V battery strap to 12V battery bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 5 Nm, 2x nuts,10mm, 5 Nm
  27. Connect 12V positive terminal
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 10mm, 6 Nm
  28. Install 12V positive terminal cover

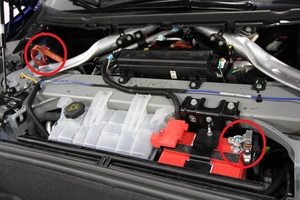

  29. Connect First Responder Loop and 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 10mm, 5 Nm, 1x connector
  30. Install underhood storage unit
    Informational PurposesAn informational icon, calling your attention
    Note
    Install harness and grommet
  31. Install bolts and clips securing underhood storage unit
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm, 2x push clips
  32. Install underhood storage carpet and reconnect light and release switch connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Secure edges of carpet underneath underhood storage unit seal
  33. Install HEPA filter outlet duct
  34. Install HEPA filter inlet duct
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, One on each side

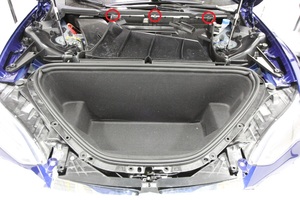

  35. Install clips securing HEPA filter inlet duct to cowl panel
    Informational PurposesAn informational icon, calling your attention
    Note
    3x push clips
  36. Secure drainage hoses to HEPA filter inlet duct
    Informational PurposesAn informational icon, calling your attention
    Note
    2x hoses
  37. Install front underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips
  38. Install LH underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips
  39. Install RH underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips
  40. Install rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips

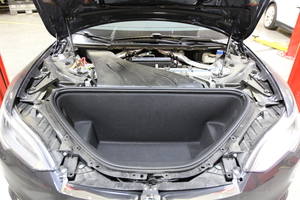

  41. Close hood
    Informational PurposesAn informational icon, calling your attention
    Note

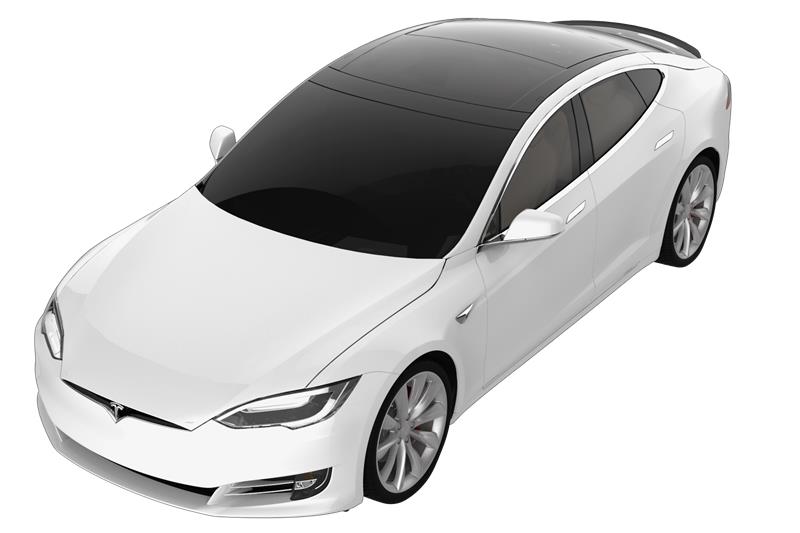

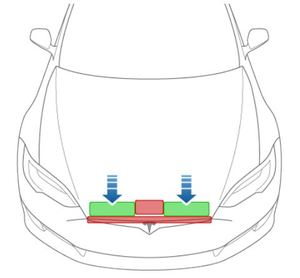

    Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood
  42. Raise LH front window
  43. Close LH front door
    ]
