X905M

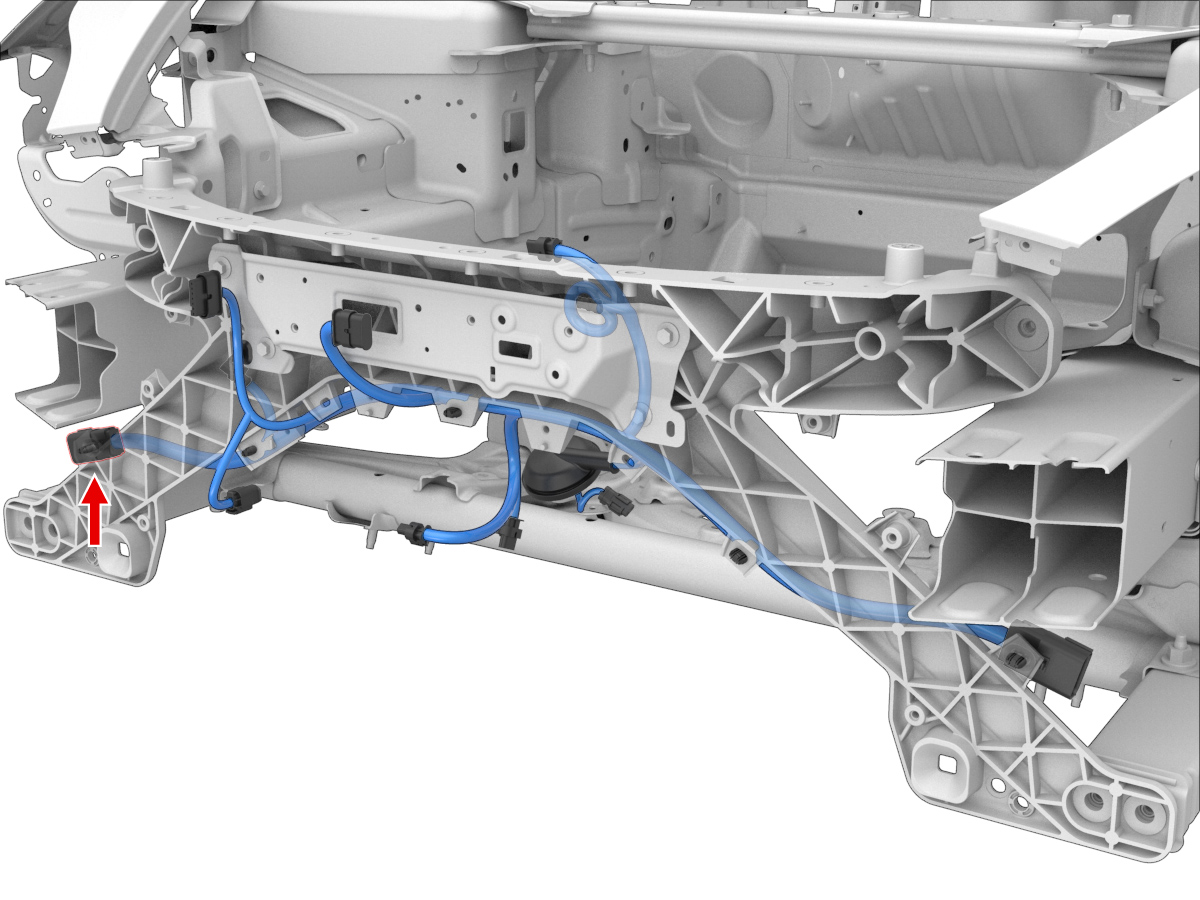

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | AMP | 1718758-1 | 1.2X0.6MS | OG | 0.35 | AMP | 967067-2 | X104 | 4 |
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | AMP | 2141868-1 | 1.2x0.6MS | GN | 0.13 | AMP | 967067-2 | X485 | 3 |
| 8 | AMP | 2141868-1 | 1.2x0.6MS | WH | 0.13 | AMP | 967067-2 | X485 | 1 |
| 9 | AMP | 1718762-1 | 1.2X0.6MS | BK | 1.00 | AMP | 967067-1 | ||
| 10 | AMP | 1718758-1 | 1.2X0.6MS | WH | 0.35 | AMP | 967067-2 | X104 | 5 |
| 11 | AMP | 1718758-1 | 1.2X0.6MS | YE | 0.35 | AMP | 967067-2 | X104 | 6 |
| 12 | AMP | 1718758-1 | 1.2X0.6MS | OG | 0.35 | AMP | 967067-2 | X210 | 1 |
| 13 | AMP | 1718758-1 | 1.2X0.6MS | YE | 0.35 | AMP | 967067-2 | X210 | 2 |
| 14 | |||||||||
| 15 | |||||||||
| 16 |
