X032

Tesla Part Number

1090045-00-A

Connector

SUMITOMO 6098-8119

Color

GY

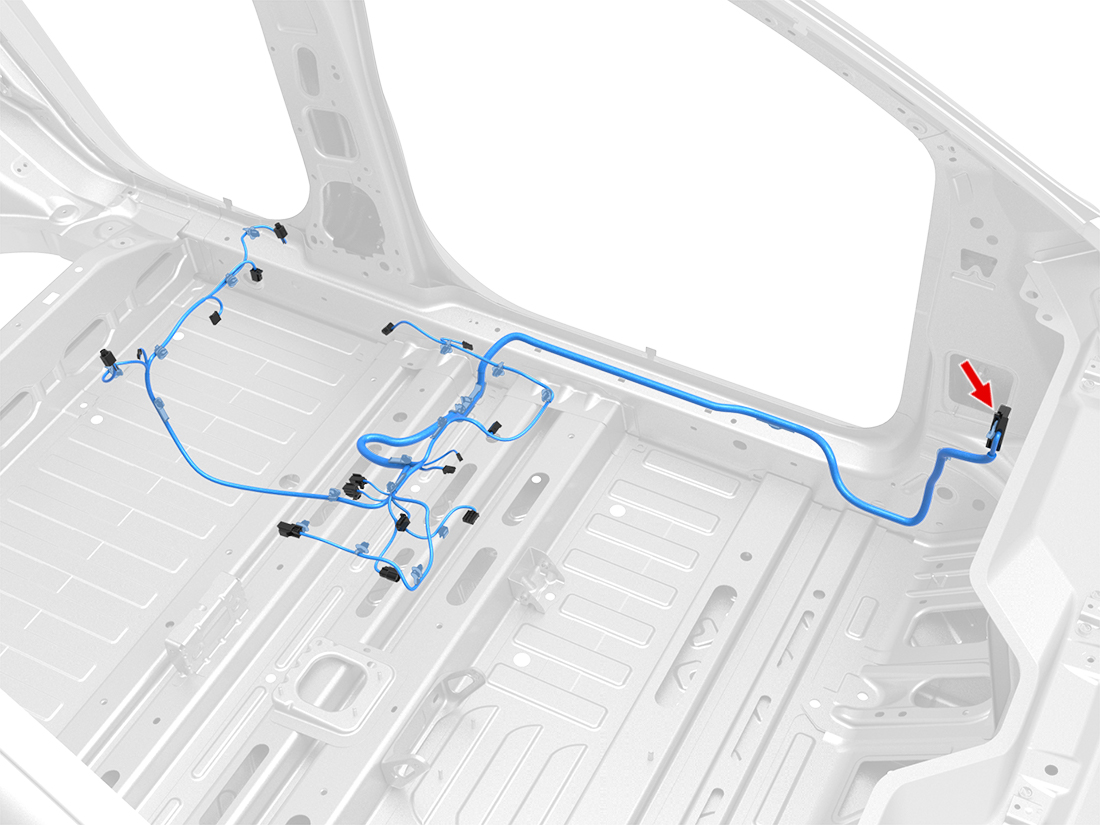

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X215	2
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X215	1
3	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X618	2
4	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X613	2
5	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X614	4
6	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35
7
8
9	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X613	1
10	SUMITOMO	8240-0213	1.5x0.64F	BK	0.75			X613	3
11
12	SUMITOMO	8240-0213	1.5x0.64F	BU	1.00			X614	1
13	SUMITOMO	8240-0213	1.5x0.64F	GY	1.00			X614	5
14
15
16
17	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X652	3
18	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X619	6
19	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X652	4
20
21
22	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X617	3
23
24	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X237	2
25	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X237	1
26	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X616	1
27	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X610	1
28
29
30
31	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X616	2
32	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X617	2
33	SUMITOMO	8240-0213	1.5x0.64F	WH	0.75			X618	1
34	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X618	3
35
36	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X621	1
37	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X621	3
38	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X652	1
39	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X652	2
40
41	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X622	1
42	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13			X631	3
43	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X631	1
44	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X631	2
45
46
47	SUMITOMO	8240-0215	1.5x0.64F	OG	0.35			X621	4
48	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X617	1
49	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X619	1
50
