X180

Tesla Part Number

1459574-00-A

Connector

KOSTAL 22400736187

Color

YE

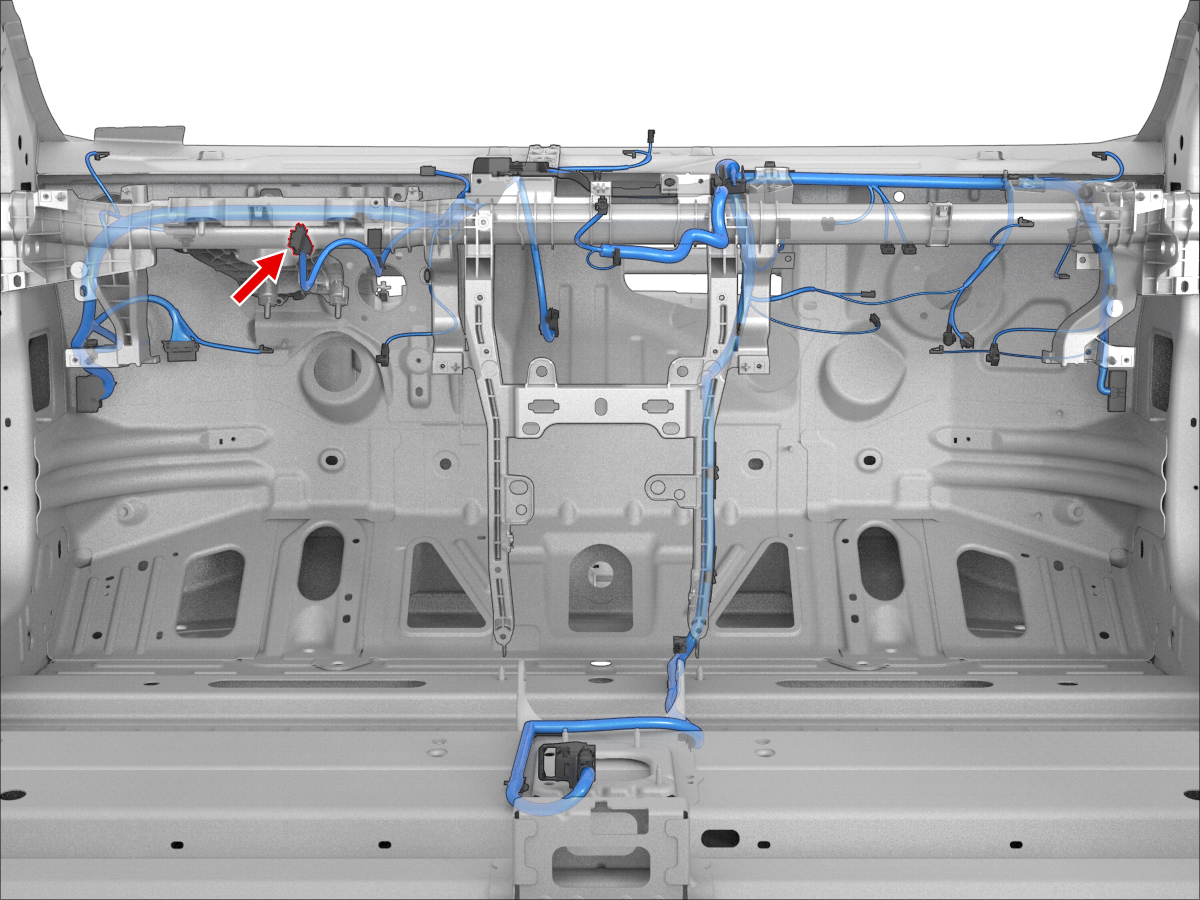

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	KOSTAL	32124734013	1.2x0.6F	GY	0.35			X035	1
2	KOSTAL	32124734013	1.2x0.6F	BU	0.35			X035	4
3	KOSTAL	32124734013	1.2x0.6F	VT	0.35			X035	5
4	KOSTAL	32124734033	1.2x0.6F	BK	0.75
