X316

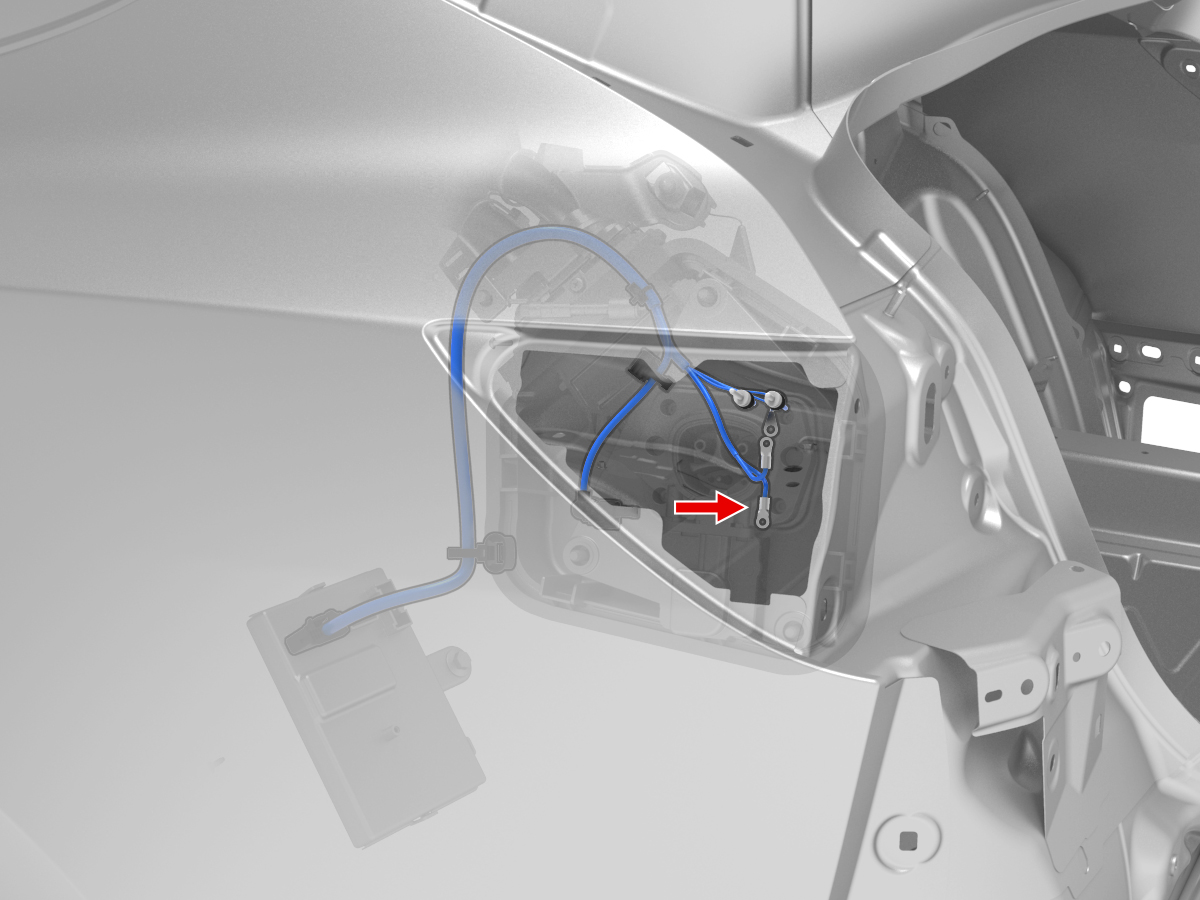

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GEN | PIA-TSNS | PIA | WH | 0.35 | X688 | 20 | ||
| 2 | GEN | PIA-TSNS | PIA | WH | 0.35 | X688 | 14 | ||
| 3 | unused | ||||||||
