X311

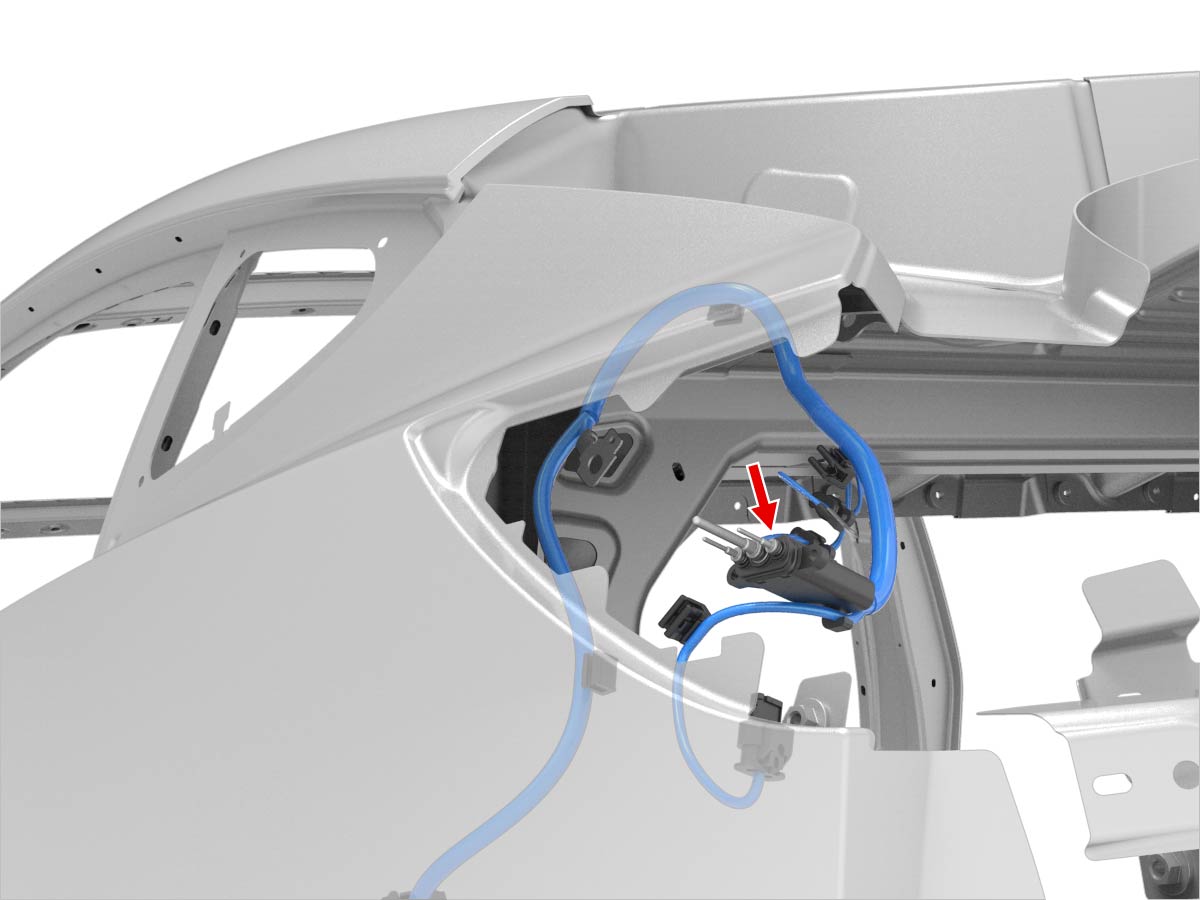

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| Prox | YE/GY | 0.50 | X688 | 4 | |||||
| GND | GN | 0.50 | X688 | 18 | |||||
| Pilot | WH/VT | 0.50 | X688 | 16 |
