X120

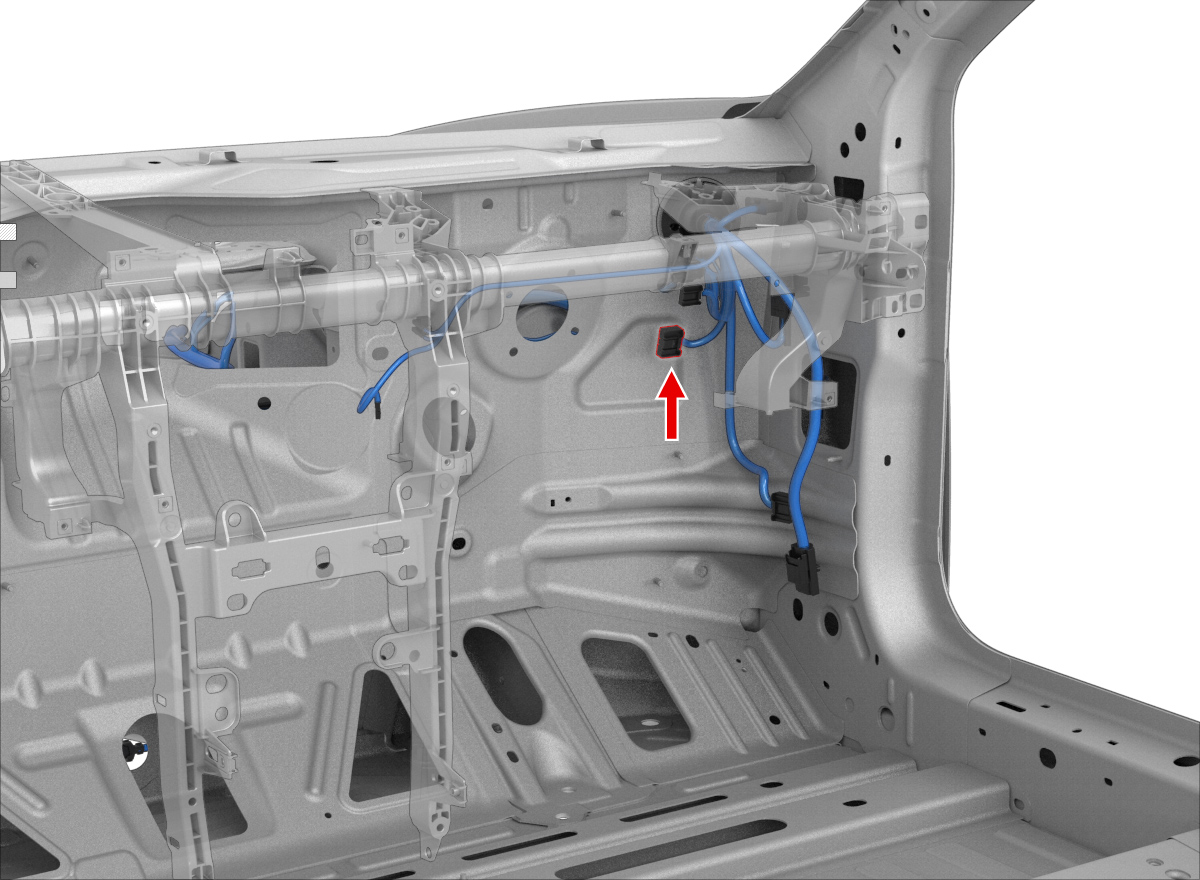

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.35 | X603 | 1 | ||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | SUMITOMO | 8240-0182 | 0.64x0.64F | BU | 0.13 | ||||
| 6 | SUMITOMO | 8240-0182 | 0.64x0.64F | WH | 0.13 | ||||
| 7 | |||||||||
| 8 | |||||||||
| 9 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD | 2.00 | X012 | 6 | ||
| 10 | |||||||||
| 11 | SUMITOMO | 8240-0215 | 1.5x0.64F | GN | 0.35 | X603 | 2 | ||
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | G012 | 5 |
