G019

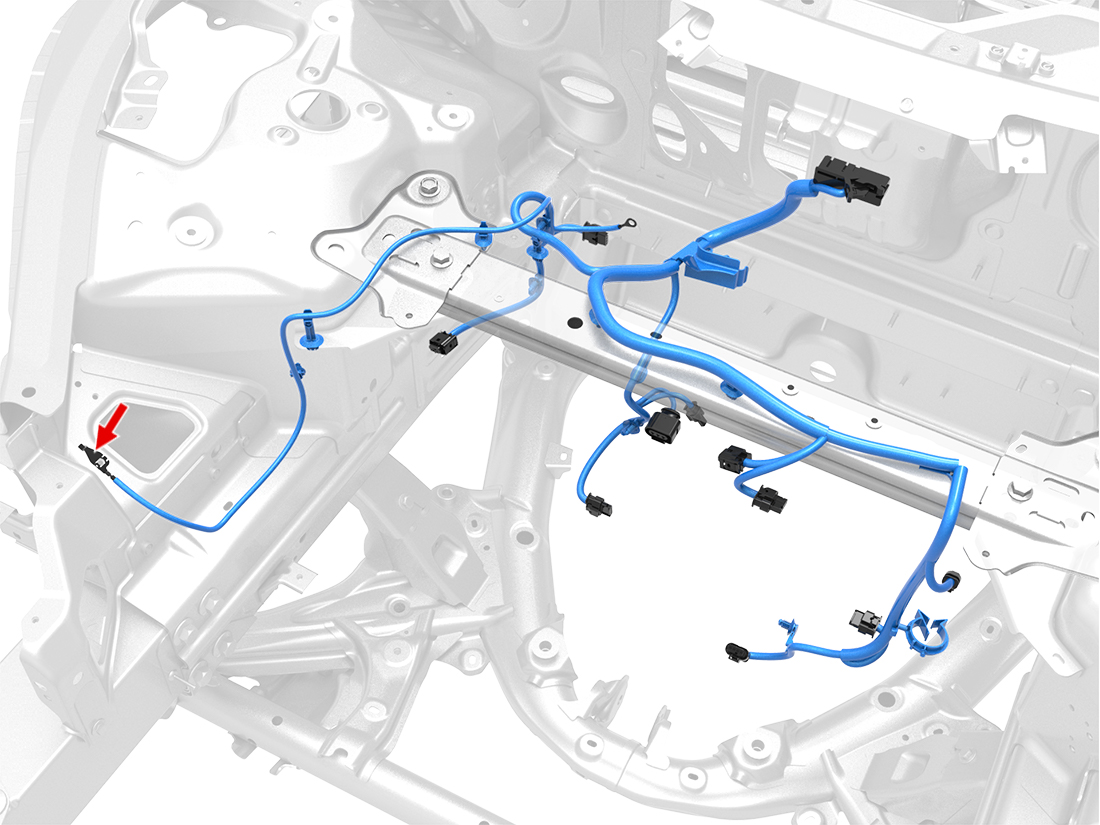

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8110-4387 | M6RING-L | BK | 4.00 | X531 | 1 |
