X930M

Tesla Part Number

1849227-00-B

Connector

KSE K30M31111

Color

NA

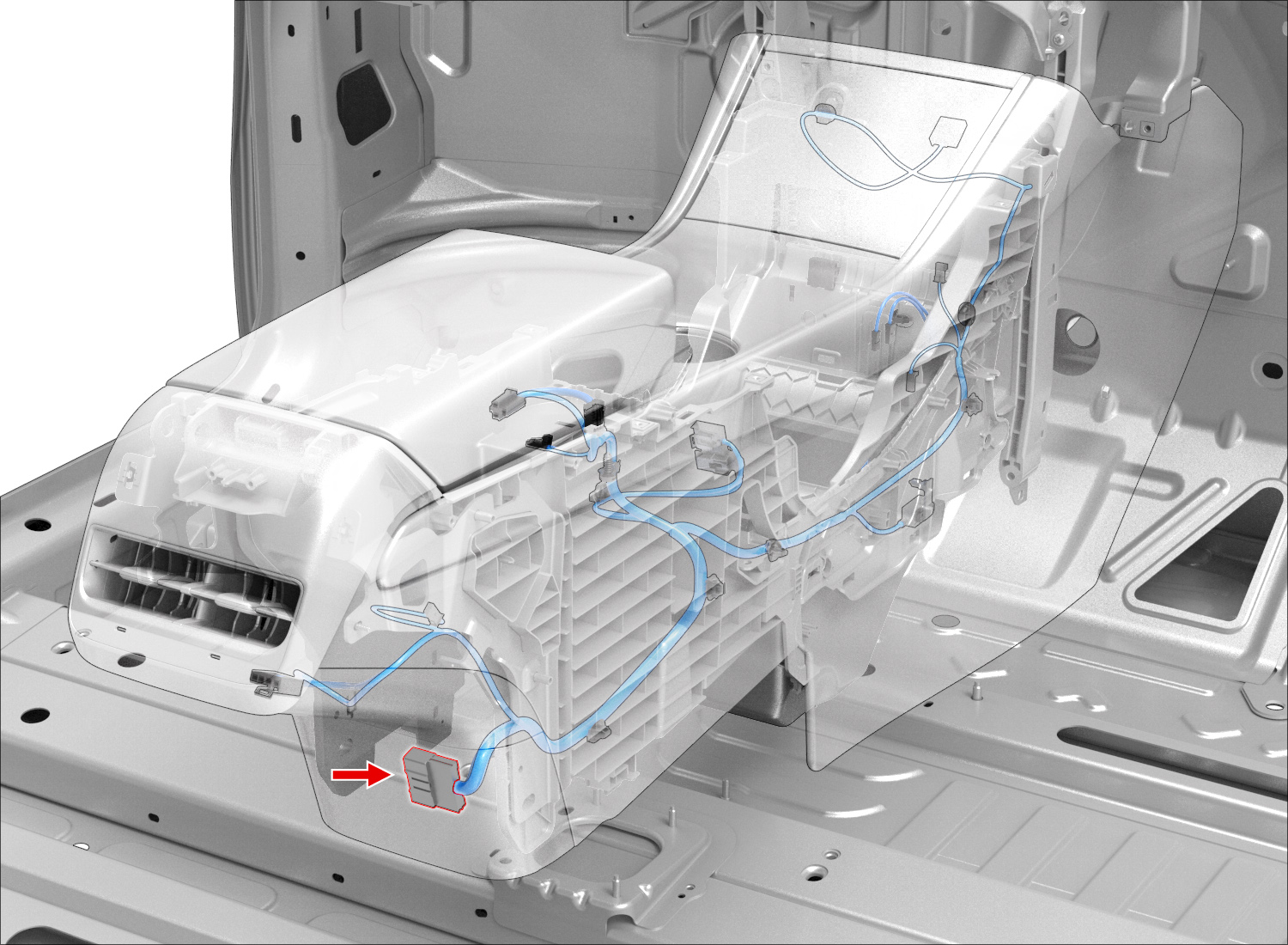

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X197	A
2	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X293	2
3
4	SUMITOMO	8230-4878	0.64x0.64M	YE	0.13			X492	1
5
6	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X694	A
7	SUMITOMO	8100-3623	0.64x0.64M	BK	0.50
8	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X294	2
9	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13			X492	7
10	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13			X492	8
11
12	SUMITOMO	8230-4878	0.64x0.64M	VT	0.13			X492	4
13	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13			X492	3
14	SUMITOMO	8230-4923	1.5x0.6M	BK	2.00			X195B	A
15	SUMITOMO	8230-4923	1.5x0.6M	YE	2.00			X195B	D
16	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13			X492	10
17	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13			X492	9
18	SUMITOMO	8230-4878	0.64x0.64M	YE	0.13			X492	6
19	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13			X492	5
20
21
22
23
24
25
26	SUMITOMO	8230-4923	1.5x0.6M	BN	2.00			X197	C
