X179

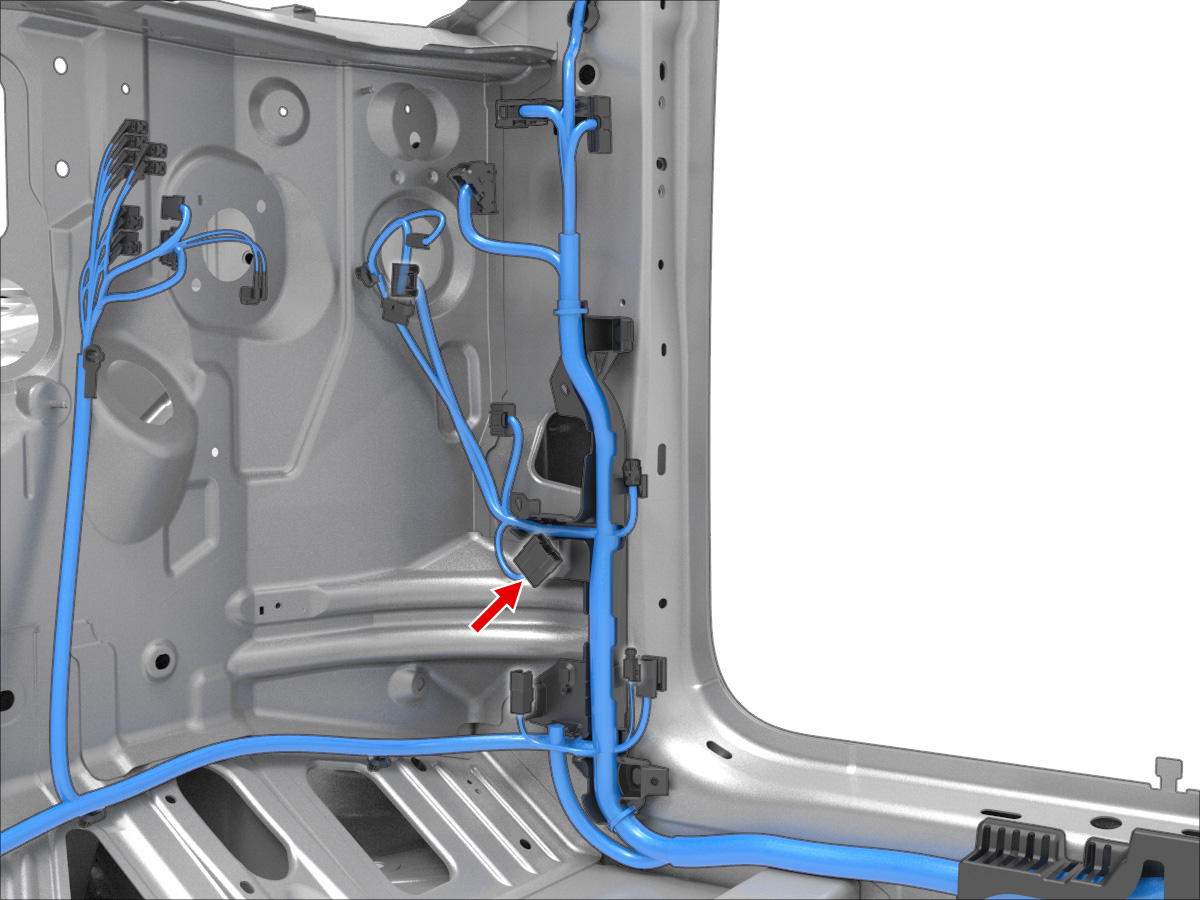

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE/LTBU | 0.35 | X051 | 13 | ||
| 3 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X051 | 29 | ||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | |||||||||
| 9 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN/WH | 0.35 | X050A | 30 | ||
| 10 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN | 0.35 | X050A | 31 | ||
| 11 | |||||||||
| 12 | |||||||||
| 13 | SUMITOMO | 8100-3623 | 0.64x0.64M | DKGN/WH | 0.35 | X050A | 13 | ||
| 14 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN | 0.35 | X050A | 14 | ||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
| 19 | |||||||||
| 20 | SUMITOMO | 8230-4925 | 1.5x0.6M | BK | 0.50 | G032 | 8 |
