X299

Tesla Part Number

1100844-00-A

Connector

AMP 2141404-1

Color

BK

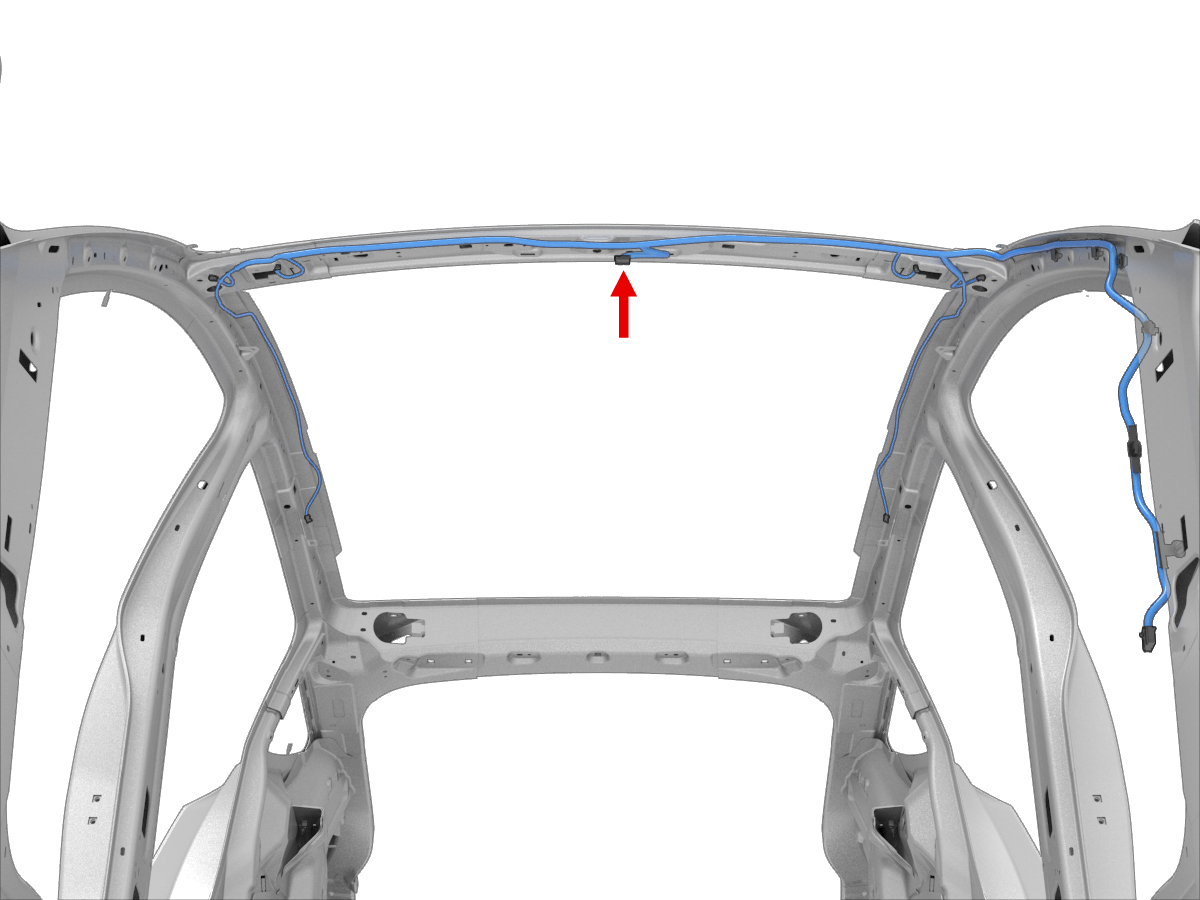

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	33124945	0.50x0.40F	VT	0.35			X981F	19
2	DELPHI	33124945	0.50x0.40F	BN	0.35			X981F	11
3	DELPHI	33124945	0.50x0.40F	RD	0.35			X290	1
4	DELPHI	33124945	0.50x0.40F	BU	0.35			X289	1
5	DELPHI	33124945	0.50x0.40F	WH	0.35			X287	2
6	DELPHI	33124945	0.50x0.40F	GN	0.35			X287	3
7	DELPHI	33124945	0.50x0.40F	GY	0.35			X981F	18
8	DELPHI	33124945	0.50x0.40F	BK	0.35			X981F	20
9	DELPHI	33124945	0.50x0.40F	BU	0.35			X286	2
10	DELPHI	33124945	0.50x0.40F	VT	0.35			X287	1
11	DELPHI	33124945	0.50x0.40F	RD	0.35			X286	1
12	DELPHI	33124945	0.50x0.40F	BK	0.35			X286	3
13	DELPHI	33124945	0.50x0.40F	BK	0.35
14	DELPHI	33124945	0.50x0.40F	BN	0.35			X290	2
15	DELPHI	33124945	0.50x0.40F	BK	0.35			X289	2
16	DELPHI	33124945	0.50x0.40F	GY	0.35			X981F	16
17	DELPHI	33124945	0.50x0.40F	VT	0.35			X981F	7
18	DELPHI	33124945	0.50x0.40F	RD	0.35			X981F	10
19	DELPHI	33124945	0.50x0.40F	GN	0.35			X981F	8
20	DELPHI	33124945	0.50x0.40F	TN	0.35			X981F	9
