X037

Tesla Part Number

1043176-00-A

Connector

SUMITOMO 6098-4756

Color

NA

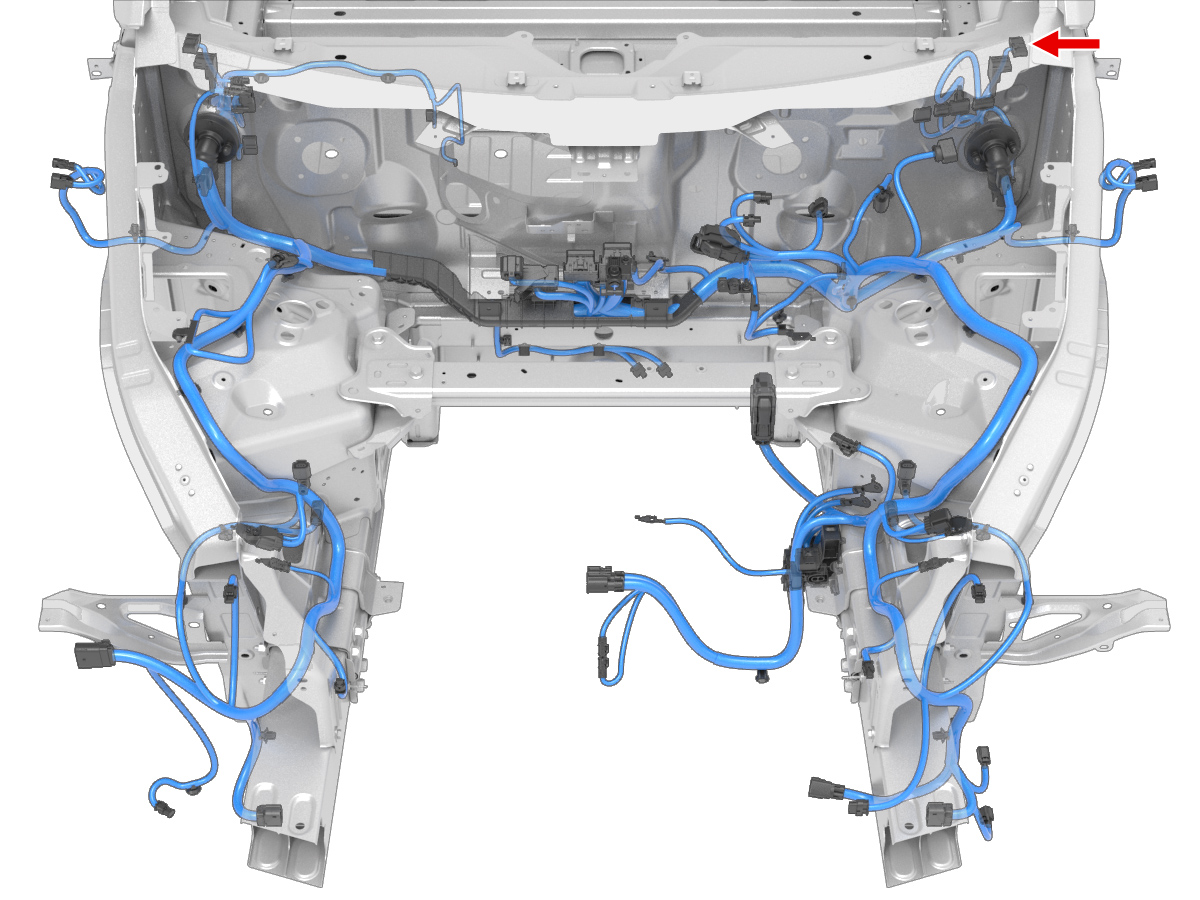

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2
3	SUMITOMO	8100-3625	0.64x0.64F	DKGN/WH	0.35
4	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35
5	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X010	33
6	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X010	18
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X202	1
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X202	2
9
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X070	35
11
12	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X170	4
13	SUMITOMO	8100-3625	0.64x0.64F	DKGN/WH	0.35			X170	3
14	SUMITOMO	8100-3625	0.64x0.64F	DKGN/WH	0.35			X121	9
15	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X121	10
16	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X057	9
17	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X057	8
18
19
20	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X203	1
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X203	2
22
23
24	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X070	15
25	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X070	36
26
27
28	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X908M	8
