X909M

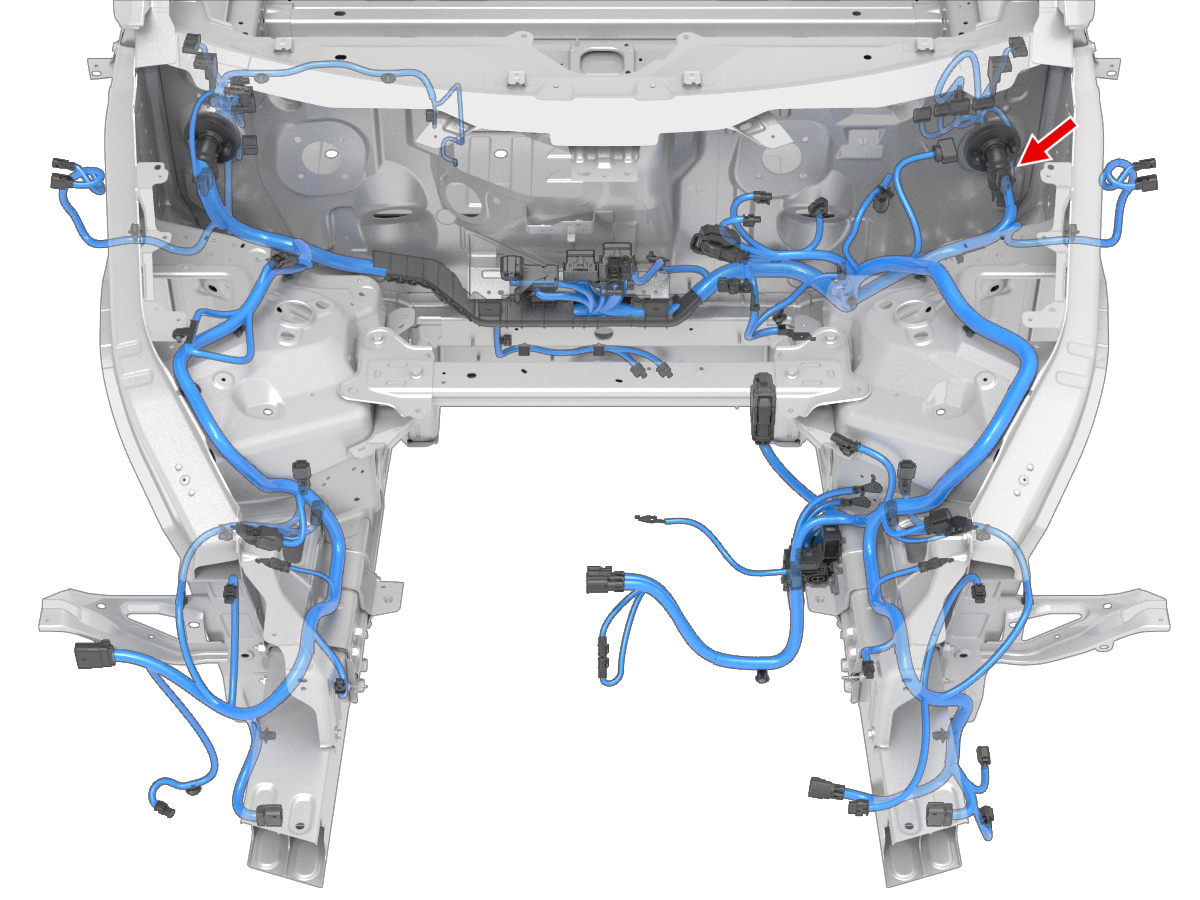

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | SUMITOMO | 8100-3623 | 0.64x0.64M | TN | 0.35 | X905F | 5 | ||
| 8 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X905F | 6 | ||
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | SUMITOMO | 8100-3623 | 0.64x0.64M | WH | 0.35 | X905F | 11 | ||
| 13 | SUMITOMO | 8100-3623 | 0.64x0.64M | RD | 0.35 | X905F | 12 | ||
| 14 | |||||||||
| 15 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN | 0.35 | X906F | 9 | ||
| 16 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE/LTBU | 0.35 | X010 | 15 | ||
| 17 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X010 | 30 | ||
| 18 | |||||||||
| 19 | |||||||||
| 20 | |||||||||
| 21 | |||||||||
| 22 |
