X271A

Tesla Part Number
1496689-00-A
Connector
DELPHI 35126375
Color
BK

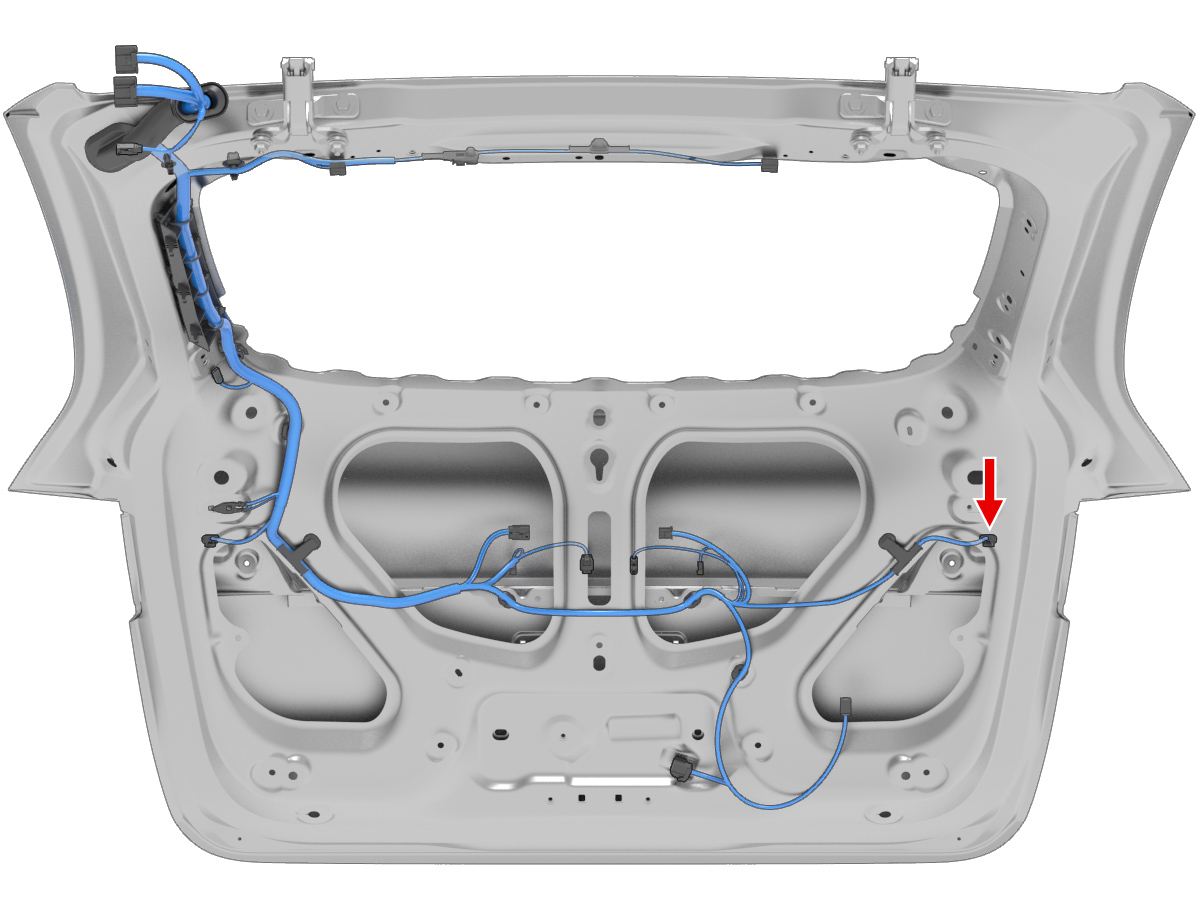

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591201.2x0.6FSBK0.35DELPHI13887349
2DELPHI139591201.2x0.6FSRD0.35DELPHI13887349X954F18
3DELPHI139591201.2x0.6FSWH0.35DELPHI13887349X954F1
4DELPHI139591201.2x0.6FSYE0.35DELPHI13887349X954F22
