X930F

Tesla Part Number

1849226-03-B

Connector

KSE K20F01214

Color

BU

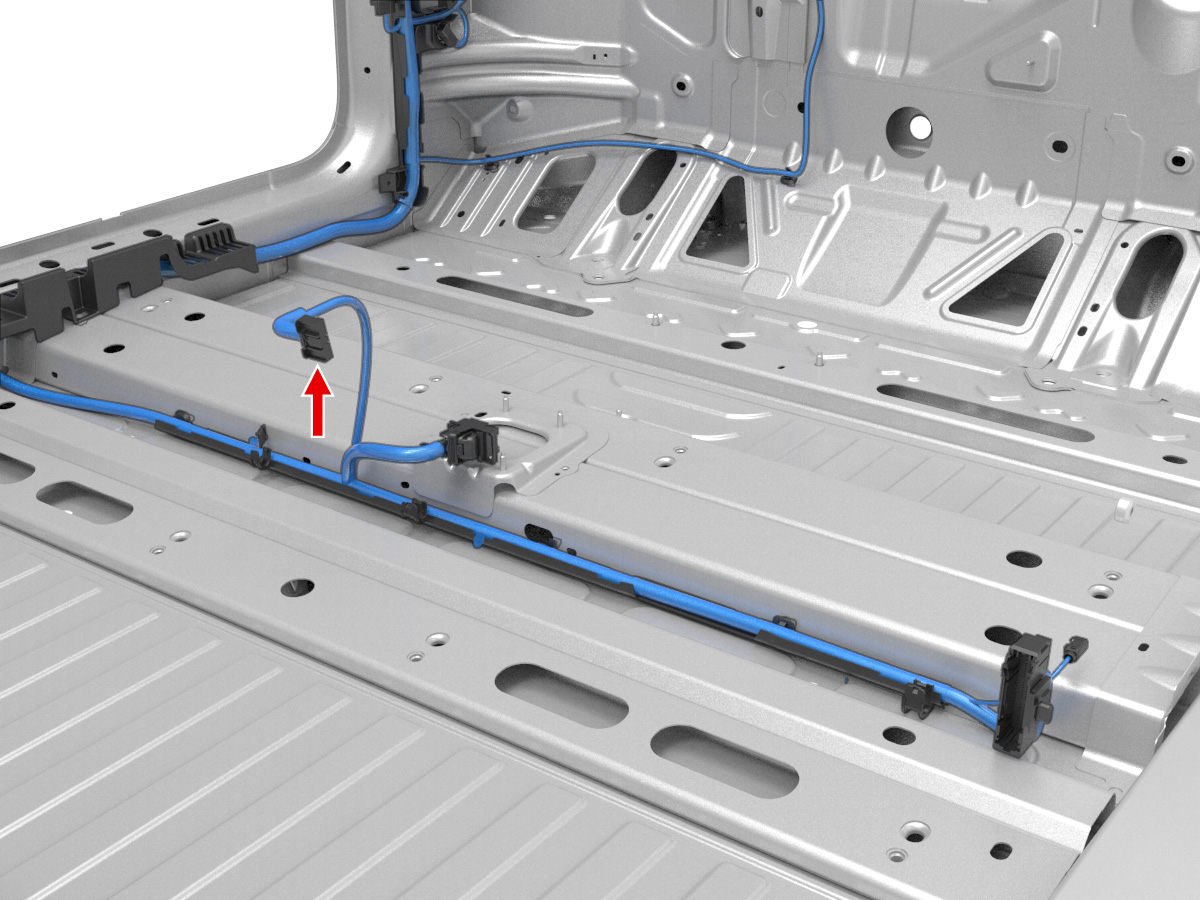

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X031	3
2	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X030A	9
3
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X030A	24
5
6	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X031	22
7	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			G031	4
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X030A	10
9	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X935M	44
10	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X935M	45
11
12	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X493	3
13	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X493	4
14	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			G031	11
15	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X031	5
16	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X497	2
17	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X497	1
18	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X030A	1
19	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X030A	2
20
21
22
23
24
25
26	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00			X031	18
