G011

Tesla Part Number

1616205-00-A

Connector

KSE K21F00501

Color

BK

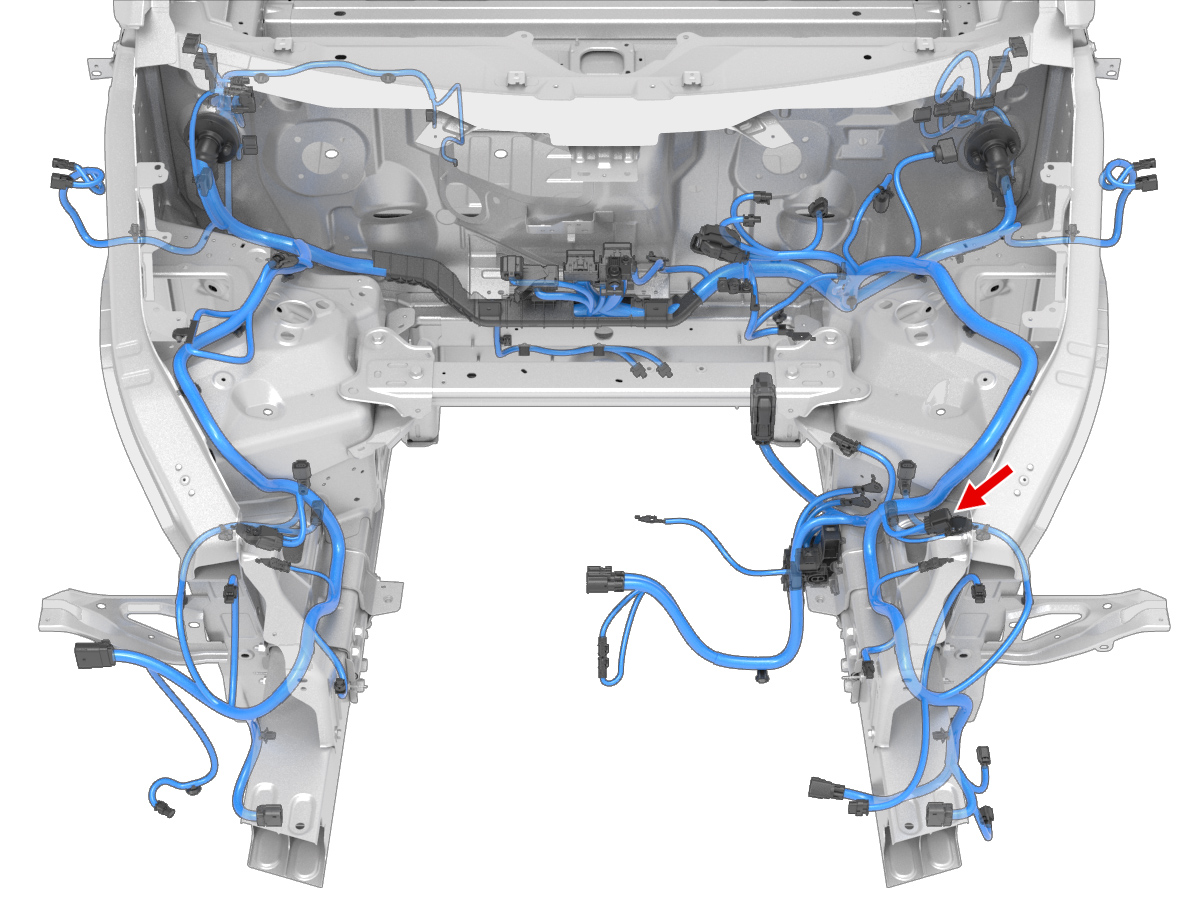

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	10780234	9.5FS	BK	10.00	DELPHI	10889241	G013	1
2	DELPHI	35138800	1.5	BK	0.35	DELPHI	13582731	X268	2
3	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X260	3
4	DELPHI	35138798	1.5	BK	1.50	DELPHI	13582732	X911F	8
