X910F_L

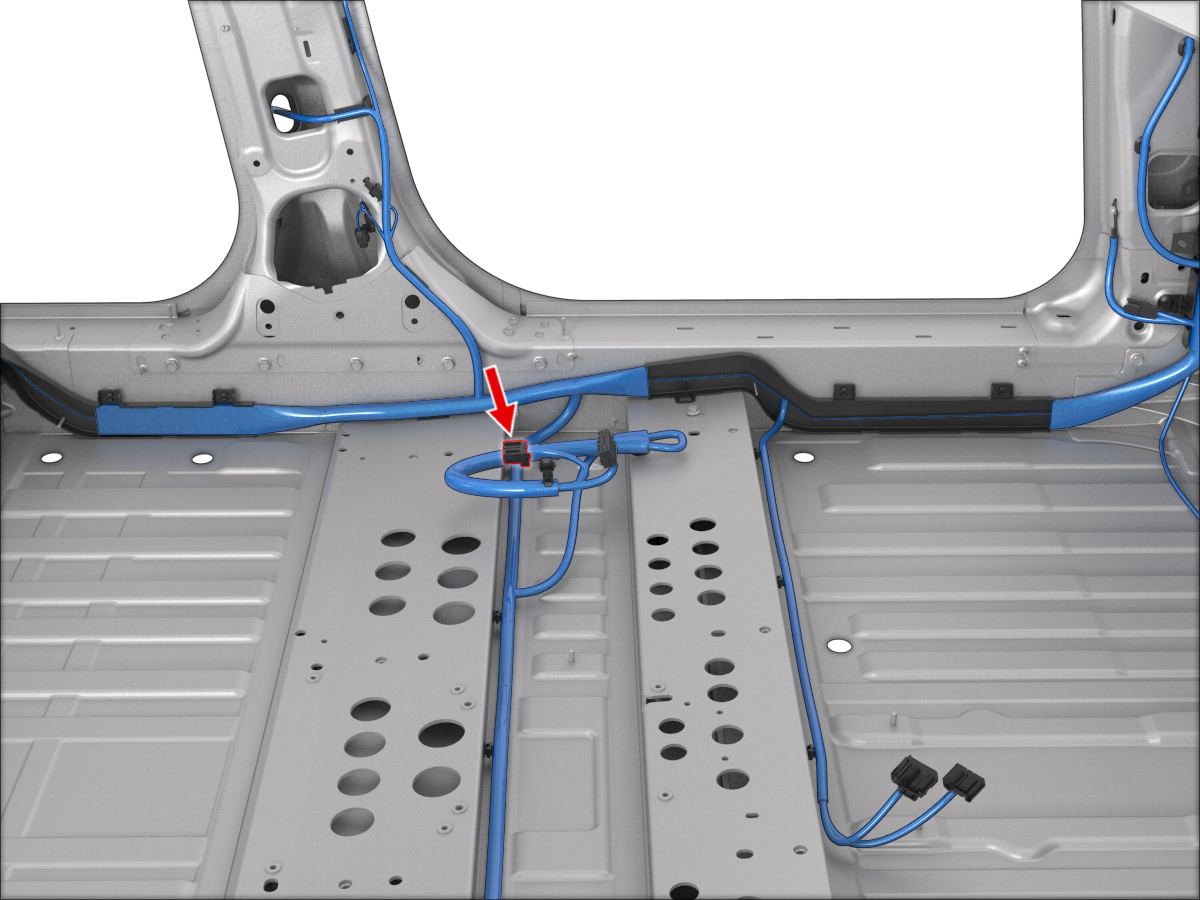

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35410019 | 1.2x0.6F | RD | 0.35 | X935M | 4 | ||
| 2 | DELPHI | 35410019 | 1.2x0.6F | WH | 0.35 | X935M | 3 | ||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | |||||||||
| 9 | DELPHI | 35410019 | 1.2x0.6F | GY | 0.35 | X954F | 9 | ||
| 10 | DELPHI | 35410019 | 1.2x0.6F | YE | 0.35 | X954F | 8 | ||
| 11 | |||||||||
| 12 | |||||||||
| 13 | DELPHI | 35410019 | 1.2x0.6F | WH | 0.35 | X200 | 31 | ||
| 14 | DELPHI | 35410019 | 1.2x0.6F | BU | 0.35 | X200 | 32 | ||
| 15 | DELPHI | 35410019 | 1.2x0.6F | BK | 0.35 | G660 | 1 | ||
| 16 |
