X448

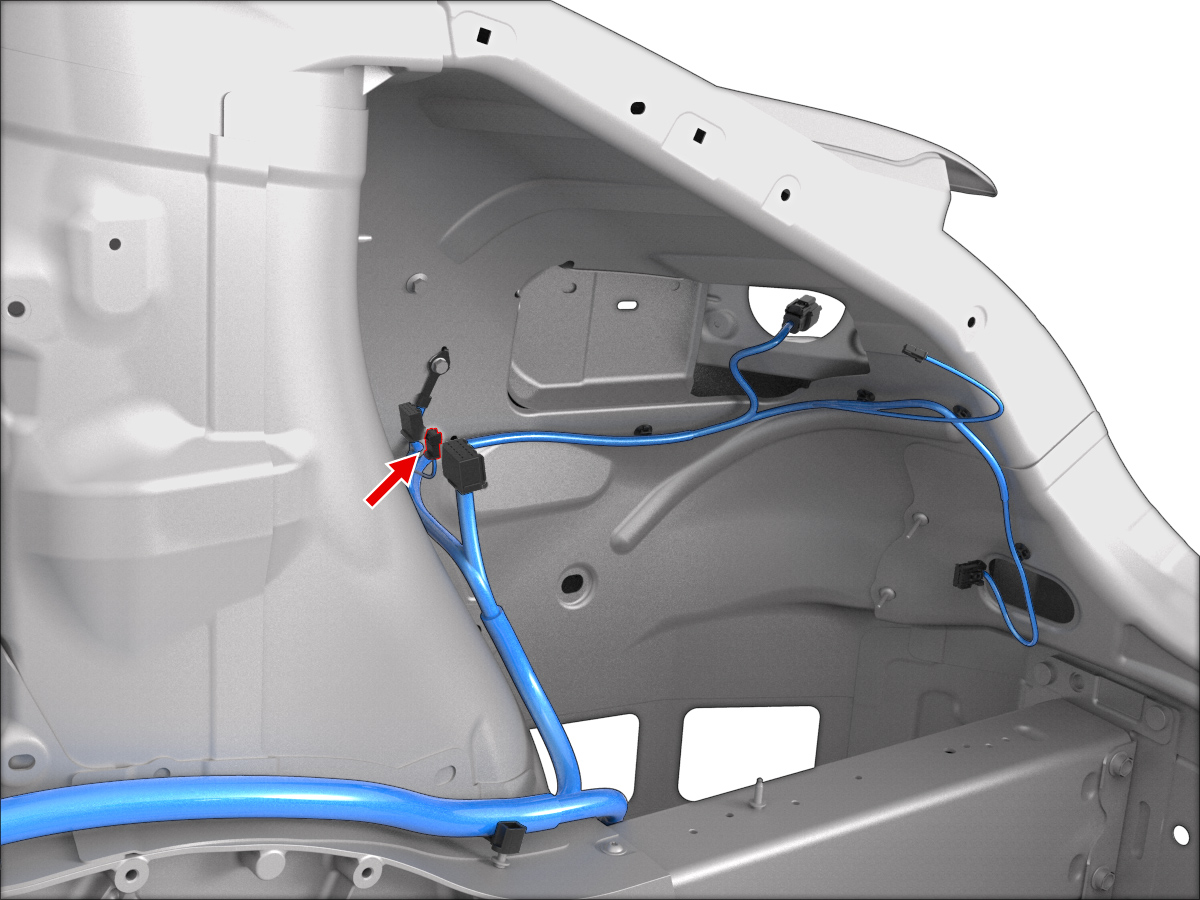

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | AMP | 2-1703930-1 | 0.50x0.40F | RD | 0.35 | X976M | 17 | ||
| 8 | AMP | 2-1703930-1 | 0.50x0.40F | GY | 0.35 | X976M | 16 |
