X051

Tesla Part Number

1506906-01-A

Connector

SUMITOMO 6098-8975

Color

GY

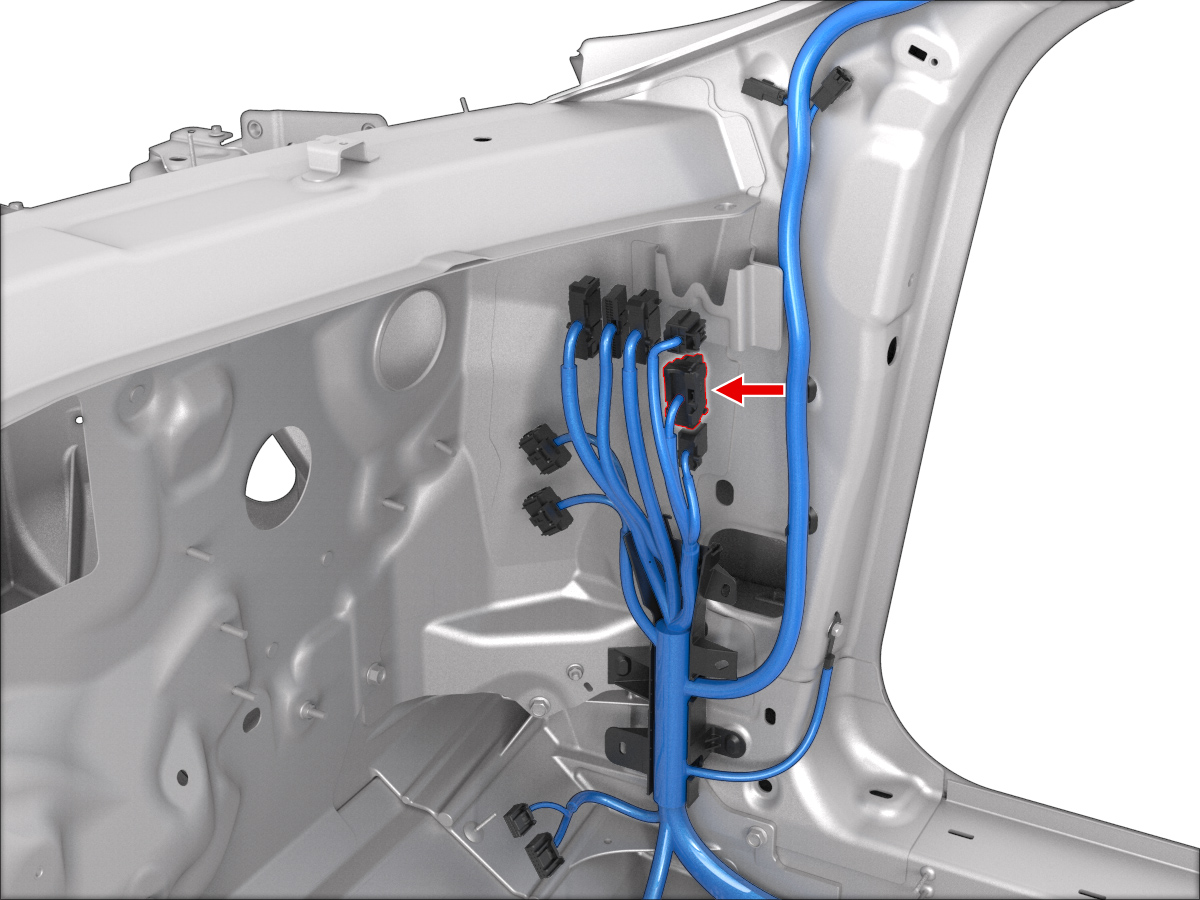

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2
3
4	SUMITOMO	8240-0214	1.5x0.64F	BN	1.50			X447	2
5	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X447	1
6
7
8
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X453	4
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X453	3
11	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X453	9
12	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X453	10
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X454	9
14	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X454	10
15
16
17
18
19
20
21
22
23
24	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X075	1
25
26
27	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X988F	13
28	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X988F	14
29	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X454	14
30	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X454	13
31
32
33
34
35
36
37
38
39
40	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X909M	4
41	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X909M	14
42	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X477	1
43	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X291	1
44	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X921M	4
45	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X921M	11
