X830

Tesla Part Number
1610835-02-B
Connector
ROSENBERGER AMZW01-000-C
Color
BU

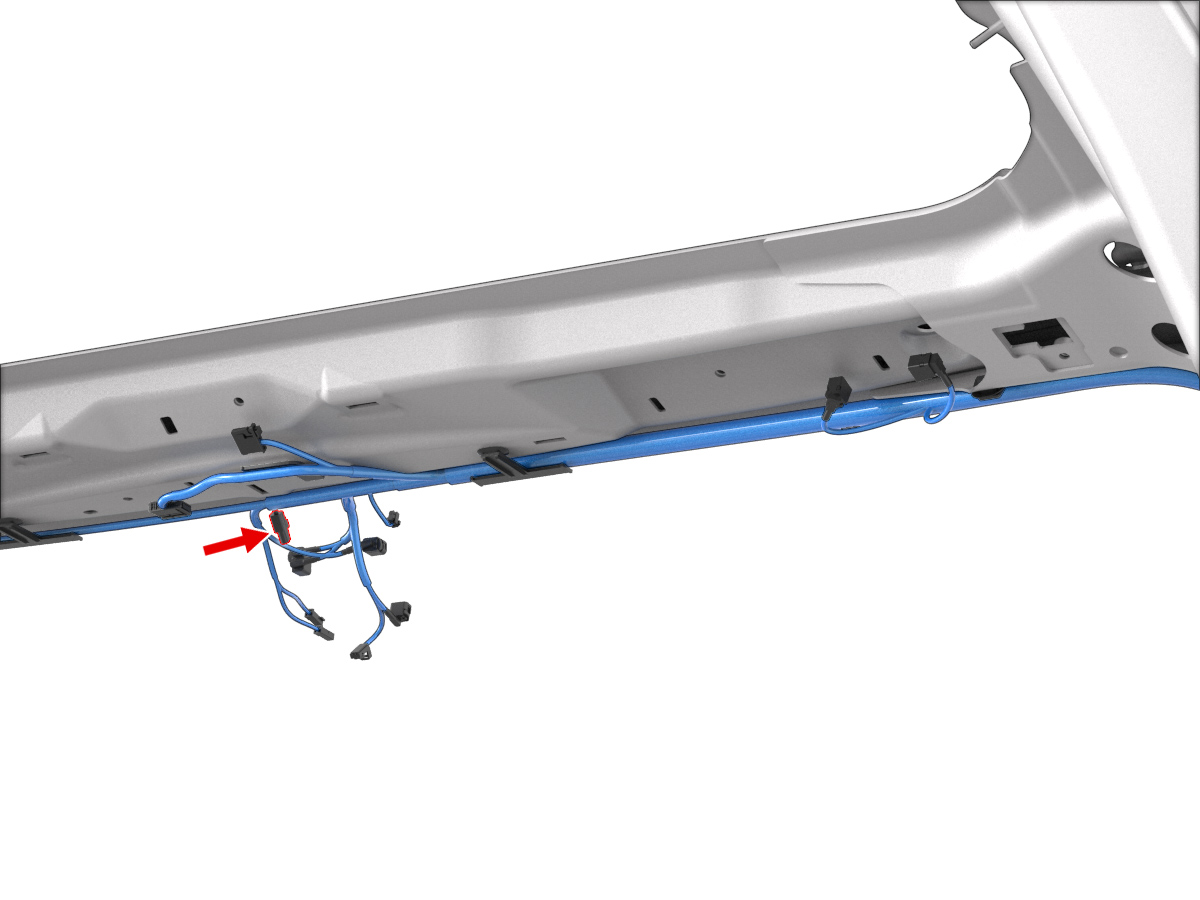

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGERAMK18A-1M4Z5COAXBKD302X8331
